Product Descriptions

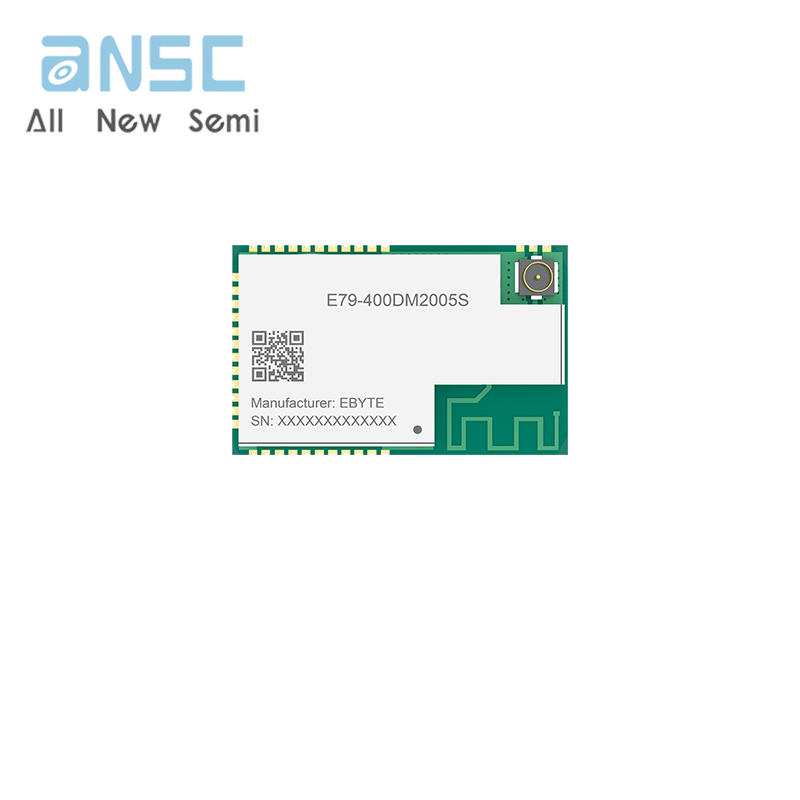

Based on TI CC1352P chip, E79-400DM2005S is a dual-band ARM-based RF SoC Moduledesigned by Ebyte, with max transmitting power of 20dBm at SUB-lGHz and 5dBm at 2.4GHzThe module integrates a high-performance wireless transceiver and a low temperature drifindustrial crystal oscillator.

Presenting all the lO interfaces of the micro-controller and integrating a powerful 48 MHzArm ® Cortex ® -M4F processor, high-performance power amplifier, powerful peripherals and upto 26 GPIOs for multi-faceted development, The module can be developed into many application fields. It is an excellent choice for wireless micro-controller for Smart home, lo'T upgrading and industrial automation etc.

The module is a hardware platform and cannot be used directly. Users need to conduct secondary development (Ebyte cancustomize standard LoRaWan and Alibaba linkWan nodes for you).

Product Features

• Built-in high-performance low-power Arm ® Cortex ® -M4F processor with clock speeds up to 48MHz;

• Rich resources, 352KB FLASH, 8OKB RAM:

• 2.1~3.8V power supply voltage, Above 3.3V can guarantee the best performance;

• Maximum transmitting power 20dBm@ SUB-1GHz/5dBm@ 2.4GHz, multi-level adjustable from software;

• Under ideal conditions, the communication distance can reach 1 5km@SUB-1GHz/120m@2.4G

• Module contains 48M high speed crystal / 32.768k low speed crystal;

• Industrial grade standard design, support long-term use from -40 to +85 °C.

• Double antennas are optional (lPEX/stamp hole), users can choose according to your own needs.

• 2 pin cITAG and JTAG debugging,

• Wireless upgrade (OTA);

• Dual-band sub-1GHz and 2.4GHz RF transceivers compatible with Bluetooth 5 and lEEE 802.15.4 PHY and MAC standards;

• Excellent receiver sensitivity:-122dBm(SimpleLink long-distance),-110dBm (50kbps), -103dBm (Low-Power Bluetooth 5 encoding).

Product Applications

• Smart grid and automatic meter reading

-water meters, gas meters and electricity meters

-heat distribution table

-gateway

• Wireless sensor network

-Remote sensor security system, positioning system

• Industry

-Asset tracking and management

Product Specifications
