Product Descriptions

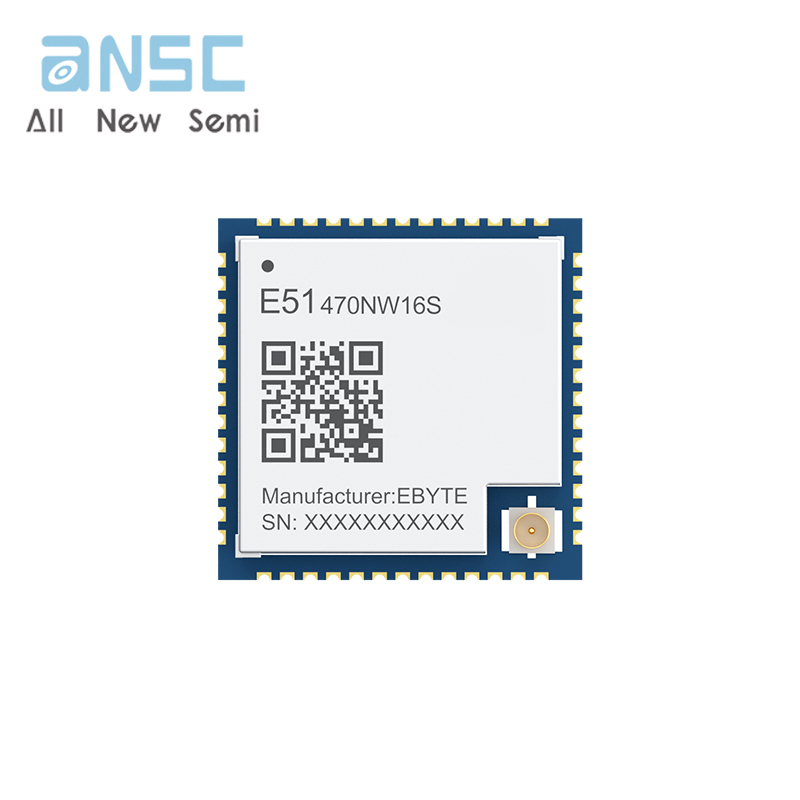

The E51-470NW16S is the ideal SoC (System on chip) hardware module for long distance, low power transmission, and it is equipped with Silicon Labs' EFR32FG25 series chip, which can achieve wireless broadcasting up to 0.3 to 2.5 kilometers in dense urban canyon environments with minimal data loss. It also supports the orthogonal Frequency division multiplexing modulation (OFDM) technology introduced in Wi-SUN Field Local Area Network (FAN), which can achieve high data bandwidth of up to 3.6 Mbps. As data rates increase, the large networks required for applications such as smart cities and smart utilities can be realized, where nodes can be in the thousands.

The E51-470NW16S wireless communication module has small dimensions, rich interface resources, and supports users' secondary development, which can be widely used in the Internet of Things industry.

Product Features

Low power wireless system on chip

 High-performance 32-bit 97.5MHz ARM Cortex®-M33 with DSP instructions and floating-point unit for efficient signal processing

 Up to 1152 kB of flash program memory

 RAM Up to 256 kB of data memory

 Up to +16 dBm transmit power

A wide selection of MCU peripherals

 Leads to up to 35 generic I/O pins with output state hold and asynchronous interrupt capabilities

 analog-to-Digital Converter (ADC)

 12-bit@1 Msps

 16-bit@76.9 ksps

 2 × Analog Comparator (ACMP)

 2-channel digital-to-Analog Converter (VDAC)

 Low Energy Sensor Interface (LESENSE)

 16-channel DMA controller

 12-channel Peripheral Reflection System (PRS)

 6 16-bit timers/counters with 3 compare/capture /PWM channels

 2 32-bit timers/counters with 3 compare/capture /PWM channels

 32 bit real-time counter  24-bit low energy timer for waveform generation

 2 x watchdog timer  1 USB2.0 full speed port (device only)

 5 x EUSART (Upgraded Universal Synchronous/Asynchronous Receiver/Transmitter)

 EUSART0 runs in EM2

 SPI and IrDA are supported by EUSART

Product Applications

Wi-SUN (Wireless Intelligent Ubiquitous Network) is the leading IPv6 sub-1 GHz grid technology for smart city and smart utility applications. Wi-SUN delivers intelligent ubiquitous networks to service providers, utilities, municipal/local governments and other enterprises by enabling interoperable, multi-service and secure wireless mesh networks. Wi-SUN can be used for large-scale outdoor iot wireless communication networks in a wide range of applications covering line-powered and battery-powered nodes.

Silicon Labs' EFR32FG25 family of chips is certified by the Wi-SUN Alliance, a global industry association dedicated to seamless LPWAN connectivity. Wi-SUN is built on an open standard Internet Protocol (IP) and API foundation that enables developers to extend existing infrastructure platforms to add new features. Wi-SUN is designed to extend long range capabilities, high data throughput and IPv6 support to simplify the wireless infrastructure for industrial applications and smart city evolution.

 Smart City/Municipal Infrastructure；

 Industrial applications/Building automation/Distribution automation；

 Building security system;

 Smart home;

 Smart lighting/Street lighting;

 Advanced Meter Reading Architecture (AMI);

 Smart meter/Smart metering.

Product Specifications

Actual product photos
