Product Descriptions

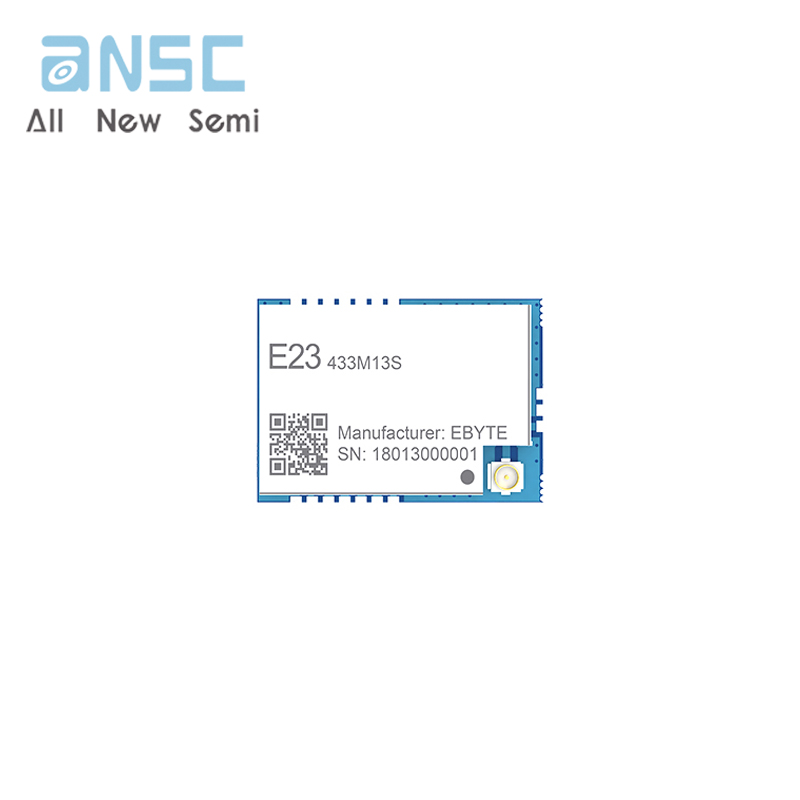

E23-433M13S is a 20mW wireless transceiver module, operating at433MHz with IPX RF interface. Module features ultra-low receiving current(Only 3mA) and adopts 12.8MHz crystal oscillator.

E23-433M13S is based on the originally imported RF chip SX1212 from Semtech, It features industrial class components, lead-free process, stableperformance. It applies SMD with professional hardware design. It isconvenient for all kinds of embedded development. The receiving power consumption is ultra low around 3mA which makes various applicationspossible.

E23-433M13S is without factory firmware, users need to conduct a secondary development based on their own demands.

Product Features

• Ultra low receiving current of 3mW, good for low power development;

• Ultra small size of 16x22.4mm;

• Maximum transmitting power of20mW, good for battery powered application;

• Communication distance tested is up to 800m;

• Support the global license-fee 433MHz;

• Support air date rate of2k~500kbps;

• Independent FlFO of 64bytes for transmitting and receiving;

• Support 2.1V~3.6V power supply, power supply over 3 3V can guarantee the best performance ;

• Industrial grade standard design, support -40 ~+85 'C for working over a long time ;

• PCB and IPEX antenna, good for secondary and embedded development;

• Anti-interference and good neighboring channel selectivity are good for application in dense environment.

Product Applications

• Smart Home and Industrial Sensors;

• Wireless toy and remote control;

• Wireless alarm security system;

• Building automation solutions;

• Wireless PC peripherals;

• Tire pressure monitoring;

• Label Reader;

• Wireless industrial-grade remote control;

• Health care products;

• Advanced Meter Reading Architecture(AMl);

• Automotive industry applications.

Product Specifications
