Product Descriptions

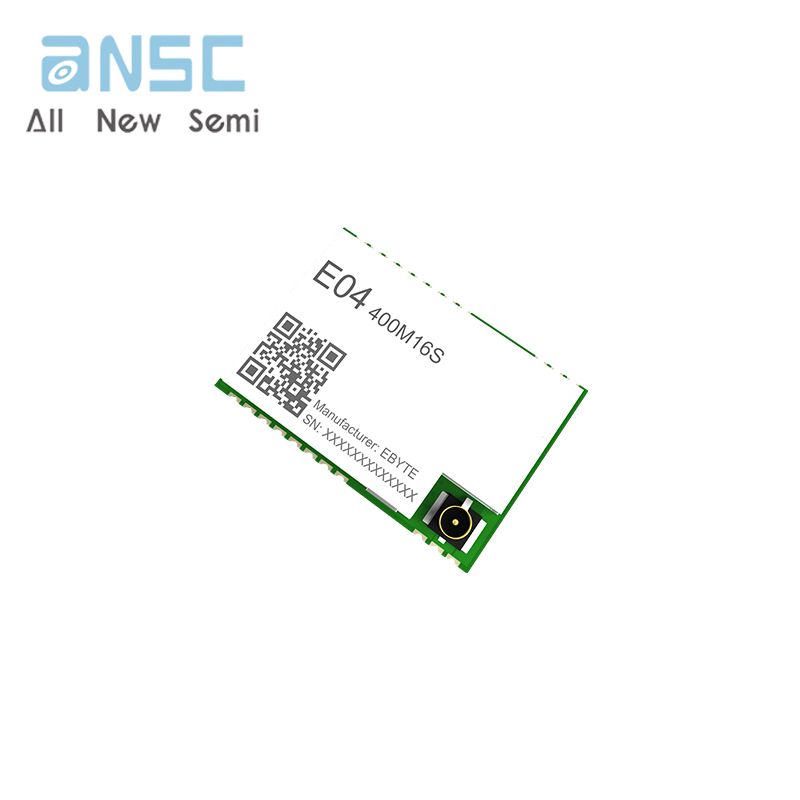

The E04-400M16S is based on STMicroelectronics' S2-LPQTR chip as the core, it is an ultra-small size chip wireless transceiver RF module independently developed by Ebyte, working in the 433M/470M frequency band, with a maximum transmission power of 16dBm.

Since this module is a SPI pure hardware radio frequency transceiver module, it needs to be driven by MCU.

Product Features

 Ultra-small size, only 14x20mm;

 The communication distance can reach 1km under ideal conditions;

 The maximum transmit power is 16dBm;

 The receiving current (RX) is as low as 7mA, and the transmitting current (TX) is as low as 10mA @10dBm;

 Low power consumption, suitable for battery-powered applications;

 Support 433M/470M frequency band;

 Support multiple debugging modes of 2(G)FSK, 4(G)FSK, OOK, ASK;

 Support 2.5V～3.6V power supply, power supply greater than 3.3V can guarantee the best performance;

 Industrial-grade standard design, supporting long-term use at -40～85℃;

 IPEX interface and stamp hole are optional, which is convenient for users to develop and integrate.

Product Applications

 Smart meeting

 Wireless alarm system

 Smart door lock

 Building automation

 Industrial acquisition and control

 Intelligent lighting system

Product Specifications
