Product Descriptions

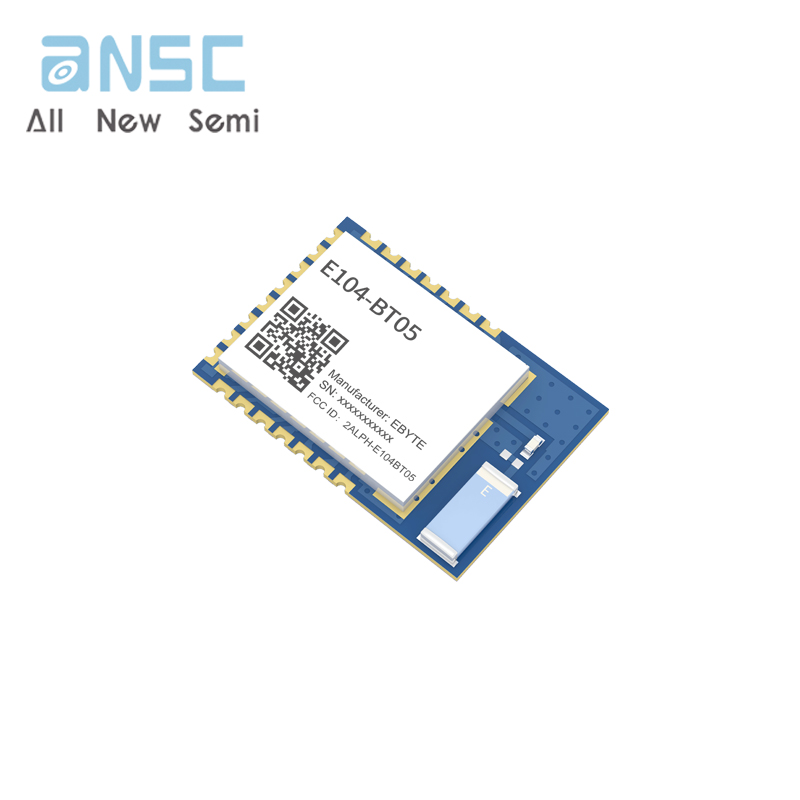

E104-BT05 is a serial-to-BLE Bluetooth slave module based on Bluetooth protocol version 4.2. It features with small size, low power consumption and works in 2.4GHz band.

E104-BT05 module is based on TLSR8266 chip, which uses AT commands to set parameters, and it is easy and fast to operate. The module only supports Bluetooth slave mode. The module supports low power broadcast, data transparent transmission, air configuration, IO port level reading, IO port level setting and variable frequency PWM output.

Modules can be widely used in intelligent wearable device, home automation, home security, personal health care, Smart home appliance, accessories and remote control, automobile, lighting, industrial Internet, intelligent data acquisition, intelligent control etc. Maximum support baud rate 256000bps data transmission.

Product Features

 Support Bluetooth BLE 4.2 Protocol;

 Support adjustable Bluetooth packet length;

 Support 3 operating modes: configuration, transparent transmission and sleep mode;

 Support boot-up automatic broadcasting, automatic connection;

 Support Beacon and IBeacon broadcast;

 Support UART wake-up function;

 Support MAC address binding;

 Support serial port transparent transmission;

 Support multiple serial mode and baud rate;

 Support custom 16-bit UUID and 128-bit UUID;

 PCB board antenna without external antenna;

 Support Bluetooth parameter configuration over air;

 Maximum communication distance is: 75m;

 Support ultra-low power sleep, synchronous broadcasting;

 Support IO port level reading (new features);

 Support IO port level output (new features);

 Support PWM output (new features) .

Product Applications

 Wireless Sensor for Meter Reading

 Smart home

 Industrial remote control and telemetry

 Intelligent Building

 Automatic Data Acquisition

 Health sensor

 Intelligent Wearing device

 Intelligent Robot

 Wireless Sensor

 Electronic label

 Intelligent Control

Product Specifications
