Product Descriptions

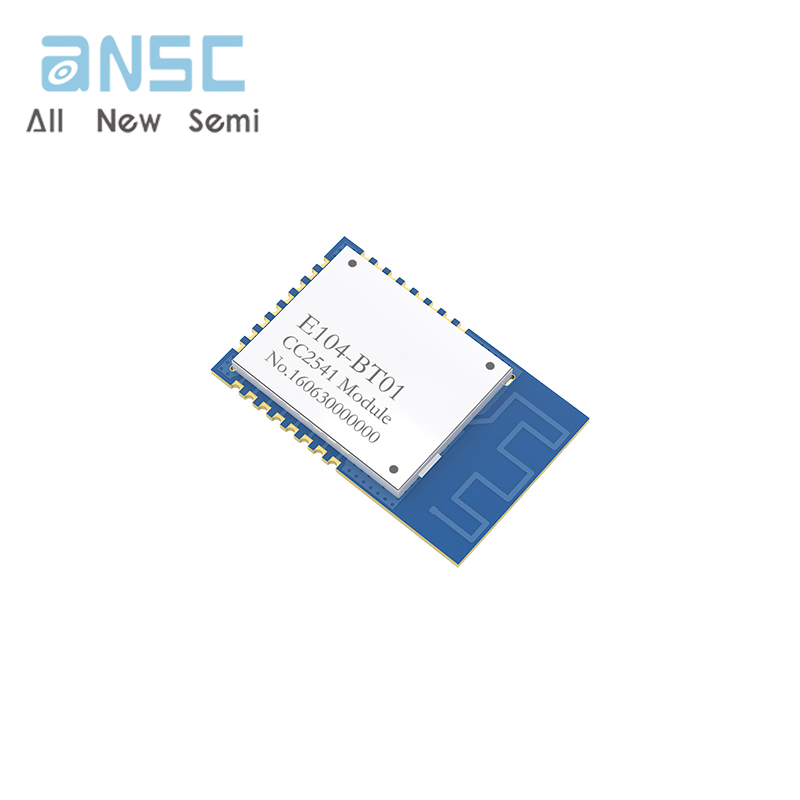

E104-BT01 is a SMD Bluetooth wireless module, which is SMDtype, pin pitch is 1.27mm. the module features with high PerformancePCB antenna. This module can use the serial port to send and receiveBluetooth data, which reduces the threshold of Bluetooth applications,it also supports secondary development ofusers.

The E104-BT01 uses the CC2541 RF chip from Texas Instruments(TI). The chip integrates the 805l microcontroller and wirelesstransceiver, and it is suitable for the BLE protocol. The CC2541 is atrue on-chip system(SoC)solution optimized for low power consumption and proprietary 2.4GHz applications. The module leads all the IO ports of the MCU, and integrates thetransparent transmission function, and master-slave integration, ready to use. ulti-faceted development is possible. lsupports serial port command to configure parameters and functions, widely used in wearable devices, home automationhome security, personal health care, smart home appliances, accessories and remote control, automotive, lighting,industrial Internet and other fields.

The E104-BT01 module supports the Bluetooth 4.0 protocol. After simple configuration, it can establish a Bluetoothconnection with the master which supports the Bluetooth 4.0 protocol, to achieve transparent transmission of serial data.

Product Features

The module is a master-slave integration, which can realize the connection point-to-point and transparent transmission between modules;

The slave supports normal broadcast and iBeacon broadcast, and the broadcast content can be dynamicallyconfigured to realize personal ized broadcast requirements of users;

Supports broadcast snifiing, mode, broadcast information synchronous printing to achieve "broadcast capture"function;

Supports data indication function for fast wake-up of low-power application MCU;

Supports MAC address binding between modules to achieve directional connection in multiple slave environments.

Supports AT command to facilitate MCU user to configure parameters;

Supports parameters air configuration to realize remote parameters update for APP user ;

Supports low power mode for battery power supply;

Supports GPlO input and output function to realize APP wireless switch control;

Support status printing, real-time feed back running status by serial port, easy for MCU application design;

Simplify pins connection, all operations can be completed with serial port, supports secondary development.

Product Applications

Wireless meter reading, wireless sensing!Smart home,

Industrial remote control, telemetry:

Smart buildings:

Automatic data collection,

Health sensor,

Electronic tags,

Smart wearable device:

Smart robot.

Product Specifications
