Product Descriptions

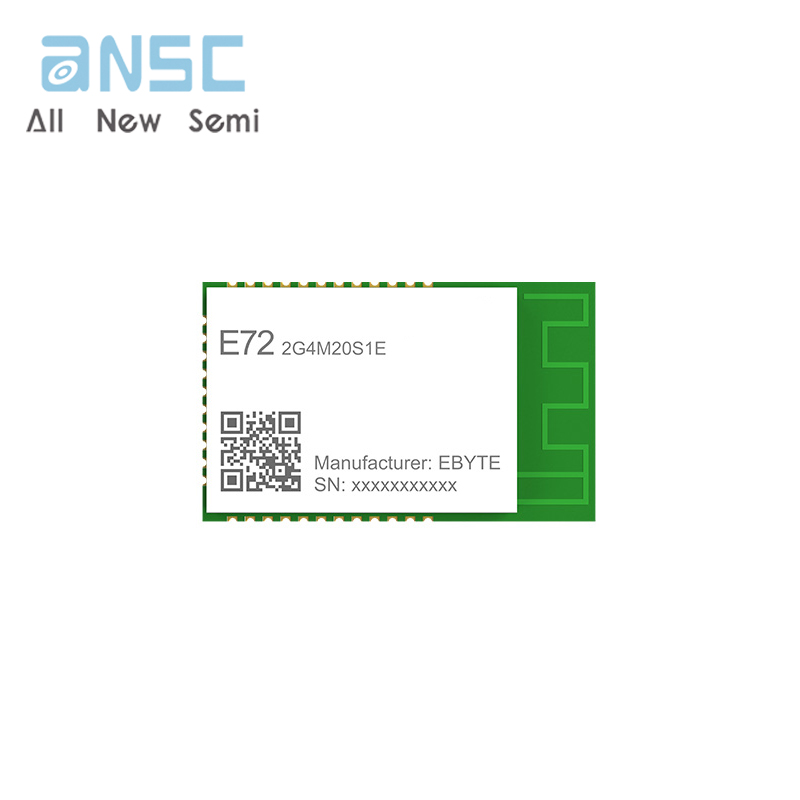

E72-2G4M20S1E is a multi-protocol 2.4GHz SMD wireless system-on-chipmodule independently developed by Tl based on CC2652p produced by Tl. Thetransmit power is 20dBm.It integrates an ARM microcontroller andhigh-performance wireless transceiver.Itusesindustrial-grade48MHzhigh-precision low-temperature. Floating crystal oscillator.

The module leads all the lO ports of the single-chip microcomputer. The chipcomes with a powerful 48 MHz Arm ® Cortex ® -M4F processor, an internal integrated power amplifier, powerful peripherals and up to 26 GPlOs, which can be developed in multiple directionsCC2652P is a wireless microcontroller with great potential to become the future smart fiurniture, Internet of Thingstransformation.and industrial automation.

Because this module is a pure hardware SoC module, users need to program it before use.

Product Features

Built-in high-performance low-power Arm ® Cortex ® -M4F processor, clock speed up to 48MHz；

Rich resources,352KB FLASH, 80KB RAM；

Support 1.9 ~ 3.8V power supply, power supply greater than 3 3V can ensure the best performance；

Transmitting power 20dBm；

Under ideal conditions, the communication distance can reach 700m；

The module contains 48M high-speed crystal/32.768k low-speed crystal;

Industry standard design, support long-term use at -40~+85°C；

2 pin cITAG and JTAG debugging

Support wireless upgrade (OTA)

Product Applications

Industrial Transportation-Asset Tracking

Factory automation and control

Medicine

Electronic Point of Sale (EPOS)-Electronic Shelf

Label (ESL)

Product Specifications
