Product Descriptions

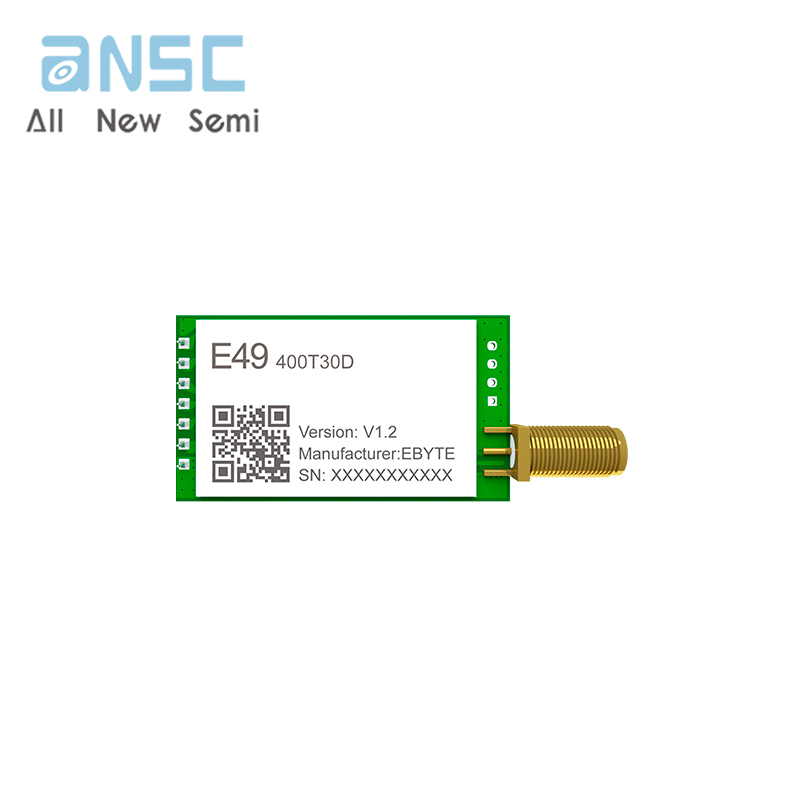

E49-400T30D is a super cost-effective wireless data transmission modulelaunched by Chengdu Ebyte. It has 4 working modes. Each transmission methodhas its own characteristics and can be applied to various application scenarios.E49-400T30D can perfectly support industrial-grade applications, and hasundergone rigorous testing at the factory to ensure its industrial reliabilityand batch consistency.

E49-400T30D supports a maximum transmit power of 30dBm. Users can set lower output power to save power consumption. The module works in the 433MHz frequency band, with Ti level output, and is compatible with 3.3V I0 port voltage.

The module has data encryption function, The data transmitted by the module in the air has randomness. Throughstrict encryptlon and decrvption a goriti, the data interception is meaning ess, the probabi ity of interferenceis reduced, and the reliability and transmission efficiency are improved. And it is a lowcost wireless serial transceiver module.

Product Features

The measured communication distance can reach 5.6km；

The maximum transmit power is 30 dB, and the software is multi-level adjustable；

Support global license-free ISM 433MHz frequency band ;

Support data transmission rate of l.2Kbps~200Kbps;

Support low power consumption mode, suitable for battery applications;

Support advanced ultra-narrowband GFSK modulation;

Support 2.6v~5.5V power supply;

Industrial-grade standard design, support long term use at -40~85°C;

Support stamp hole and IPEX interface, users can choose to use according to their own needs.

Product Applications

Wearable devices;

Smart home and industrial sensors, etc.,

Security system, positioning system;

Wireless remote control, drone;

Wireless game remote control;

Healthcare products;

Wireless voice, wireless headset;

Automotive industry applications.

Product Specifications
