Product Descriptions

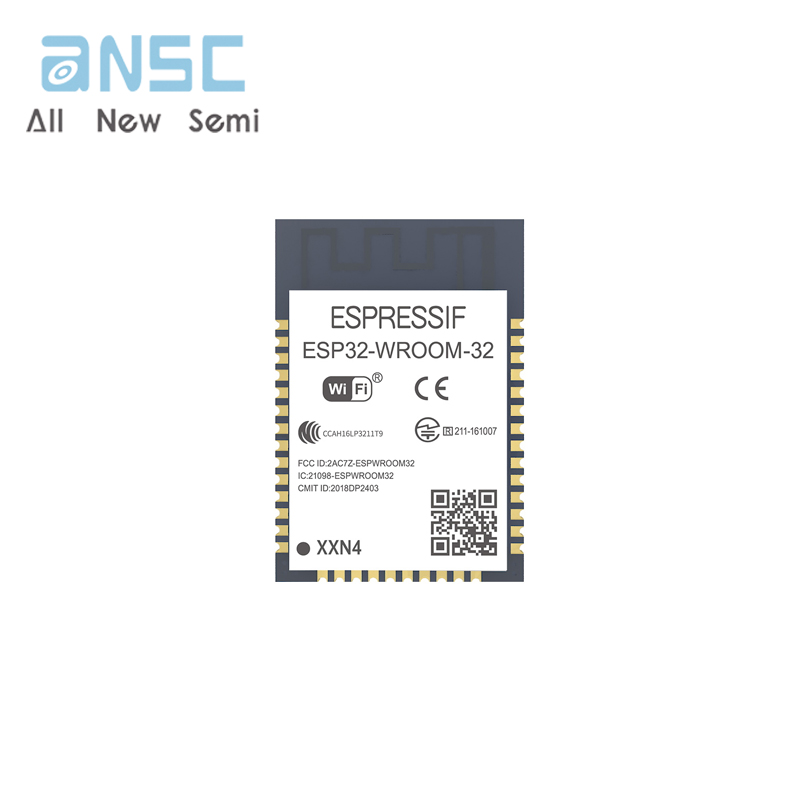

ESP32-WROOM-32 (ESP-WROOM-32) is a powerful, generic Wi-Fi+BT+BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.
At the core of this module is the ESP32-D0WDQ6 chip*. The chip embedded is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the clock frequency is adjustable from 80 MHz to 240 MHz. The user may also power off the CPU and make use of the low-power co-processor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C.
Product Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-ESP32-WROOM-32 | |
| Wi-Fi | Standards | FCC/CE/CITELECKCCISRRC/NCC |
| Protocols | 802.11 b/gin/e/i (802.11n up to 150 Mbps) A-MPDU and A-MSDU aggregation and 0.4 us guard in-terval support | |
| Frequency range | 2.4~2.5 GHZ | |
| Bluetooth | Protocols | Bluetooth v4.2 BR/EDR and BLE specification |
| Radio | NZlF receiver with -98 dBm sensitivity | |
| Class-1,class-2 and class-3 transmitter | ||
| AFH | ||
| Audio | CVSD and SBC | |
| Hardware | Module interface | SD Card,UART,SPI.SDIO.I2C,LED PWM, Motor PWM.I2S.I2C.IR |
| GPlO,capacitive touch sensor, ADC, DAC, LNA pre-amplifier | ||
| On-chip sensor | Hall sensor, temperature sensor | |
| On-board clock | 40 MHz crystal | |
| Operating voltage | 2.3~3.6V | |
| Operating current | Average:80 mA | |
| Operating temperature range | -40°C~+85°C | |
| Ambient temperature range | Normal temperature | |
| Package size | 18+0.2 mm x 25.5+0.2 mm x 2.8+0.15 mm | |
| Software | Wi-Fi mode | Station/SoftAP/SoftAP+StationP2P |
| Security | WPA/WPA2/WPA2-Enterprise/WPS | |
| Encryption | UARTDownload/OTA(vianetwork)/downloadandwrite firmware via host | |
| Firmware upgrade | Supports Cloud Server Development / SDK for custom firmware development | |
| Software development | IPV4.IPV6.SSL. TCP/UDP/HTTP/FTP/MQTT | |
| Network protocols | Normal temperature | |
| User configuration | AT instruction set, cloud server, Android/iOS app |
