Product Descriptions

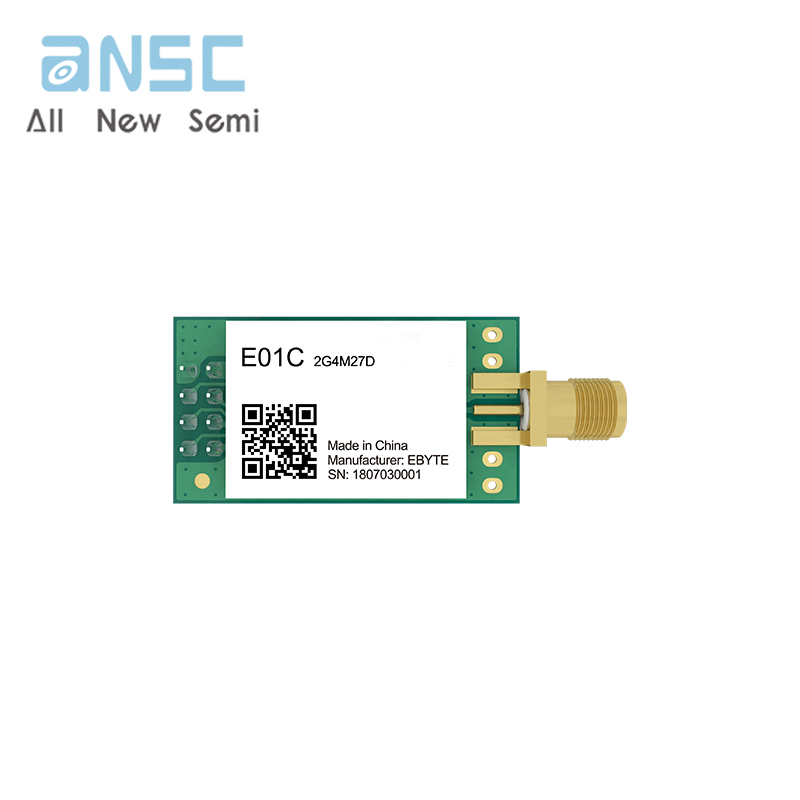

The E01C-2G4M27D is a 2.4GHz DIP wireless module with a maximum transmit power of 500mW based on the domestic Si24R1.

The module has built-in power amplifier (PA) and low-noise amplifier (LNA), which makes the maximum transmitting power reach 500mW, and the communication stability is greatly improved compared with the products without power amplifier and low-noise amplifier, and the industrial-grade high-precision 16MHz crystal is used.

As the E01C-2G4M27D is a pure RF transceiver module, it needs to be driven by MCU or use a special SPI debugging tool.

Product Features

 Maximum transmitting power of 27dBm (about 500mW), adjustable at multiple software levels.

 Communication distance up to 5km under ideal conditions.

 Support for the global license-free ISM 2.4 GHz band.

 Support for 2Mbps, 1Mbps and 250kbps air rates.

 125 communication channels to meet the needs of multi-point communication, packet, frequency hopping and other applications.

 Connection to MCU via SPI interface at 0 to 10Mbps.

 Professional RF shield, anti-interference and anti-static.

 Support 2.5 ~ 5.5V power supply, greater than 3.3V power supply can ensure the best performance.

 4 fixing holes reserved for module welding and fixing.

 SMA-K male threaded internal hole, can easily connect coaxial cable or external antenna The enhanced ShockBurst.

 Enhanced ShockBurst, can interoperate with Nordic's nRF24L01+, nRF2401 and other 2.4G product series.

Product Applications

 Smart homes and industrial sensors, etc..

 Security systems, positioning systems.

 Wireless remote control, drones.

 Wireless game remote controls.

 Health care products.

 Wireless voice, wireless headphones.

 Automotive industry applications.

Product Specifications
