Product Descriptions

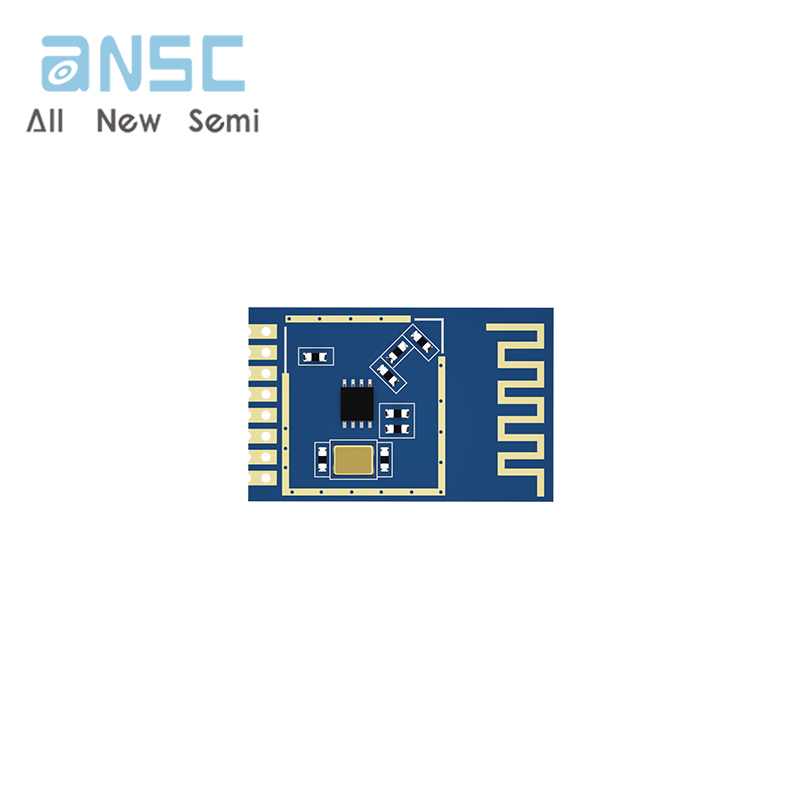

E01C-2G4M11S is a small size, 2.4GHz SMD wireless module with PCB antenna based on the core of Nanjing CSM Ci24R1, which uses industrial grade high precision 16MHz crystal.

Since E01C-2G4M11S is pure RF transceiver module, it needs to use MCU driver or special SPI debugging tool.

Product Features

 Maximum transmit power of 11dBm, which can meet the battery power and greatly expand the communication distance.

 Communication distances of up to 120m under ideal conditions.

 Support for the global license-free ISM 2.4 GHz band.

 Support for 2 Mbps, 1 Mbps and 250 kbps air rate.

 126 communication channels to meet the needs of multi-point communication, grouping, frequency hopping and other applications.

 Connection to MCU via 2-Pin hardware SPI interface at 0 to 10 Mbps.

 Professional RF shield, anti-interference and anti-static.

 Industrial grade standard design, supporting long time use at -40 to +85°C.

 Self-contained PCB onboard antenna, no need for external antenna.

Product Applications

 Wearable devices.

 Smart homes and industrial sensors, etc..

 Security systems, positioning systems.

 Wireless remote control, drones.

 Wireless game remote controls.

 Health care products.

 Wireless voice, wireless headphones.

 Automotive industry applications.

Product Specifications
