Product Descriptions

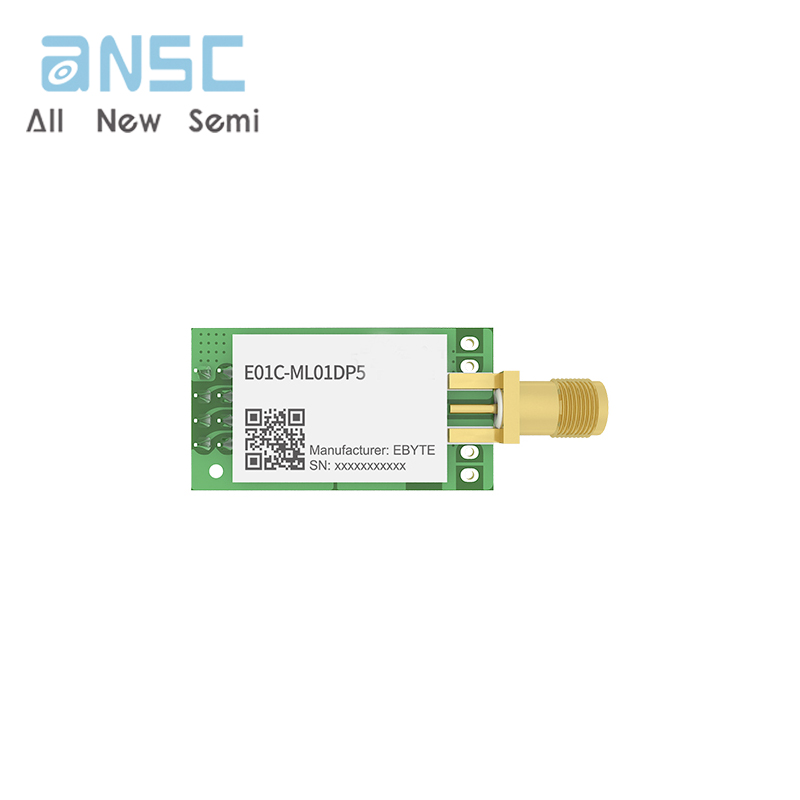

E01C-ML0lDp5 is a 2.4GHz direct plug-in wireless module with a maximum transmit power of 100mW based on the domestically-made SI24R1.

Built-in power amplifier (PA) and low noise amplifier (LNA) on the original basis, so that the maximum transmission power reaches 100mW, while the receiving sensitivity is further improved, and the overall communication stability is compared with no power amplifier and low noise amplifier. The products have been greatly improved.The product has obtained the use of industrial-grade high-precision 16MHz crystaloscillator.

Since E0lC-ML0lDP5 is a pure radio frequency transceiver module, it needs touse MCU driver or use a dedicated SPl debugging tool.

Product Features

The maximum transmission power is 100mW, and the software is multi-level adjustable；

Under ideal conditions, the communication distance can reach 2.5km；

Professional radio frequency shield, anti-interference and anti-static；

Support the global license-free ISM 2.4GHz firequency band；

Support 2Mbps, lMbps and 250kbps air rate；

125 communication channels to meet application requirements such as multipoint communication, grouping, andfrequency hopping;

Connect with MCU through SPl interface, rate 0~10Mbps；

Support 2.0~3.6V power supply, power supply greater than 3 3V can guarantee the best performance,

Reserve 4 fixing holes to facilitate the welding and fixing of the module；

SMA-K external threaded inner hole for easy connection of coaxial cable or external antenna.

Product Applications

Smart home and industrial sensors, etc.,

Security system, positioning system；

Wireless remote control, UAV；

Wireless game remote control;

Healthcare products;

Wireless voice, wireless headset;

Automotive industry applications.

Product Specifications
