Product Descriptions

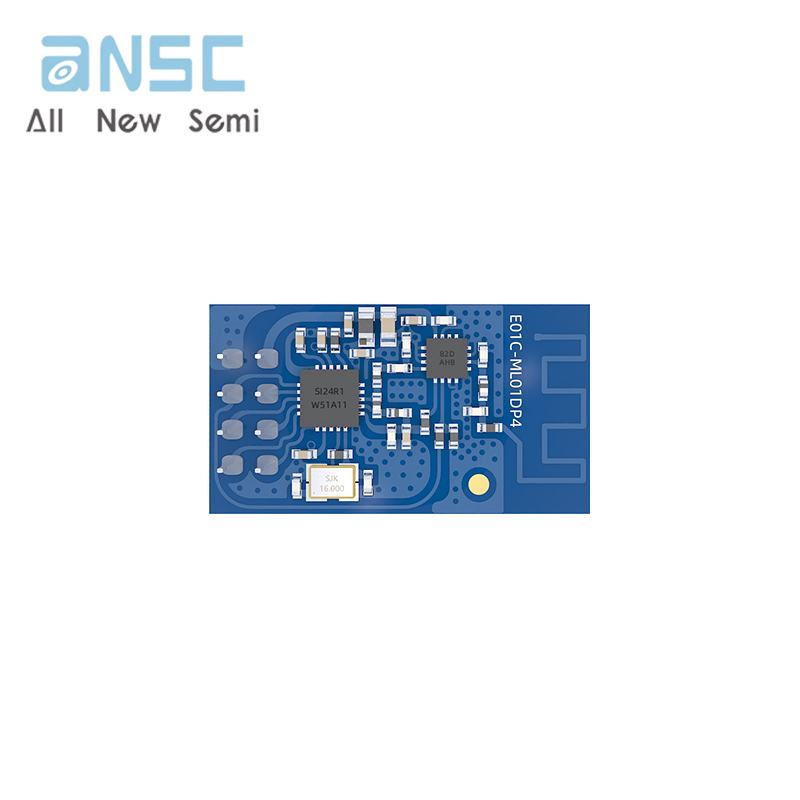

E01C-ML01DP4 is a 2.4GHz direct plug-in wireless module with a maximum transmission power of 100mW and a built-in PCB antenna based on the domestic Sl24R1.

Built-in power amplifier (PA) and low noise amplifier (LNA) on the original basisso that the maximum transmission power reaches 100mW, while the receivingsensitivity is further improved, and the overall communication stability is comparedwith no power amplifier and low noise amplifier. The products have been greatlyimproved.

This product uses industrial-grade high-precision 16MHz crystal oscillator.

Because E0lC-ML0lDP4 is a pure radio frequency transceiver module, it needs touse MCU driver or use a dedicated SPl debugging tool.

Product Features

The maximum transmission power is 100mW, and the software is multi-level adjustable；

Under ideal conditions, the communication distance can reach 1.8km；

Support the global license-free ISM 2.4GHz frequency band；

Support 2Mbps, 1Mbps and 250kbps air rate；

125 communication channels to meet application requirements such as multipoint communication, grouping, andfrequency hopping；

Connect with MCU through SPl interface, rate 0~10Mbps；

Support 2.0~3.6V power supply, power supply greater than 3.3V can guarantee the best performance；

Industrial standard design, supporting long-term use at -40~+85°C；

Comes with POB onboard antenna. no need for external antenna.

Product Applications

Smart home and industrial sensors, etc.;

Security system, positioning system;

Wireless remote control, UAV；

Wireless game remote control;

Healthcare products,

Wireless voice, wireless headset;

Automotive industry applications.

Product Specifications
