Product Descriptions

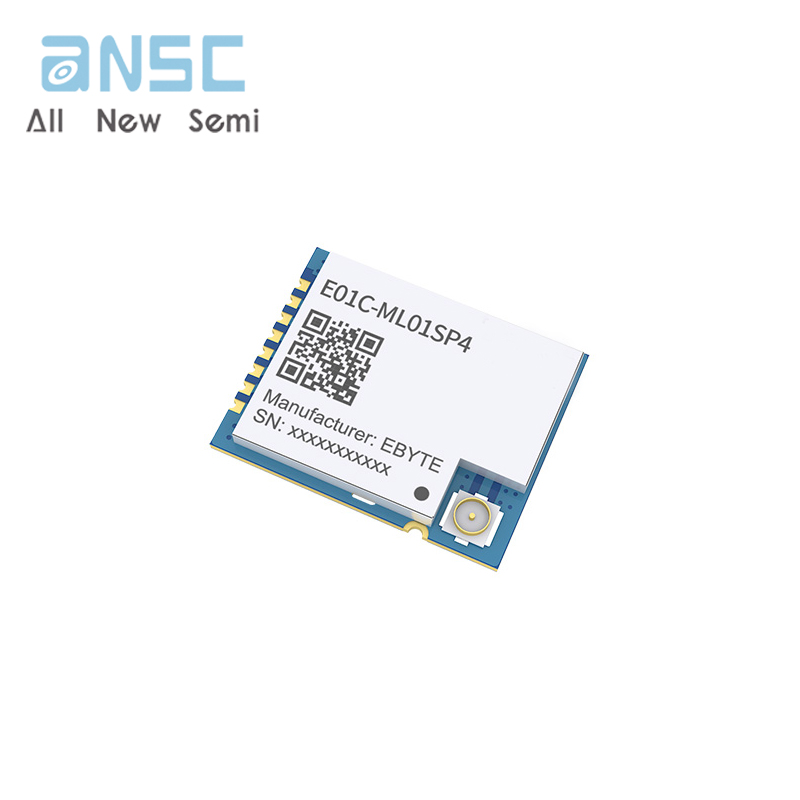

E01C-ML01SP4 is a small size 2.4ghz SMD wireless module, maximumtransmitting power of 100mW, which is independently developed based ondomestic SI24R1.

Built-in power amplifier (PA)and low noise amplifier (LNA)on theoriginal basis, the maximum transmission power reaches 100mW, while thereceiving sensitivity is further improved, and the overall communicationstability is less than power amplifier and low noise amplifier The products havebeen greatly improved.

This product uses industrial-grade high-precision 16MHz crystal.

Since E01C-ML01SP4 is a radio frequency transceiver module, it needs touse MCU driver or use a dedicated SPI debugging tool.

Product Features

Small size 14.5*18mm,

The maximum transmit power is 100mW, software multi-level adjustable；

ommunication distance can reach 2KMunder ideal conditions；

Global license-fiee ISM2.4GHz band；

Air data rate : 2Mbps, lMbps and 250kbps;

125 communication channels to meet the needs of'multl-point commmunication,packet,fiequency hopping and other applications；

Connect to MCU through SPl interface, the speed is 0 ~ 10Mbps；

Power supply 2.0~3 .6V, more than 3.3V can guarantee the best performance；

Professional RF shielding cover, anti-interference, anti-static；

IPEX interface, convenient for connecting coaxial cable or external antenna (shared with lPEX interface),

Product Applications

Smart home and industrial sensors；

Security system, positioning system；

Wireless remote control, drone；

Wireless game remote control;

Health care products；

Wireless voice, wireless headphones;

Automotive industry applications.

Product Specifications
