Product Descriptions

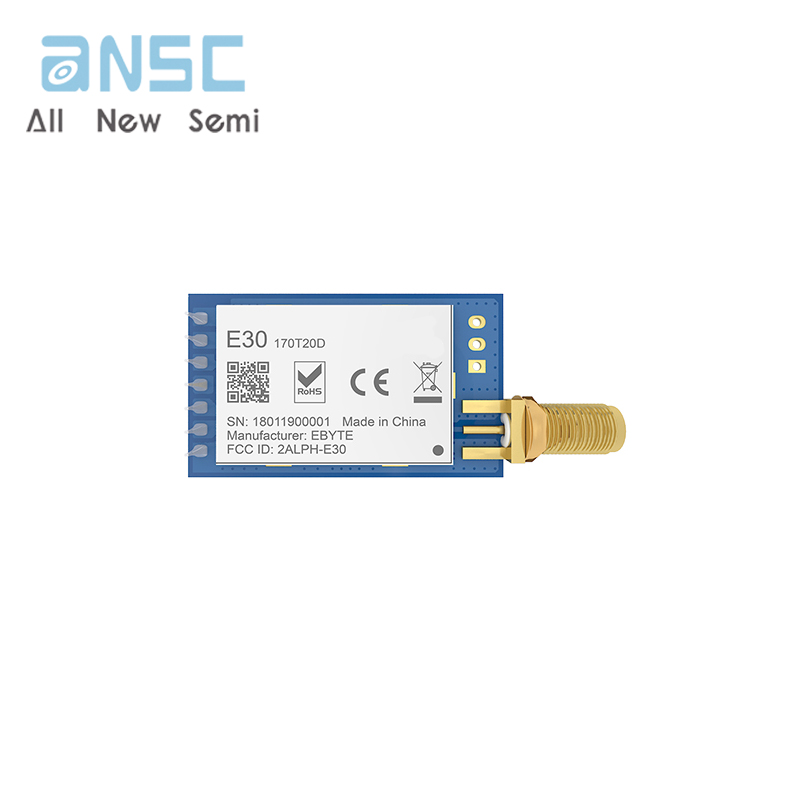

E30-170T20D is a wireless serial port module (UART) based on SI4463 RF chip, with half duplex, integrated transceiver, transparent transmission mode, direct insertion type, TTL level output, operating frequency range of 148-173.5MHz (default 170MHz), transmission power of 100mw, and air wake-up function (ultra-low power consumption), suitable for complex environments with many obstacles.

The module has a software FEC forward error correction algorithm, which has high encoding efficiency and strong error correction capability. In the event of sudden interference, it can actively correct the interfered data packets, greatly improving reliability and transmission distance. Without FEC, this type of packet can only be discarded. The module has data encryption and compression functions. The data transmitted by the module in the air has randomness, and through rigorous encryption and decryption algorithms, data interception becomes meaningless. The data compression function has the potential to reduce transmission time, minimize the probability of interference, and improve reliability and transmission efficiency.

E30-170T20D strictly complies with domestic and foreign design specifications such as FCC, CE, ROHS, etc., meets various RF related certifications, and meets export requirements.

Product Features

Support fixed-point transmission/broadcast transmission/channel monitoring;

Support air wake-up (ultra-low power consumption), suitable for battery powered application solutions;

Support FEC forward error correction, effectively improving communication stability;

Under ideal conditions, the communication distance can reach 2.5km;

Maximum transmission power of 100mw, software multi-level adjustable;

Low frequency 170MHz band, super strong diffraction ability, suitable for complex environments with many obstacles;

Supports data transmission rates of 1k~25kbps; Supports 2.3-5.2V power supply, and ensures optimal performance for power supplies greater than 3.3V;

Industrial standard design, supporting long-term use at -40~+85 ℃;

SMA-K RF interface, convenient for connecting coaxial cables or external antennas

Product Applications

Home security alarm and remote keyless entry;

Smart home and industrial sensors, etc;

Wireless alarm security system;

Building automation solutions;

Wireless industrial grade remote control:

Intelligent agriculture and oilfield solutions;

Healthcare products;

Advanced Meter Reading Architecture (AMI);

Application in the automotive industry.

Product Specifications
