Product Descriptions

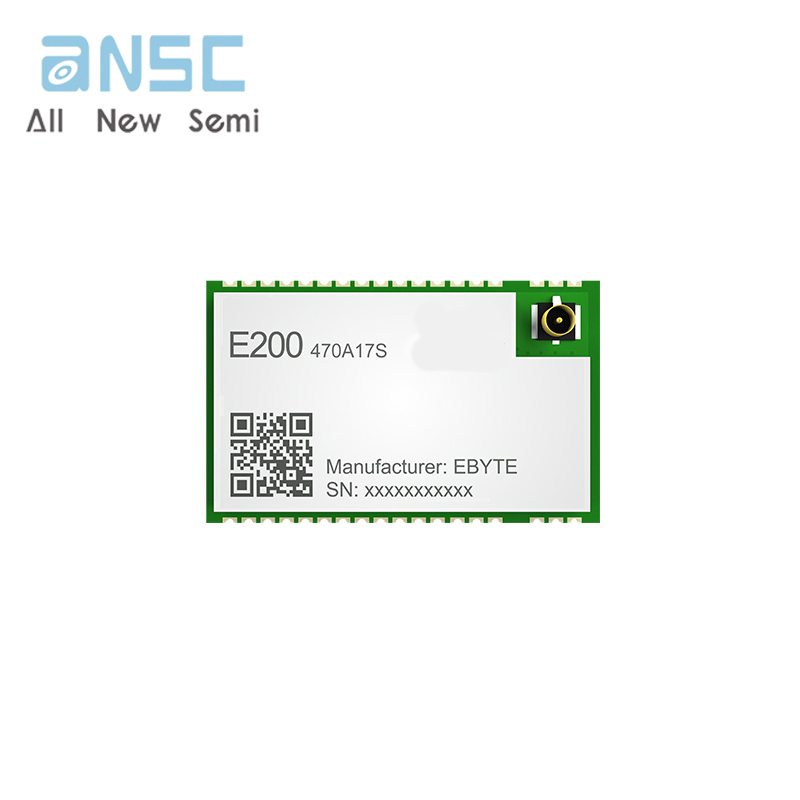

E200-470A17S is a new wireless audio transmission module, which integrates transceiver. It has the characteristics of small size and convenient use. It works in the frequency band (470.033 ～ 512.273MHz) (default 512.273MHz), uses hardware I/O to select channels, supports MIC input and speaker output, and is compatible with 3.3V and 5V power supply voltages.

The E200-470A17S integrates a microphone (Microphone) and a speaker (Speaker) PA amplifier. Direct connection to the microphone does not require an external amplifier. The audio output can directly drive a 250mW/8ohm speaker. The radio frequency part provides a sensitivity of -98dBm, which greatly improves the wireless distance.

Product Features

 Support one-to-many broadcast transmission;

 Under ideal conditions, the communication distance can reach 300m;

 Control the working channel through the channel pin (restart effective), easy to use;

 The master-slave mode can be switched in real time, which is more flexible;

 Support 3.0～5.5V power supply, power supply greater than 3.3V can guarantee the best performance;

 Industrial standard design, supporting long-term use at -40～+85℃;

 Dual antennas are optional (IPEX/stamp hole), which is convenient for users to develop and integrate.

Product Applications

 Smart home;

 Wireless alarm security system;

 Wireless audio transmission;

 Intelligent voice system;

Product Specifications
