Product Descriptions

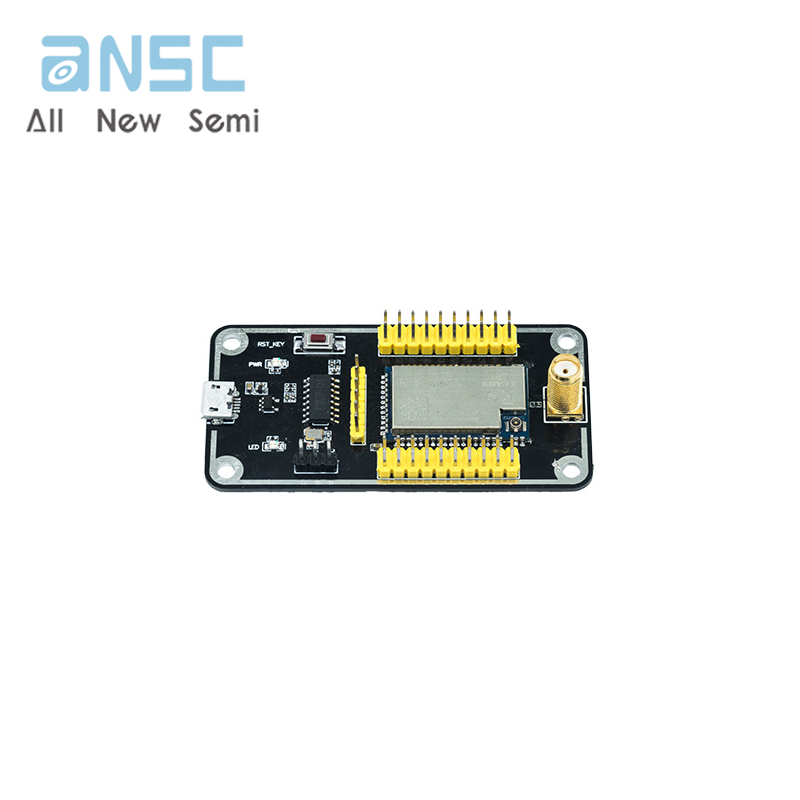

E78-900TBL-01A is a test kit specially designed for E78 series SMD SOC module combined with USB to TTL serial portbackplane. All the pins of E78-900M221 A module have been led out for customer testing and development, which greatlreduces customer testing and development Difficulty.
Product Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E78-900TBL-01A | |
| Working voltage（V） | 1.8~3.7 | ≥3.3V can guarantee output power |
| Communication level（V） | 3.3 | Using 5V TTL is risky to burn |
| Working temperature（℃） | -40~+85 | Industrial design |
| Working frequency（MHz） | 850~925 | Support ISM frequency band |
| Emission current（mA） | 145 | Instantaneous power consumption |
| Receiving current（mA） | 13 | - |
| Sleep current（μA） | 2 | Software shutdown |
| Maximum transmit power（dBm） | 22 | - |
| Receiving sensitivity（dBm） | -122~-126 | The air rate is 595kbps |
| Air rate LoRa（bps） | 62.5k | User programmable customization |
| Air rate GFSK（bps） | 300K | User programmable customization |
| Ideal Range | 5500m | At Max TX power and 2.4kbps air rate, Two modules in a line of sight, clear weather, with 5dbi antennas at 2.5meters. |
| Crystal frequency | 32MHz | TXCO |
| Modulation | LoRa(recommended) | GFSK ，LoRa |
| Encapsulation method | SMA | - |
| Interface method | Stamp-hole | Diameter 1.1mm |
| Dimensions | 26*16mm | - |
| RF interface | IPEX/stamp-hole | Equivalent impedance is about 50Ω |
