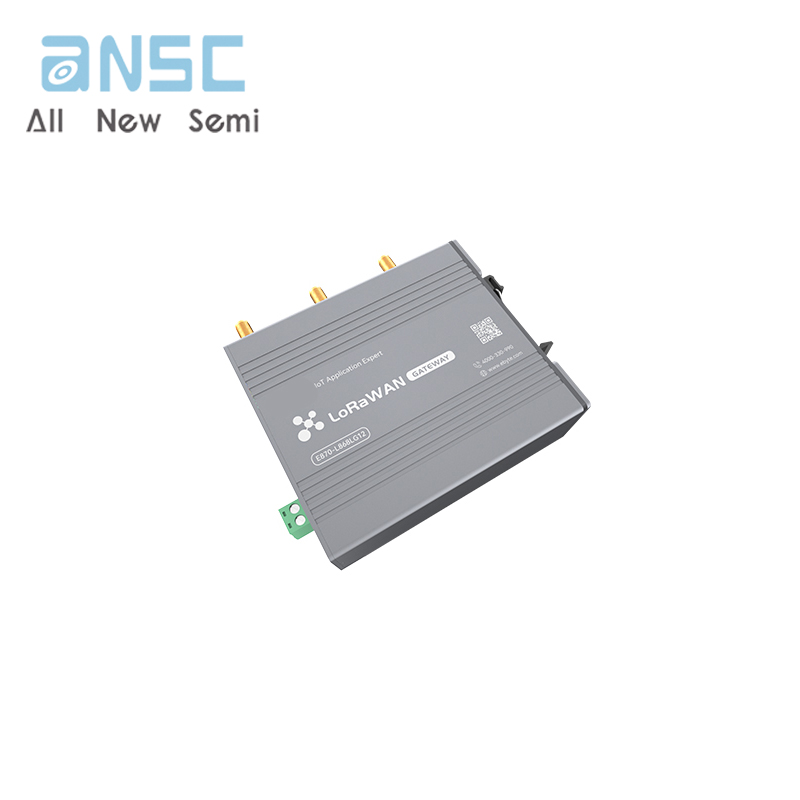

Hot selling E870-L915LG12 LoRaWAN Industrial grade multi-channel wireless gateway Half Duplex LoRaWAN Gateway_各类模块

Product Features

 Supports 1 wired WAN port with switchable LAN port

 Supports LORAWAN gateway

 Support LED status monitoring (display of power PWR, LINK, ETH, WLAN, LoRaRX, LoRaTX;)

 Support for Web platform management configuration methods.

 One-click recovery of factory settings.

 Support 10/100Mbps rate for both wired network ports.

 Support wired and wireless online at the same time, multi-network intelligent switching.

 Support firmware upgrade and firmware configuration backup function.

 Firewall, NAT, DMZ host, black and white list of access control, IP speed limit.

 QOS, traffic service, can limit the speed according to the interface.

 Support for VPN clients.

 Support load balancing multi-network port flow control settings, with network port priority, enable, flow control ratio and other working methods.

Attribute	Attribute value
ANSM-Part#	ANSM-E870-L915LG12
Chip scheme	SX1302
Working frequency band	US915, AU915, AS923, KR920
Transmit power	27dBm
Communication distance	3km
Product weight	417±5g
Product size	11610541mm
Introduction	Half-duplex LoRaWAN standard protocol gateway
Product size(HWD)	11010541
Product weight	417±5g
Operating temperature	-40°C~+85°C
Storage temperature	-40°C~+85°C
Working humidity	5% ~ 95%
Storage humidity	1% ~ 95%
Operating voltage	8V~28V
Current consumption	120mA@12V (room temperature)
Precision	0.20%

E870-L915LG12
