Product Descriptions
Product Specifications

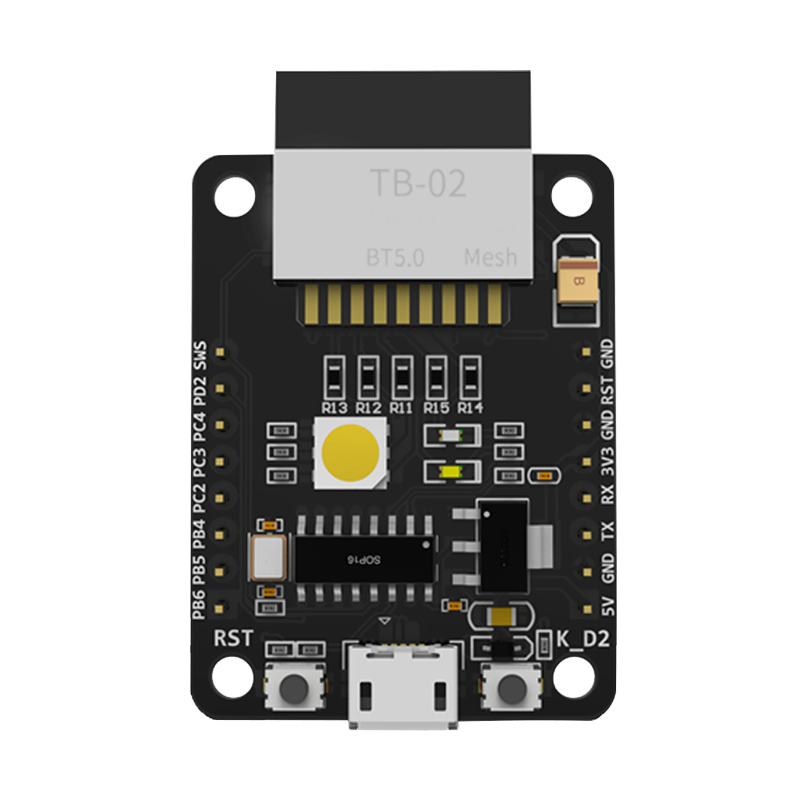

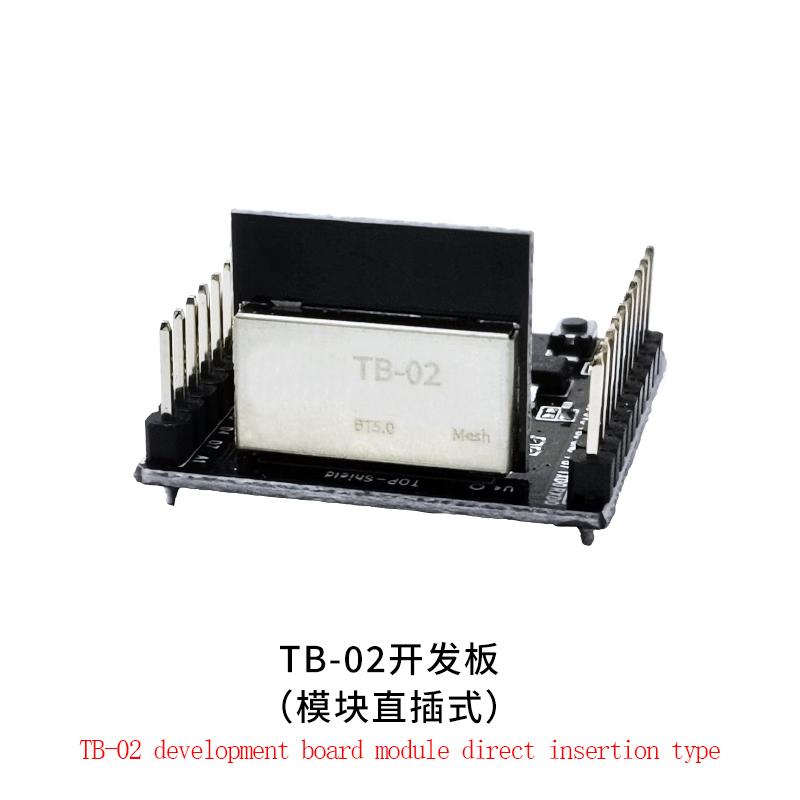

| 模组型号 Module model | TB-02 |
| 模组封装 Module packaging | DIP-18/SMD-13 |
| 尺寸(mm) Size(mm) | 18.0*18.0*2.8(±0.2)MM |
| 无线标准 Wireless standards | 蓝牙5.0 Bluetooth 5.0 |
| 频谱范围 Spectrum range | 2400-2483.5MHz |
| 最大发射功率 Maximum transmission power | Maximum value 10dBm |
| 最大接收灵敏度 Maximum receiving sensitivity | -93.2dBm |
| 工作环境 Work environment | -20℃ ~70℃ |
| 存储环境 Storage environment | -40℃~125°C,<90%RH |
| 供电范围 Power supply range | 供电电压2.7V~3.6V，供电电流≥50mA Supply voltage 2.7V~3.6V,supply current≥50mA |
| 支持接口 Support interfaces | GPIO/PWM/SPI/ADC |
| 功耗 Power consumption | Deep sleep mode:0.8uA |
| Sleep mode:1.8uA | |
| TX:12.62mA | |
| 传输距离 Distance | 室外空旷视距:80米~150米 Outdoor open sight distance: 80 meters~150 meters |
Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
