Low power Bluetooth 5.0 light control module Mesh networking transparent transmission module TB-04 module/development board_各类模块

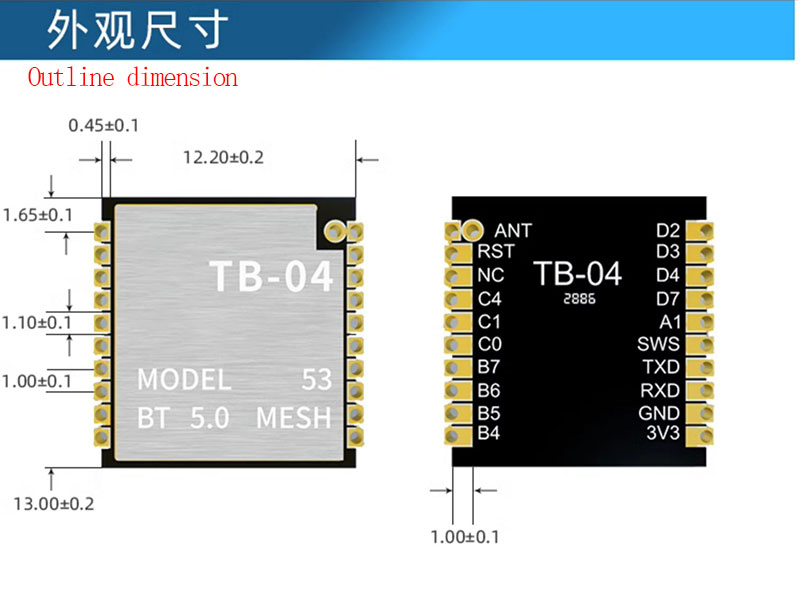

Product Size

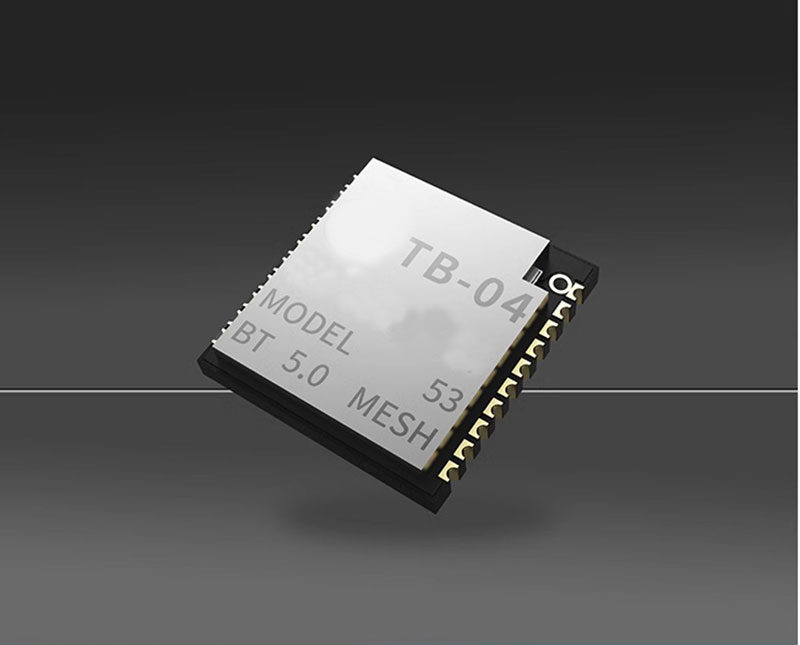

详情-07_01

详情-07_02

Equipped with Bluetooth mesh networking function
Communication between devices through peer-to-peer star networks
Using Bluetooth broadcasting for communication ensures response time in multi device situations
Self designed BT5.0 Low Power Module Based on TLSR8250 Chip
Adopting SMD-20 packaging
6 PWM outputs
Through hole solder pad, external spring antenna
Brightness (duty cycle) adjustment range 5 percent -100 percent
Factory default cool and warm colors have a duty cycle of 50 percent each
PWM output frequency 1KHZ
Supports multiple sleep modes, with deep sleep current as low as 0.8uA
Equipped with night light function
Equipped with wall switch to switch color temperature function

模组型号 Module model	TB-04
模组封装 Module packaging	SMD-20
尺寸(mm) Size(mm)	12.213.02.3(±0.2)MM
无线标准 Wireless standards	蓝牙5.0 Bluetooth 5.0
频谱范围 Spectrum range	2400-2483.5MHz
最大发射功率 Maximum transmission power	Maximum value 10dBm
最大接收灵敏度 Maximum receiving sensitivity	-93dBm±2
工作环境 Work environment	-20℃ ~70℃
存储环境 Storage environment	-40℃~125°C,<90%RH
供电范围 Power supply range	供电电压2.7V~3.6V，供电电流≥50mA Supply voltage 2.7V~3.6V,supply current≥50mA
支持接口 Support interfaces	GPIO/PWM/SPI/ADC
功耗 Power consumption	Deep sleep mode:0.8uA
	Sleep mode:1.8uA
	TX (10dBm): 20.69mA

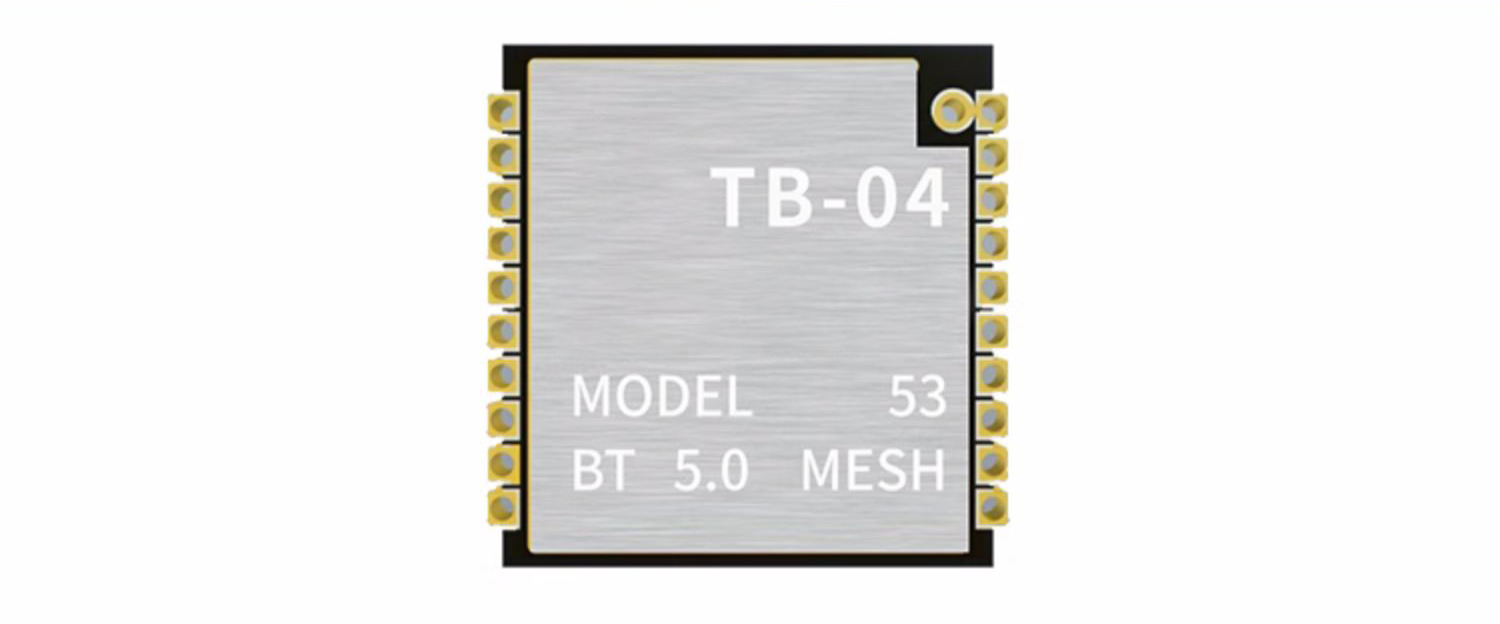

详情-09

脚序 Foot sequence	名称 Name	功能说明 Function Description
1	ANT	天线接口 Antenna interface
2	RST	复位引脚 Reset pin
3	NC	NOT CONNECTED
4	C4	PWM2_Output/UART_CTS/PWMO_INVERTED OUTPUT/SAR ADC_Input/GPI0 PC4
5	C1	I2C_Serial clock/PWM1_INVERTED OUTPUT/pwm0_Output/GPIO PC1
6	C0	I2C_Serial data/PWM4_INVERTED OUTPUT/UART_RTS/GPIO PCO
7	B7	SPI_Data output/UART__RX/SAR ADC_Input/GPIO PB7
8	B6	SPI_Data input(I2C_SDA)/UART_RTS/SAR ADC_Input/GPIO PB6
9	B5	PWM5 Output/SAR ADC_Input/GPIO PB5
10	B4	PWM4 Output/SAR ADC__Input/GPIO PB4
11	3V3	3.3V供电 3.3V power supply
12	GND	接地 Grounding
13	RXD	PWMO_INVERTED OUTPUT/UART_RX/GPIO PAO
14	TXD	PWM4_Output/UART_TX/SAR ADC_Input/GPIO PB1
15	SWS	单线从机 Single line slave
16	A1	GPIO PA1
17	D7	GPI0 PD7/SPI_Clock(I2C_SCK)
18	D4	GPI0 PD4/Single line host/PWM2_INVERTED OUTPUT
19	D3	PWM1_INVERTED OUTPUT/GPIO PD3
20	D2	SPI Chip selection (low level effective)/PWM3_Output/GPI0 PD2

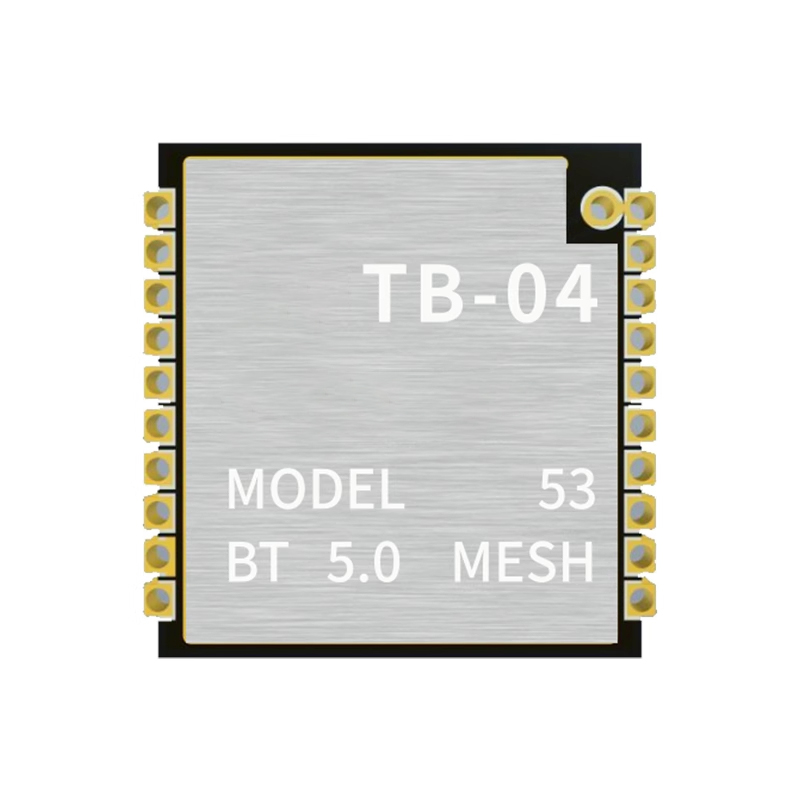

SKU-01-TB-04 V0.9版本AT固件【推荐】

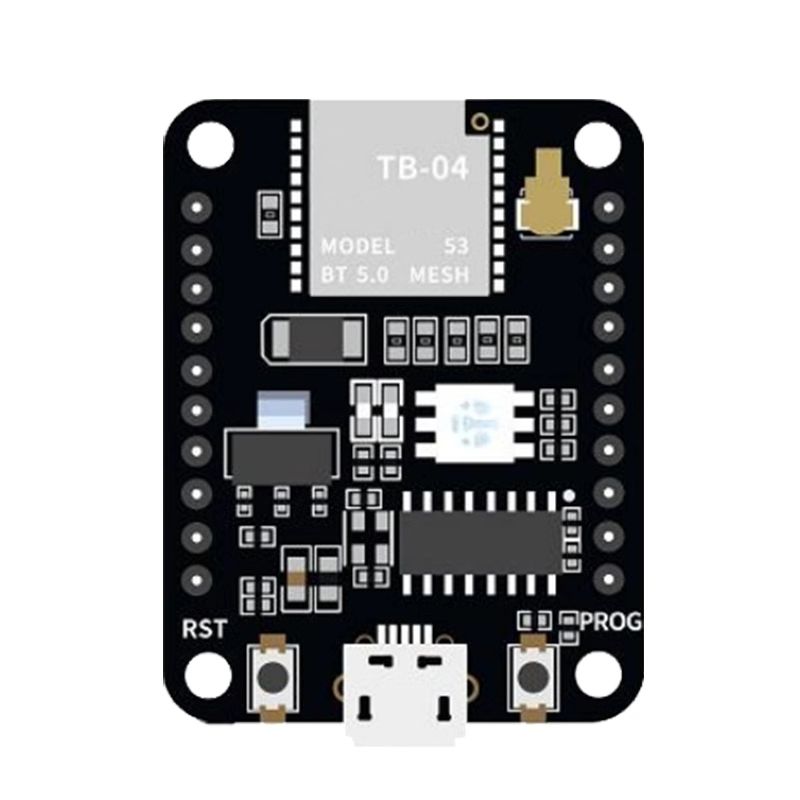

SKU-03-TB-04-Kit开发板

详情8.1

详情页3.1

详情5.1

详情6.1

详情9

We also provide ：
