Low power Bluetooth BLE5.0 module Mesh networking master-slave integrated wireless serial port transparent transmission TB-05_各类模块

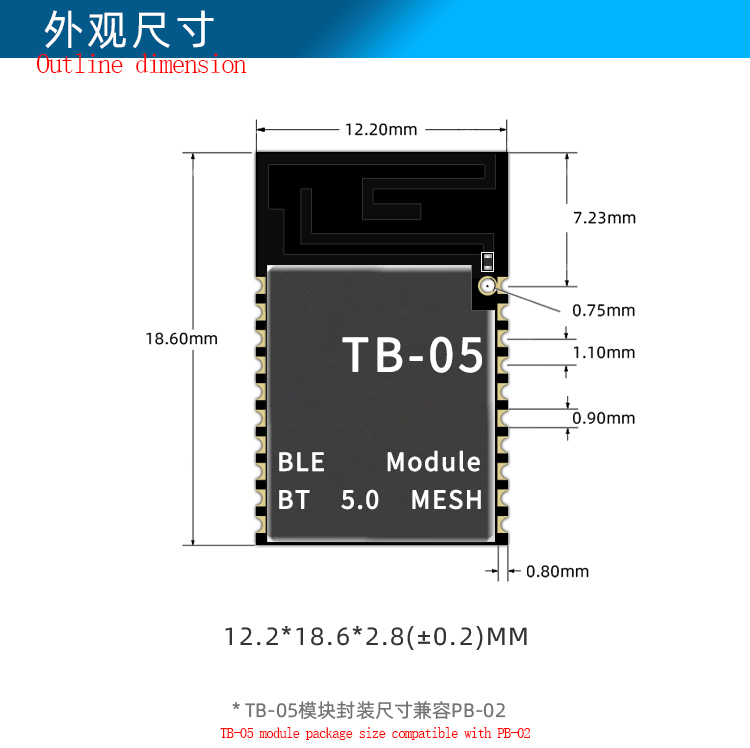

Product Size

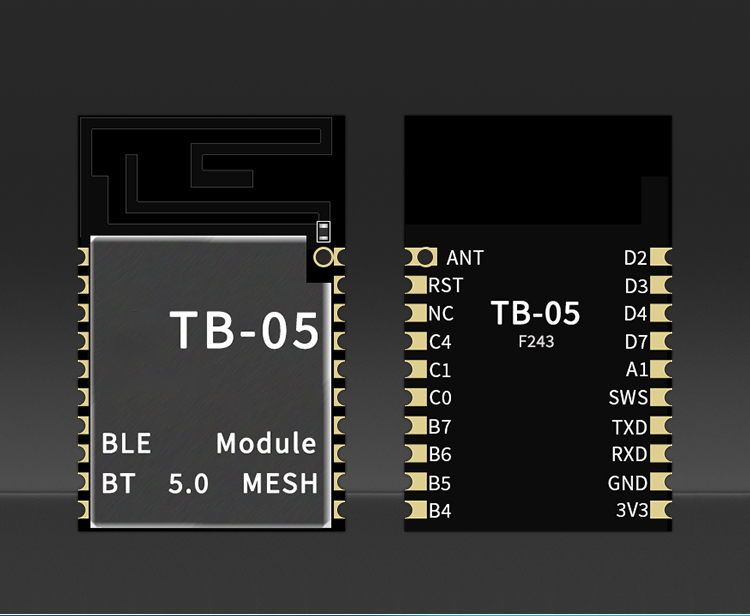

详情-06

详情-07

Can be directly controlled by Tmall Genie without the need for a gateway
Equipped with Bluetooth mesh networking function
Communication between devices through peer-to-peer star networks
1.1mm spacing SMD-20 package
6 PWM outputs
Onboard antenna, compatible with half hole solder pads, compatible with through-hole solder pads for direct insertion of spring antennas
Brightness (duty cycle) adjustment range 5 percent -100 percent
Factory default cool and warm colors have a duty cycle of 50 percent each
PWM output frequency 1KHZ
Supports multiple sleep modes, with deep sleep current as low as 0.8 μ A
Equipped with night light function
Equipped with wall switch to switch color temperature function

模组型号 Module model	TB-05
模组封装 Module packaging	SMD-20
尺寸(mm) Size(mm)	12.218.62.8(±0.2)MM
无线标准 Wireless standards	蓝牙5.0 Bluetooth 5.0
频谱范围 Spectrum range	2400-2483.5MHz
最大发射功率 Maximum transmission power	Maximum value 10.5dBm
最大接收灵敏度 Maximum receiving sensitivity	-93dBm±2
工作环境 Work environment	-40℃ ~85℃
存储环境 Storage environment	-40℃~125°C,<90%RH
供电范围 Power supply range	供电电压2.7V~3.6V，供电电流≥50mA Supply voltage 2.7V~3.6V,supply current≥50mA
支持接口 Support interfaces	GPIO/PWM/SPI/ADC
功耗 Power consumption	Deep sleep mode:0.8uA
	Sleep mode:1.8uA
	TX: 21.56mA
传输距离 Distance	室外空旷视距:≥100米 Outdoor open sight distance: ≥100 meters

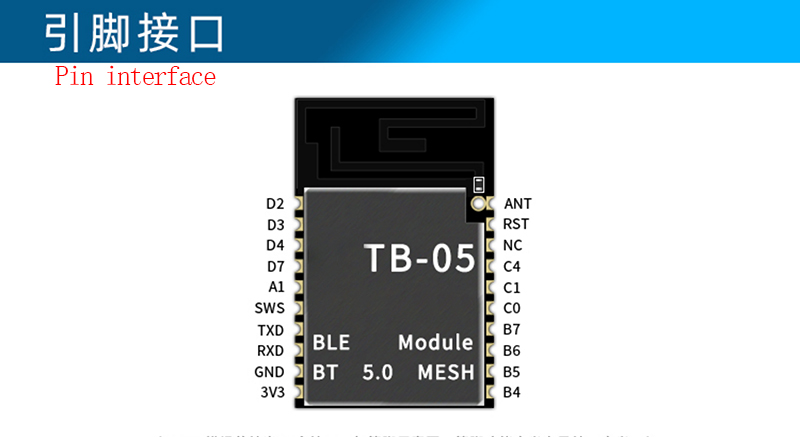

详情-10

脚序 Foot sequence	名称 Name	功能说明 Function Description
1	D2	SPI Chip selection (low level effective)/PWM3_Output/GPIO PD2
2	D3	PWM1_INVERTED OUTPUT/GPIO PD3
3	D4	GPIO PD4/Single line host/PWM2_INVERTED OUTPUT
4	D7	GPIO PD7/SPI clock(I2C_SCK)
5	A1	GPIO PA1
6	SWS	单线从机 Single line slave
7	TXD	PWM4_Output/UART_TX/SAR ADC_Input/GPIO PB1
8	RXD	PWM0_INVERTED OUTPUT/UART_RX/GPIO PA0
9	GND	接地 Grounding
10	3V3	3.3V 供电 3.3V power supply
11	B4	PWM4_Output/SAR ADC_Input/GPIO PB4
12	B5	PWM5_Output/SAR ADC_Input/GPIO PB5
13	B6	SPI Data input(I2C_SDA)/UART_RTS/SAR ADC_Input/GPIO PB6
14	B7	SPI Data output/UART_RX/SAR ADC_Input/GPIO PB7
15	C0	I2C serial data/PWM4 reverse output/UART RtS/GPIO PC0
16	C1	I2C serial clock/PWM1 reverse output/PWM0 output/GPIO PC1
17	C4	PWM2 output/ART_CTS/PWM0 reverse output/SAR ADC input
18	NC	NOT CONNECTED
19	RST	复位引脚 Reset pin
20	ANT	天线接口 Antenna interface

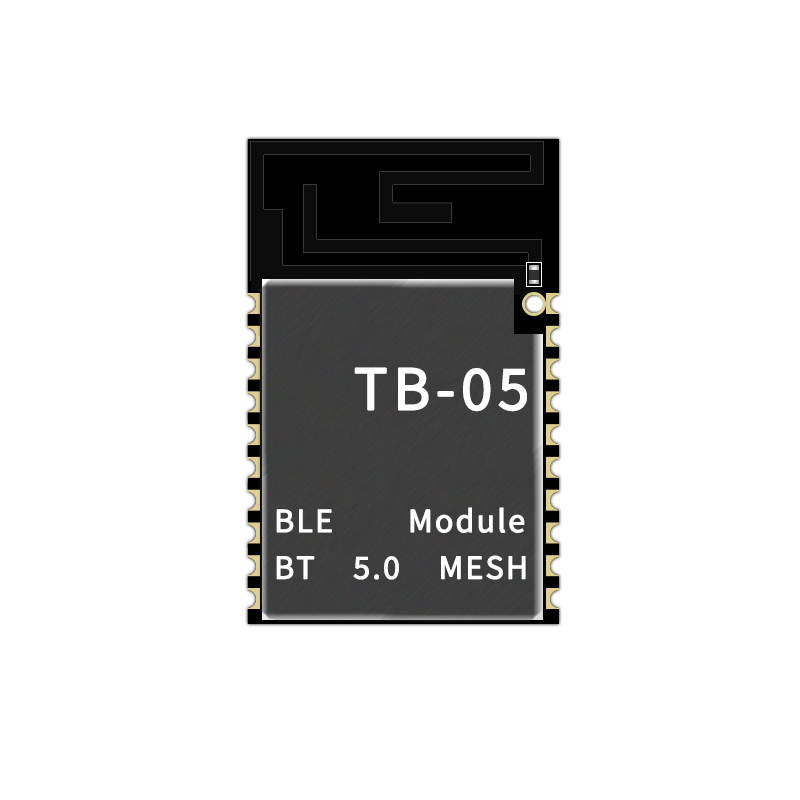

SKU-01-TB-05 Combo AT固件

详情8.1

详情页3.1

详情5.1

详情6.1

详情9
