Product Descriptions
PB-03F Kit is a development board designed for the PB-03F module. PB-03 is a Bluetooth module that uses the main chip scheme of PHY6252. This chip is a System on Chip (SoC) designed for Bluetooth 5.2 applications, featuring a high-performance, low-power 32-bit processor with industry-leading low-power and RF performance.
Supporting multiple low-power operating states, it can meet the power consumption requirements of various application scenarios and can be widely used in the development of various applications such as the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, etc.
Product Specifications
| 模组型号 Module model | PB-03F-Kit |
| 模组封装 Module packaging | DIP-30(2.54间距标准排针) DIP-30 (2.54 standard spacing pin arrangement) |

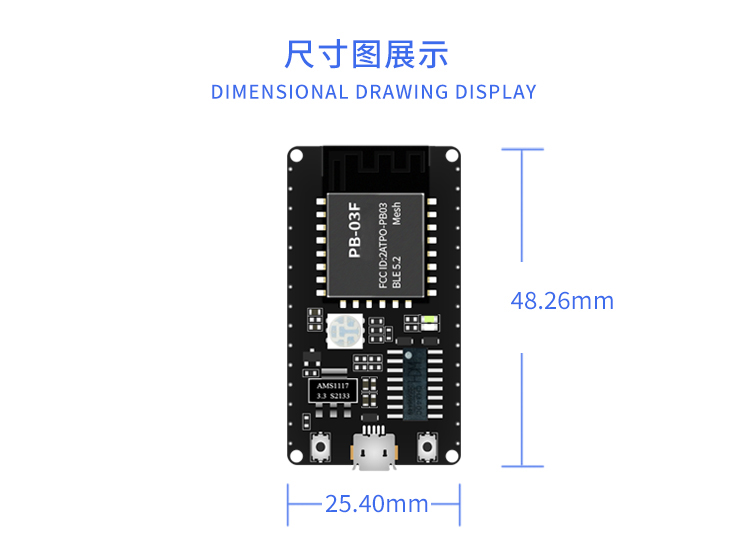

| 尺寸(mm) Size(mm) | 48.26*25.40(±0.2)MM |
| 天线形式 Antenna form | 板载天线 Onboard antenna |
| 频谱范围 Spectrum range | 2400-2483.5MHz |
| 工作环境 Work environment | -40℃ ~85℃ |
| 存储环境 Storage environment | -40℃~125°C,<90%RH |
| 供电范围 Power supply range | 供电电压5V，供电电流＞200mA Supply voltage 5V,supply current＞200mA |
| 支持接口 Support interfaces | UART/SPI/I2C/GPIO/ADC/PWM/I2S/PDM/DMA |
| 可用IO口数量 Number of available IO ports | 19 |
| 串口速率 Series Rate | Default 115200 bps |
| 蓝牙 Bluetooth | BLE 5.2 |
| 安全性 Safety | AES-128 |
| Flash | 256KB |
| 功耗 Power consumption | 深度睡眠模式(无广播):7.2uA(单模组) Deep sleep mode (no broadcast): 7.2uA (single-mode group) |
| 关断模式:0.57uA(单模组) Off mode: 0.57uA (single-mode group) | |
| 发射模式(TX:8dBm):11.5mA(单模组) Transmission mode (TX: 8dBm): 11.5mA (single-mode group) | |
| 开发板底板:4mA Development board base plate: 4mA |

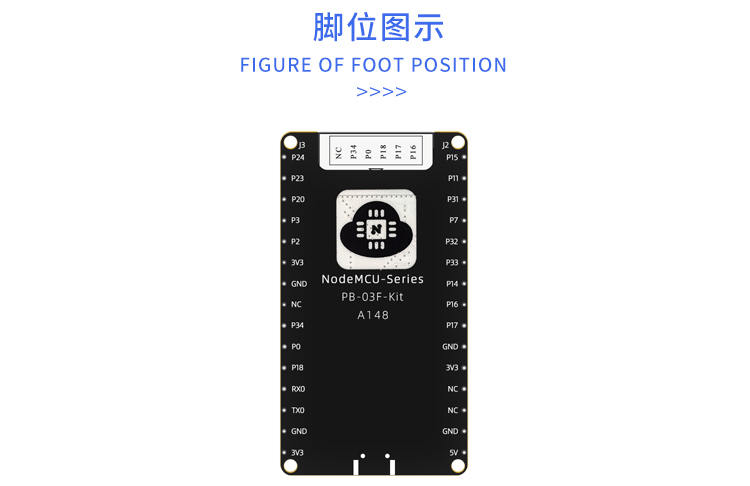

Product Pin interface
| 脚序 Foot sequence | 名称 Name | 功能说明 Function Description |
| 1 | P13 | GPIO13 |
| 2 | P11 | GPIO11 |
| 3 | P31 | GPIO31 |
| 4 | P7 | GPIO7 |
| 5 | P32 | GPIO32 |
| 6 | P33 | GPIO33 |
| 7 | P14 | GPI014/ADC input 3 |
| 8 | P16 | GPIO16 |
| 9 | P17 | GPIO17 |
| 10 | GND | 接地 Grounding |
| 11 | 3V3 | 3.3V 电源 3.3V power supply |
| 12 | NC | 无功能 NO FUNCTION |
| 13 | NC | 无功能 NO FUNCTION |
| 14 | GND | 接地 Grounding |
| 15 | 5V | 5V电源 5V power supply |
| 16 | 3V3 | 3.3V 电源 3.3V power supply |
| 17 | GND | 接地 Grounding |
| 18 | TX0 | TXD/GPIO9 |
| 19 | RX0 | RXD/GPIO10 |
| 20 | P18 | GPIO18 |
| 21 | P0 | GPIO0 |
| 22 | P34 | GPIO34 |
| 23 | NC | 无功能 NO FUNCTION |
| 24 | GND | 接地 Grounding |
| 25 | 3V3 | 3.3V 电源 3.3V power supply |
| 26 | P2 | GPI02/SWD debug data inout |
| 27 | P3 | GPI03/SWD debug clock |
| 28 | P20 | GPI020/ADC input 9/PGA positive input |
| 29 | P23 | GPI023/ADC input 1/micbias reference |
| 30 | P24 | GPIO24 |

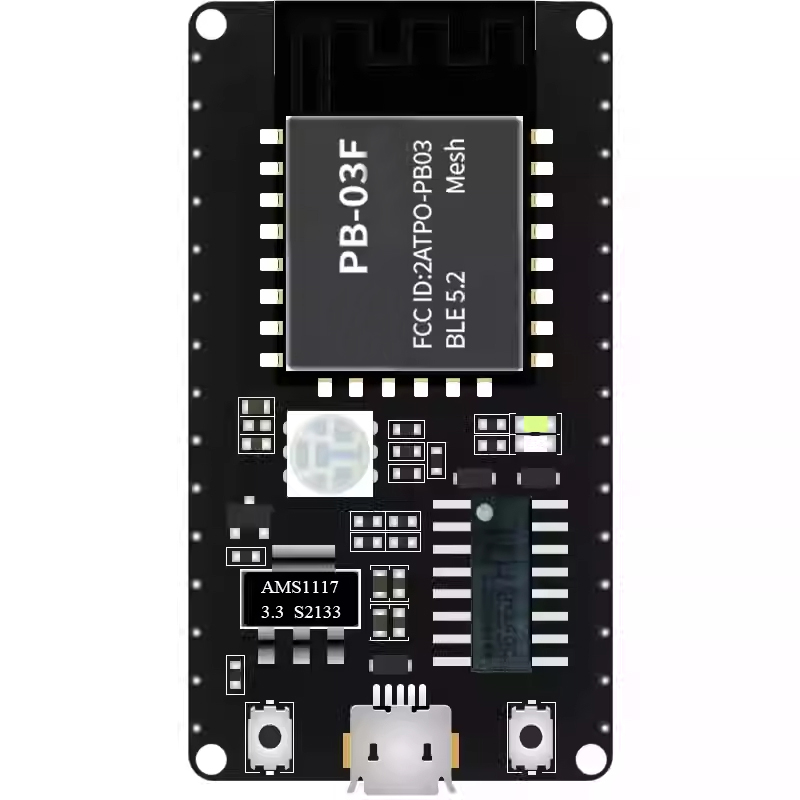

Product Show
