Product Descriptions

PB-03F is a Bluetooth module. It has up to 19 available IO ports, and the module uses the core processor chip PHY6252 (SSOP24), which has industry-leading low-power and RF performance, and supports Bluetooth BLE5.2.

PB-03F is a highly integrated low-power Bluetooth system on chip (SoC) module. Having multiple unique hardware security mechanisms; Hardware encryption accelerator supports AES algorithm; Support low-power Bluetooth: Bluetooth 5.2, Bluetooth mesh; Bluetooth speed support: 125Kbps, 500Kbps, 1Mbps, 2Mbps; Support broadcast extension, multiple broadcasts, and channel selection.

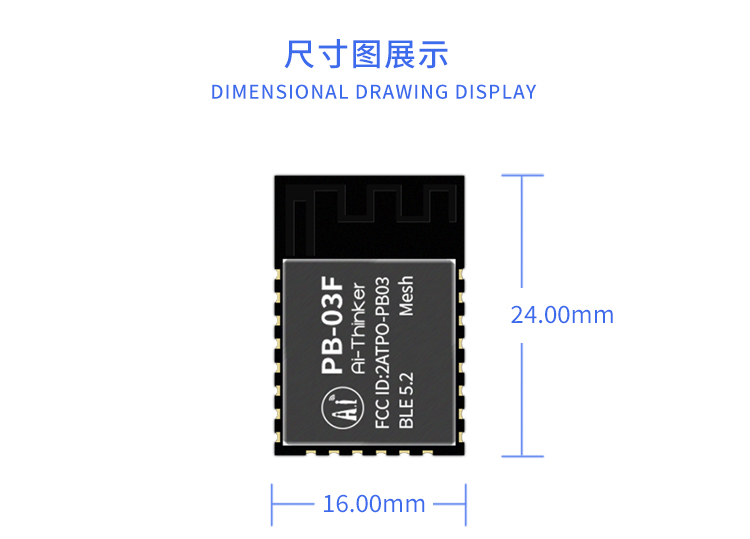

The size of PB-03F module is only 24 * 16 * 3.1mm, and it can accommodate up to 19 IO ports. The chip has 64 built-in ports KB SRAM，256KBflash，96KB ROM,256bit efuse; The adjustable RF output power function and other features can achieve a balance between communication distance, communication rate, and power consumption; Rich peripheral interfaces, including UART, PWM, ADC, I2C, SPI, PDM, DMA.

Supporting multiple low-power operating states, it can meet the power consumption requirements of various application scenarios and can be widely used in fields such as the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, etc.

Product Specifications

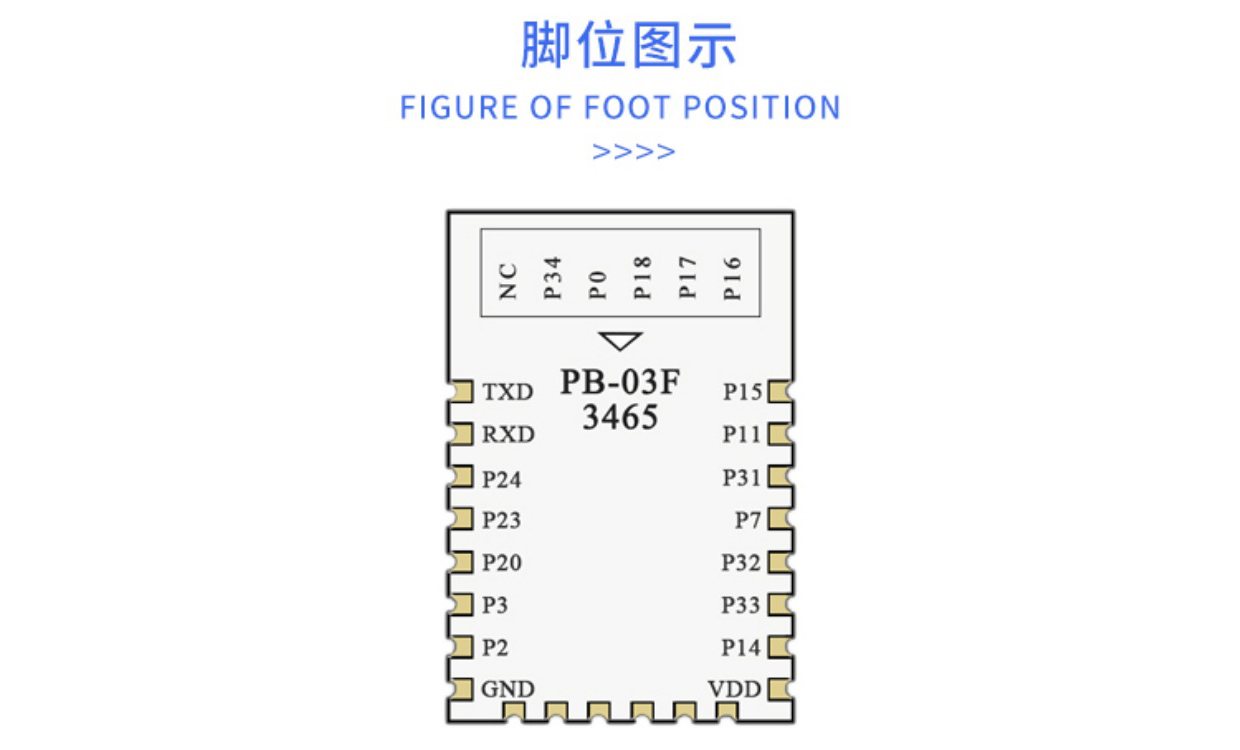

Product Pin interface

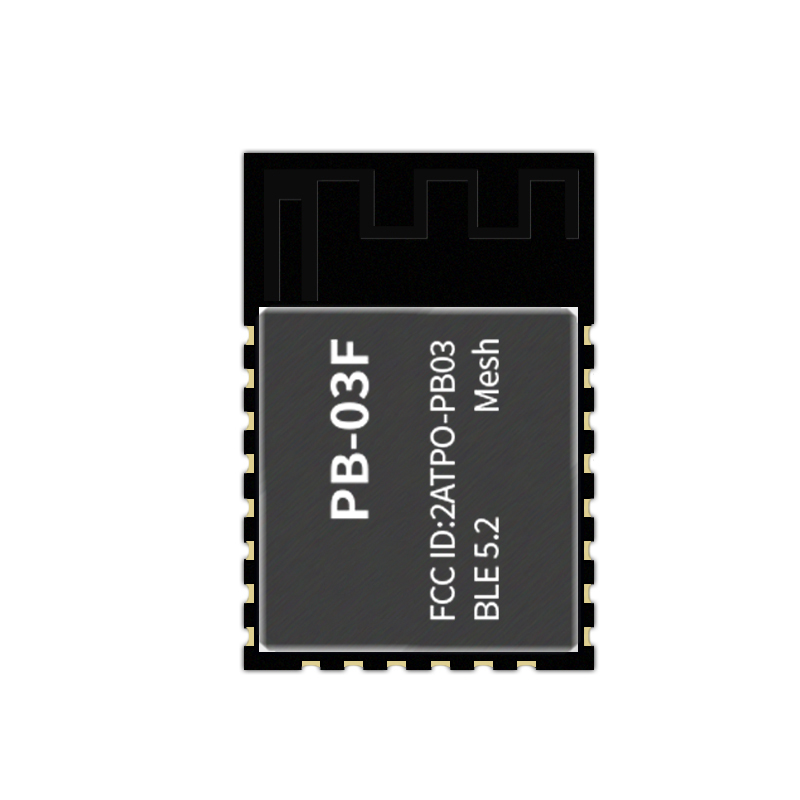

Product Show
