Product Descriptions

NF-03 is a small 2.4G wireless module with onboard antenna, high air speed (up to 2Mbps), SPI interface, and a pure hardware module that integrates transmission and reception; High stability, high cost-effectiveness, good spectrum testing characteristics, small size, using fully industrial grade components.

At present, it has been mass-produced and shipped in millions, and is suitable for various application scenarios.

NF-03 can be widely used in various IoT scenarios, including wireless keyboard and mouse, wireless remote control, motion sensing devices, active RFID, NFC, low-power self-organizing network wireless sensor network nodes, etc. It is an ideal solution for IoT applications.

NF-03 adopts stamp hole packaging, which can be quickly integrated into existing products for both learning and mass production, making it very convenient to use.

Product Features

• Stamp hole, ultra small size package, built-in 2.4G antenna, compact size, simple and easy to use

• Support six channel data reception

• Support universal modulation methods such as GFSK/FSK

• Supports data rates of 2Mbps/1Mbps/250Kbps

• Multi frequency point: 126 frequency points, meeting the needs of multi-point communication and frequency hopping communication

• Internally integrated high PSRR LDO

• Wide power supply voltage range: 1.9~3.6V

• The average emission current is as low as 110mA

• Receiving sensitivity: -96dBm@250kbps

• Maximum transmission power:+7dBm

• Adopting a four wire SPI interface, the speed can reach 10MHz

• Internally integrated intelligent ARO baseband protocol engine

• Hardware interrupt output for transmitting and receiving data

• Supports 1-bit RSSI output

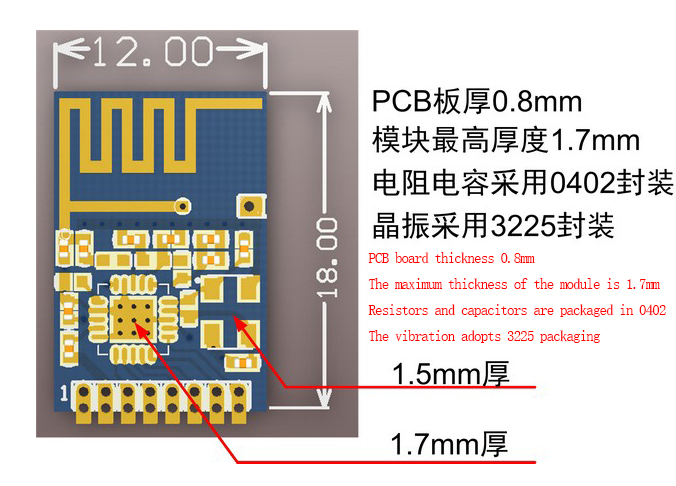

Product Specifications

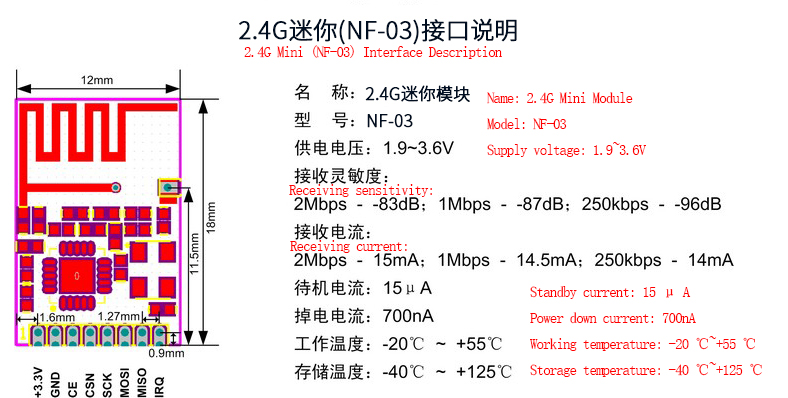

Product Pin interface

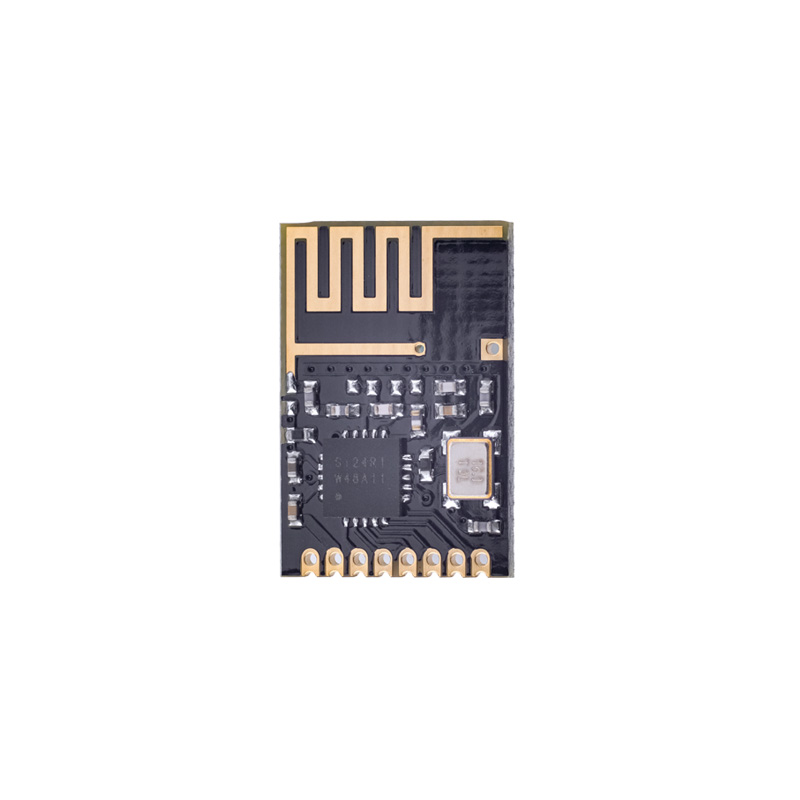

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
