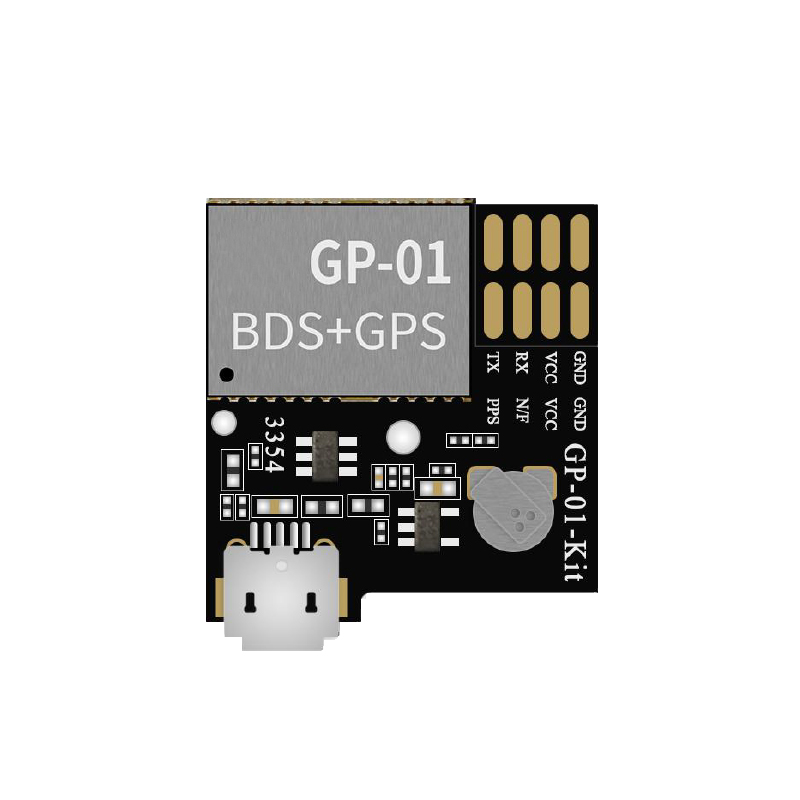

Product Descriptions
GP-01-Ket main chip AT6558R satellite positioning chip is a high-performance BDS/GNSS multi-mode satellite navigation receiver SOC development board. Integrated RF front-end, digital baseband processor, 32-bit RISCPU, power management, and active antenna detection and protection functions.
GP-01-Kit supports multiple satellite navigation systems, including China's Beidou Navigation Satellite System (BDS), the United States' GPS, and Russia's GLONASS, enabling multi system joint positioning.
GP-01-Kit is a highly integrated development board with ceramic antennas. The ceramic antennas on the development board have undergone professional debugging, which can help users save time on antenna selection and debugging.
The GP-01-Kit module can be widely used in smart devices such as car navigation, smart wearables, and drones, and can upgrade to multi-mode positioning functions.
Product Specifications
| 模组型号 Module model | GP-01-Kit |
| 模块尺寸 Module Size | 23.4*12.2*24(±0.2)MM |
| 模块封装 Module packaging | SMD-8 |
| 工作温度 Operation temperature | -40°C~85 °C |
| 存储环境 Storage environment | -40 ℃~125°C,<90%RH |
| 供电范围 Power supply range | 典型5V(支持MicroUSB5V供电) Typical 5V (supports MicroUSB 5V power supply) |
| 串口速率 Series Rate | Maximum support 256000bps |
| 认证 Authentication | RoHS |

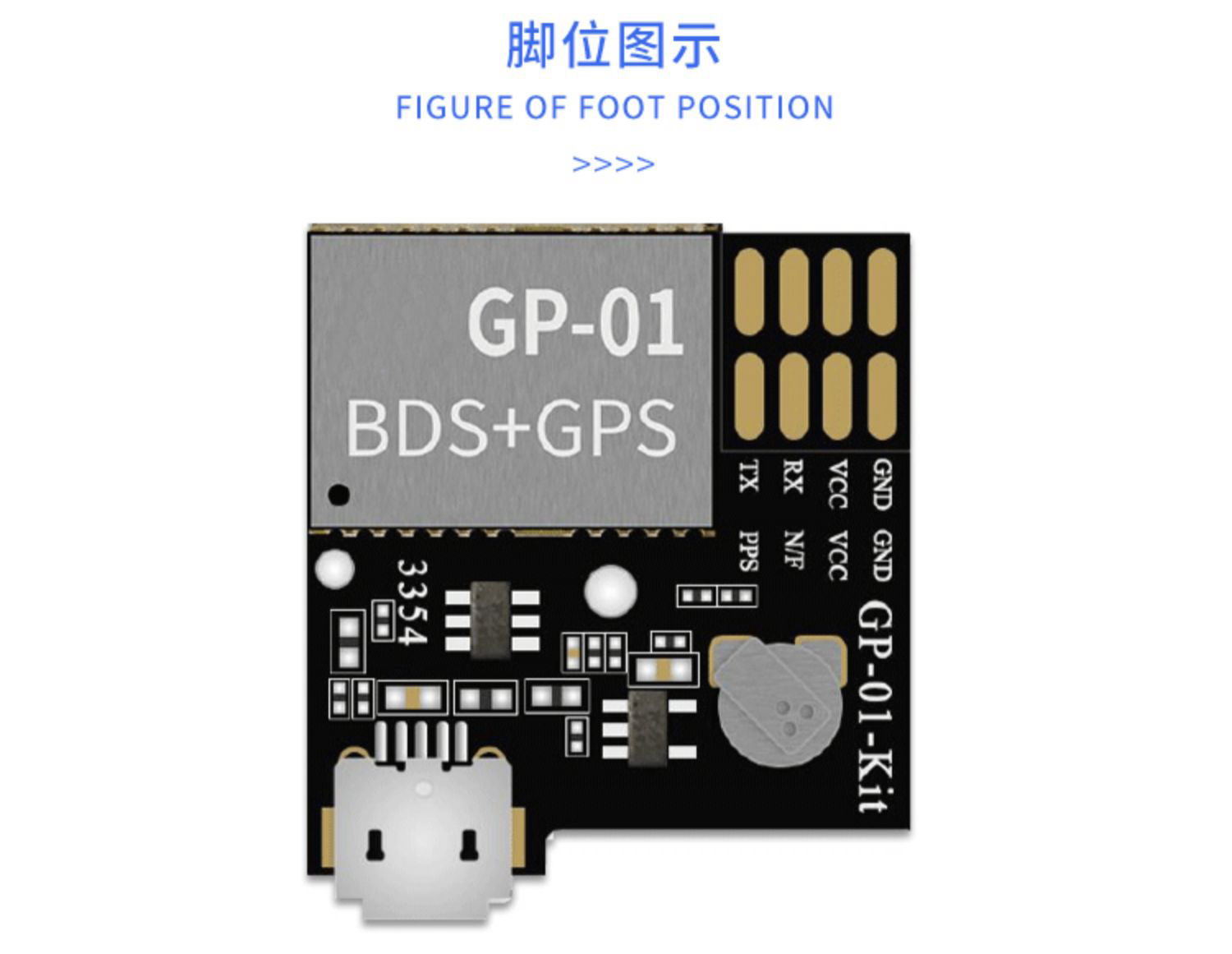

Product Pin interface
| 脚序 Foot sequence | 名称 Name | 功能说明 Function Description |
| 1 | GND | 接地 Grounding |
| 2 | VCC | 5V 供电 5V power supply |
| 3 | RX1 | 通用GPI0，默认为UART1的RXD Universal GPI0, default RXD for UART1 |
| 4 | TX1 | 通用GPI0，默认为UART1的TXD Universal GPI0, default TXD for UART1 |
| 5 | GND | 接地 Grounding |
| 6 | VCC | 5V 供电 5V power supply |
| 7 | N/F | 关断控制，正常工作保持高电平;内部上拉 Turn off the control and maintain a high level during normal operation; Internally pull up |
| 8 | PPS | 时间脉冲信号 Time pulse signal |
| 9 | Micro USB | 此接口仅提供供电功能 This interface only provides power supply function |

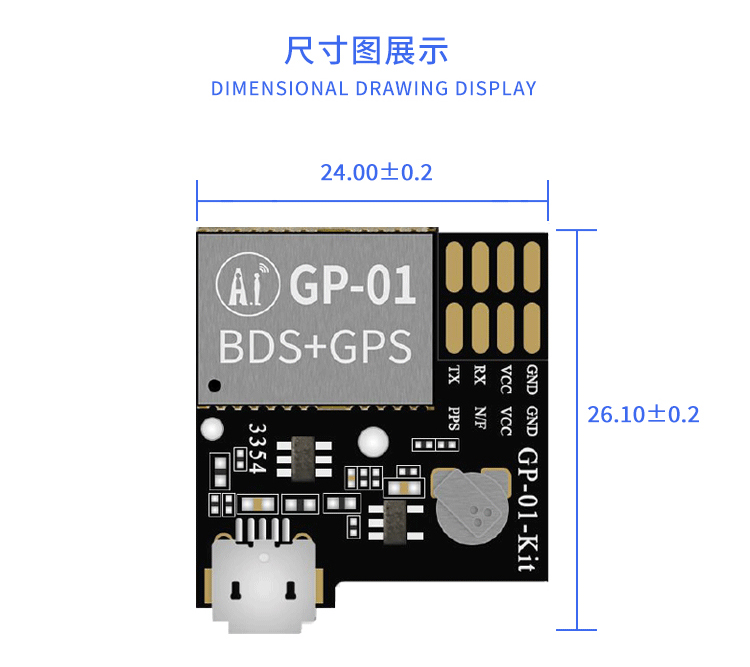

Product Size
Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
