Product Descriptions

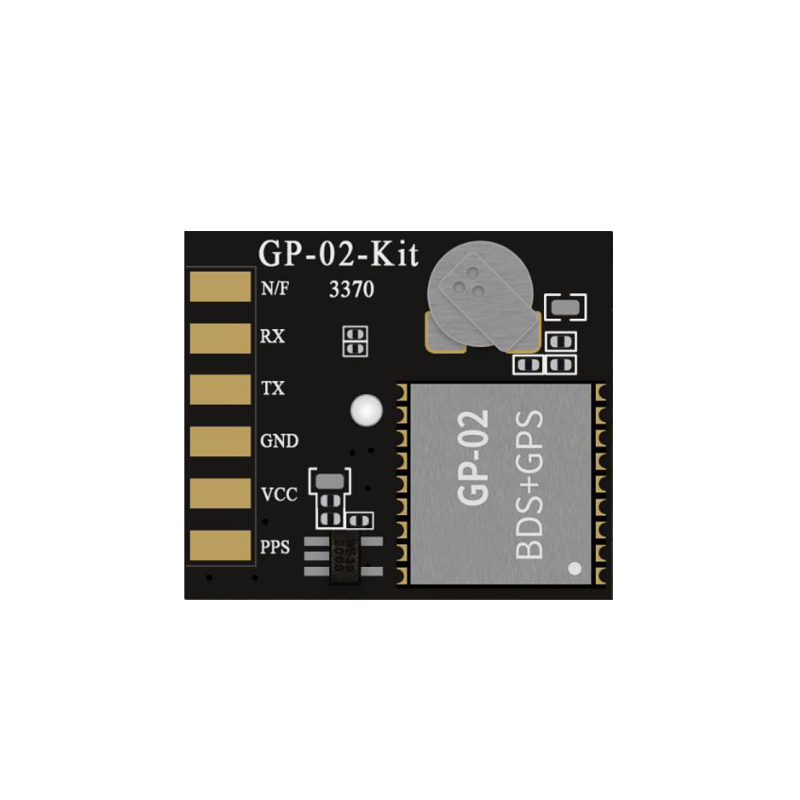

The GP-02-Kit main chip AT6558R satellite positioning chip is a high-performance BDS/GNSS multi-mode satellite navigation receiver SOC development board. Integrated RF front-end, digital baseband processor, 32-bit RISCPU, power management, and active antenna detection and protection functions.
GP-02-Kit supports multiple satellite navigation systems, including China's Beidou Navigation Satellite System (BDS), the United States' GPS, and Russia's GLONASS, enabling multi system joint positioning.
GP-02-Kit is a highly integrated development board with ceramic antennas. The ceramic antennas on the development board have undergone professional debugging, which can help users save time on antenna selection and debugging.
The GP-02-Kit module can be widely used in intelligent devices such as car navigation, smart wearables, drones, etc., and can upgrade multi-mode positioning functions.
Product Specifications
| 模组型号 Module model | GP-02-Kit |
| 模块尺寸 Module Size | 20.3*18.0*3.1(±0.2)MM |
| 模块封装 Module packaging | SMD-6 |
| 工作温度 Operation temperature | -40°C~85 °C |
| 存储环境 Storage environment | -40 ℃~125°C,<90%RH |
| 供电范围 Power supply range | 5V |
| 串口速率 Series Rate | Maximum support 256000bps |
| 认证 Authentication | RoHS |

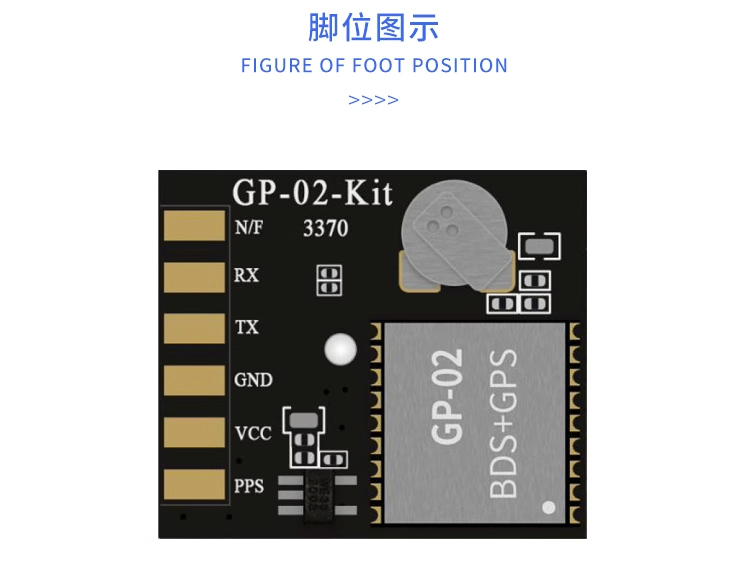

Product Pin interface
| 脚序 Foot sequence | 名称 Name | 功能说明 Function Description |
| 1 | N/F | 关断控制，正常工作保持高电平;内部上拉 Turn off the control and maintain a high level during normal operation; Internally pull up |
| 2 | RX0 | 通用GPI0，默认为UART0的RXD Universal GPI0, default RXD for UART0 |
| 3 | TX0 | 通用GPI0，默认为UART0的TXD Universal GPI0, default TXD for UART0 |
| 4 | GND | 接地 Grounding |
| 5 | VCC | 5V 供电 5V power supply |
| 6 | PPS | 时间脉冲信号 Time pulse signal |

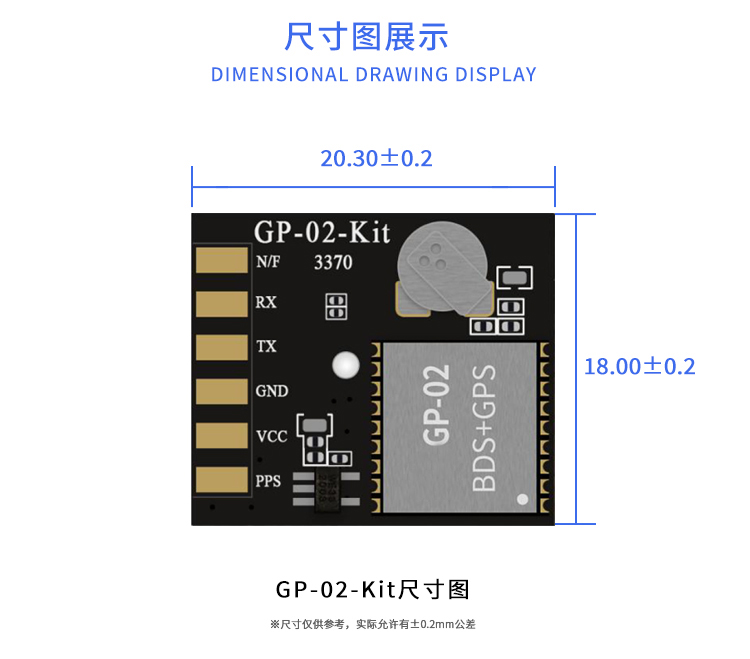

Product Size
