Product Descriptions

EC-01G-Kit is a development board designed for EC-01G modules, which is shared with EC-01 Kit. The development board integrates the CH340C serial chip and SIM card holder, and is equipped with LED network status lights and power indicator lights for easy use by developers.

The EC-01G module integrates a radio frequency transceiver, PA， RF filters, antenna switches, and power management; In the unique MCU mode, it can provide lower operating current and shorter wake-up time. The main chip of GPS is AT6558R, which integrates RF front-end, digital baseband processor, 32-bit RISCPU, and power management function on the chip.

EC-01G comes with AT firmware at the factory, supports TCP/MQTT/HTTP (S) protocol, supports China Netcom and Mobile Global (tested and approved); The power consumption of DRX (2.56s) sleep mode is only 120uA, and PSM sleep mode is only 4uA. It also has a built-in positioning chip that supports BDS/GPS/GLONASS multi system joint positioning and single system independent positioning.

NB IoT technology has attracted much attention due to its low power consumption, stable connection, low cost, and excellent architecture optimization. With the increasing maturity of NB IoT technology, it can be widely applied in fields such as animal husbandry, remote meter reading, manhole cover monitoring, smart homes, street light monitoring, and fire protection.

Product Specifications

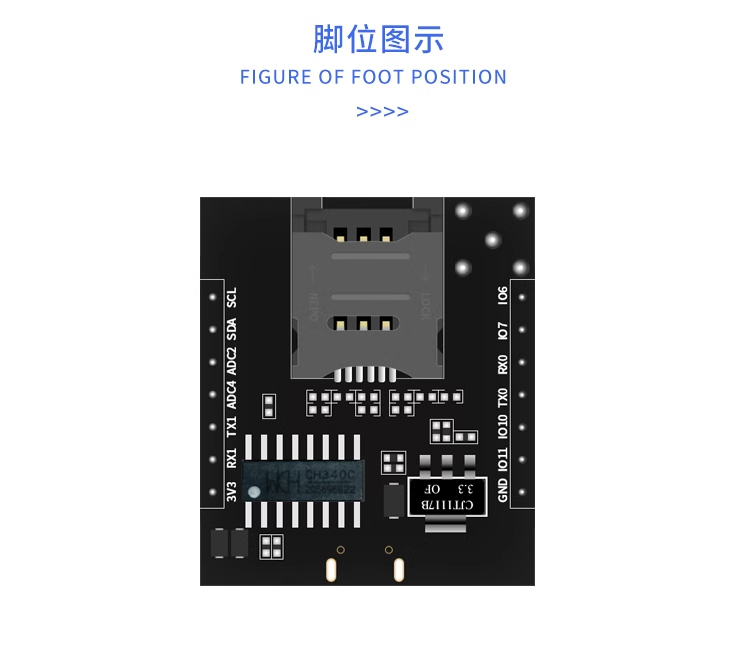

Product Pin interface

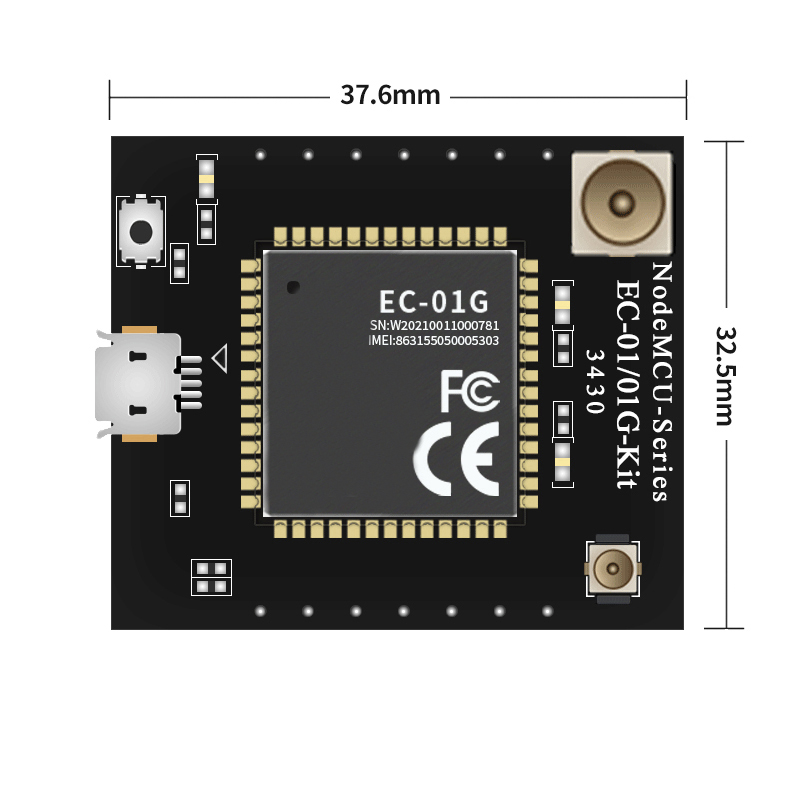

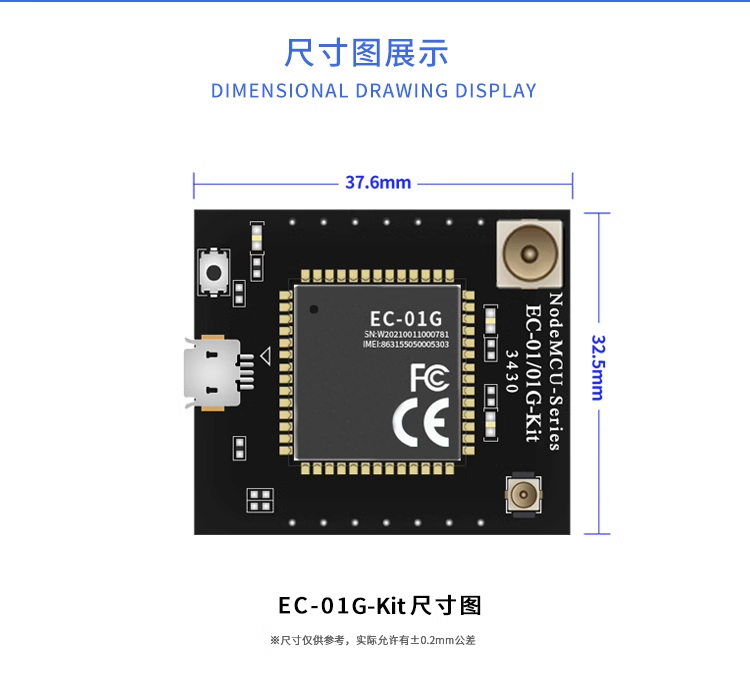

Product Size

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
