Product Descriptions

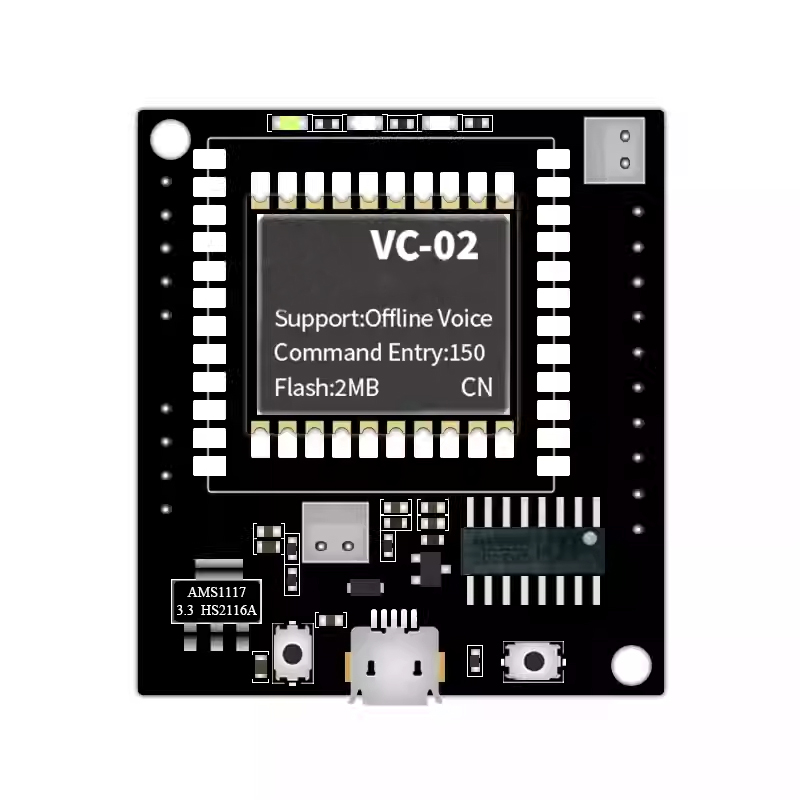

VC-02-Kit is an offline voice development board designed for the VC-02 module, which is shared with VC-01-Kit.
The VC-02-Kit development board integrates the CH340C serial port to USB chip, providing basic debugging and USB upgrade interfaces; The design of wake-up lights and heating/cooling lights provides status indication and control indication, and is easy to debug with simple control functions.
Supports offline recognition of 150 local instructions, supports lightweight RTOS systems, has rich peripheral interfaces, and simple and user-friendly customization tools. Built in 242KB high-speed SRAM and 2MB FLASH; Supports 5V power input, with built-in 5V to 3.3V and 3.3V to 1.2V LDO for chip power supply.
We continuously optimize and innovate algorithms in speech recognition technology, deeply integrating offline recognition algorithms with chip architecture to provide customers with ultra-low cost offline speech recognition solutions. These solutions can be widely and quickly applied to smart homes, various smart small appliances, 86 boxes, toys, lighting fixtures, and other products that require voice control.
Product Specifications
| 模组型号 Module model | VC-02-Kit |
| 模组封装 Module packaging | DIP-19(2.54间距标准排针) (2.54 standard spacing needle arrangement) |
| 尺寸(mm) Size(mm) | 42.2*35.6(±0.2)MM |
| 工作环境 Work environment | -40℃ ~85℃ |
| 存储环境 Storage environment | -40℃~125°C,<90%RH |
| 供电范围 Power supply range | 供电电压 5V，供电电流 >500mA Supply voltage 5V, supply current>500mA |
| 支持接口 Support interfaces | UART/I2C/PWM/DAC/GPIO |
| 可用IO口数量 Number of available IO ports | 5 |
| 串口速率 Series Rate | UART1 defaults to 115200bps, UART0 (IOB8) defaults to 57600 bps |
| Flash | 2MB (built-in) |
| 支持语言 Supporting languages | 中文、英文 Chinese, English |

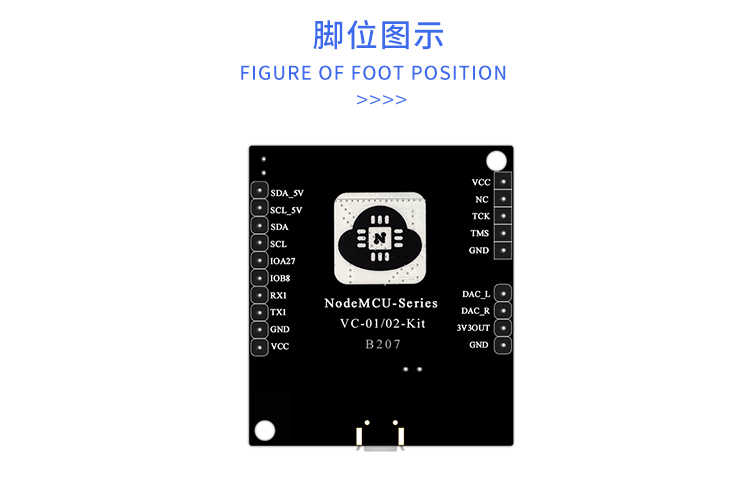

Product Pin definition
| 脚序 Foot sequence | 名称 Name | 功能说明 Function Description |
| 1 | VCC | 5V 电压输入 5V voltage input |
| 2 | NC | 悬空 Floating |
| 3 | TCK | JTAG 时钟引脚 JTAG clock pin |
| 4 | TMS | JTAG 数据引脚 JTAG data pin |
| 5 | GND | 电源地 Power Ground |
| 6 | DAC_L | 预留音频L声道输出，暂不支持该功能 Reserved audio L-channel output, currently not supported |
| 7 | DAC_R | 预留音频 R声道输出，暂不支持该功能 Reserved audio R channel output, currently not supported |
| 8 | 3V3OUT | 3.3V 电压输出 3.3V voltage output |
| 9 | GND | 电源地 Power Ground |
| 10 | VCC | 5V 电压输入 5V voltage input |
| 11 | GND | 电源地 Power Ground |
| 12 | TX1 | UART1_TXD/GPIO_B6 |
| 13 | RX1 | UART1_RXD/GPIO_B7 |
| 14 | IOB8 | UART0 输出端/Log 信息输出 UART0 output terminal/Log information output |
| 15 | IOA27 | GPIO_A17 PIN |
| 16 | SCL | 3.3V IIC 时钟引脚/GPIO_B2/TIM3_PWM(与 5V 电平IIC 通信口不可同时使用) 3.3V IIC clock pin/PIO-B2/TIM3-PWM (cannot be used simultaneously with 5V IIC communication port) |
| 17 | SDA | 3.3V IIC 数据引脚/GPIO_B3/TIM4_PWM(与 5V 电平IIC 通信口不可同时使用) 3.3V IIC data pin/PIO-B3/TIM4-PWM (cannot be used simultaneously with 5V level IIC communication port) |
| 18 | SCL_5V | 5V IIC时钟引脚(与3.3V电平IIC通信口不可同时使用) 5V IIC clock pin (cannot be used simultaneously with 3.3V level IIC communication port) |
| 19 | SDA_5V | 5V IIC数据引脚(与3.3V电平IIC通信口不可同时使用) 5V IIC data pin (cannot be used simultaneously with 3.3V level IIC communication port) |

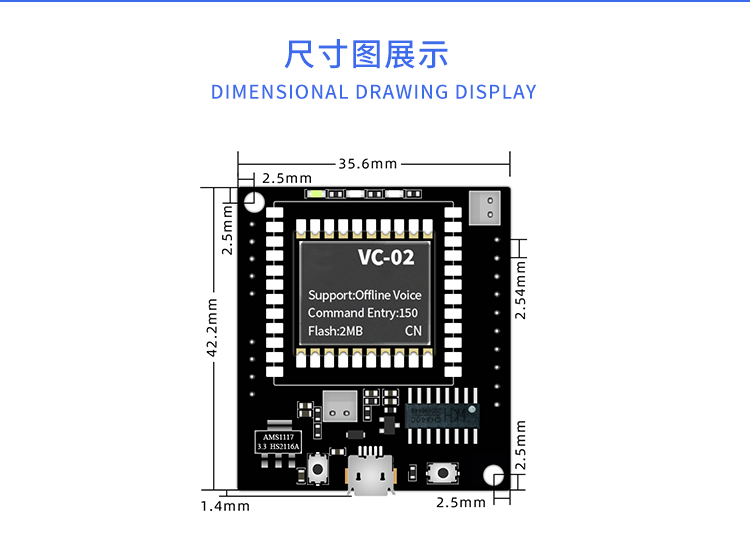

Product Size
Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
