Product Descriptions

AiPi LoRabBoard is an expansion board suitable for AiPi UNO-ET485 development board, carrying Ra-08 module and 1.9-inch MIPI-DBI capacitive touch screen.

Ra-08 operates in the frequency range of 410MHz~525MHz and is compatible with LoRa modules such as Ra-01/SC and Ra-02. The antenna defaults to using a 433MHz small chili antenna (the communication distance needs to be measured according to the specific usage environment). If replacing the Ra-08H module, an antenna in the 803MHz~930MHz frequency band is required. The 1.9-inch screen has a MIPI-DBI interface, 170 * 320 pixels, and supports capacitive touch.

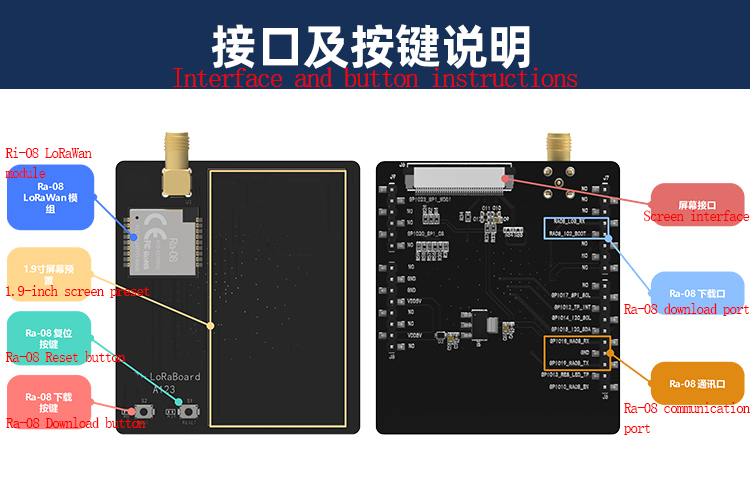

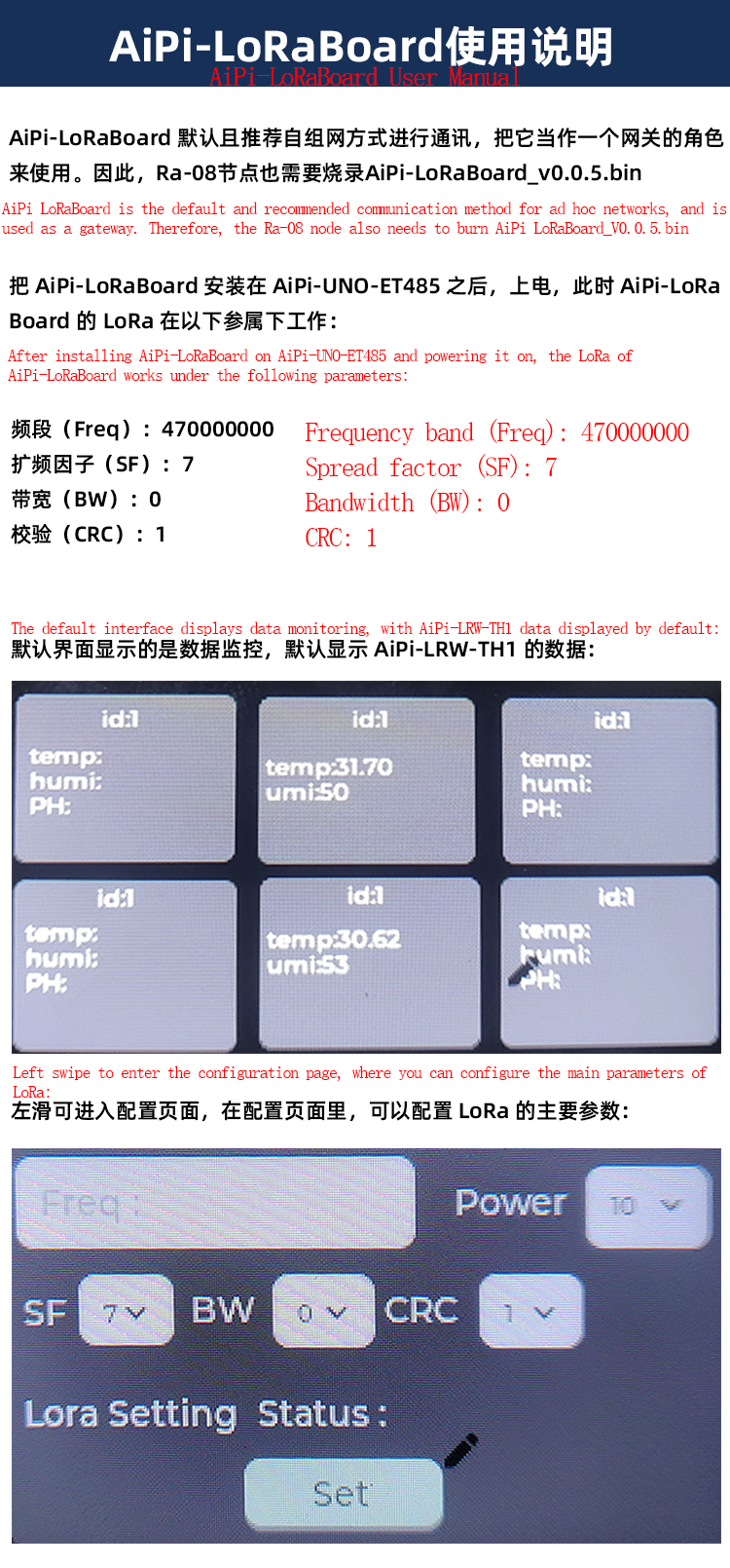

Product Instructions

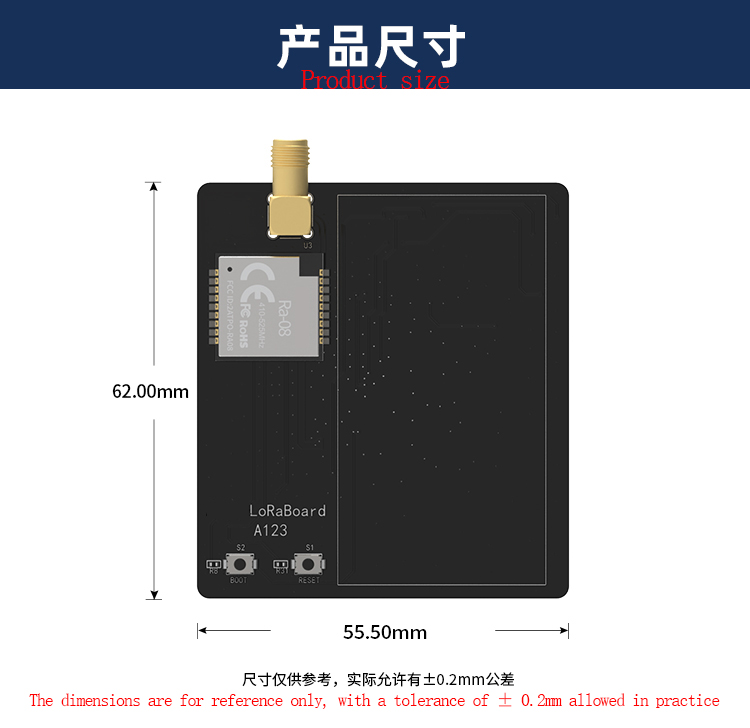

Product Size

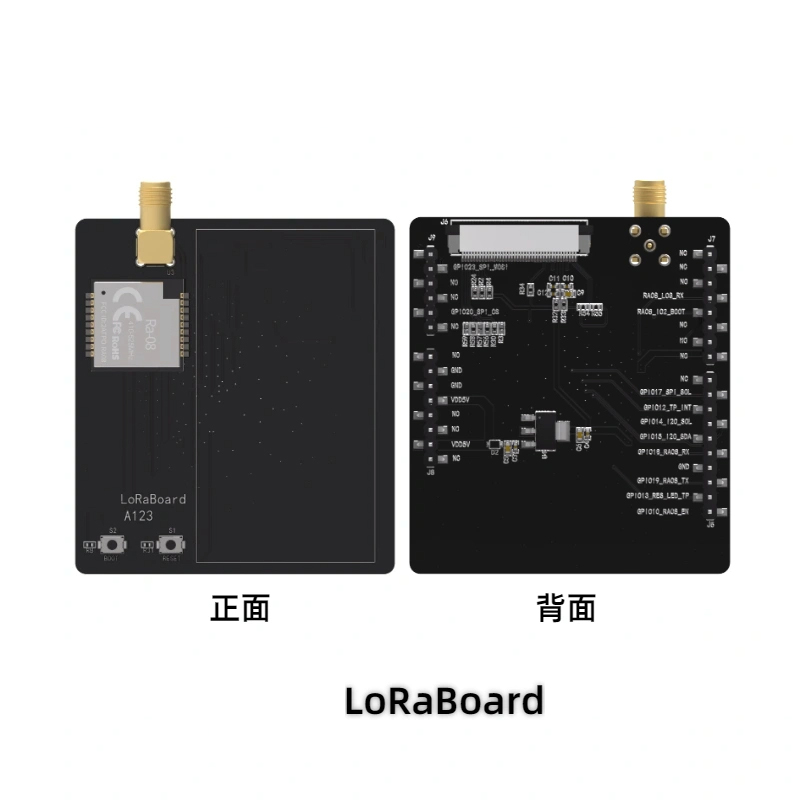

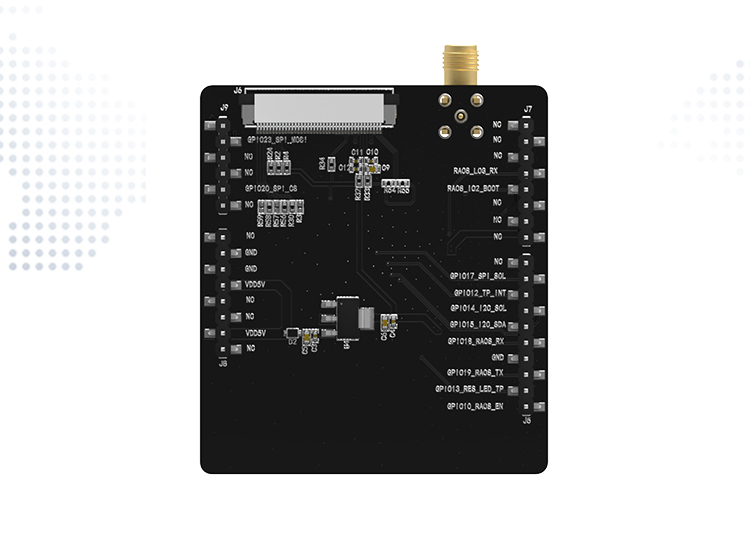

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
