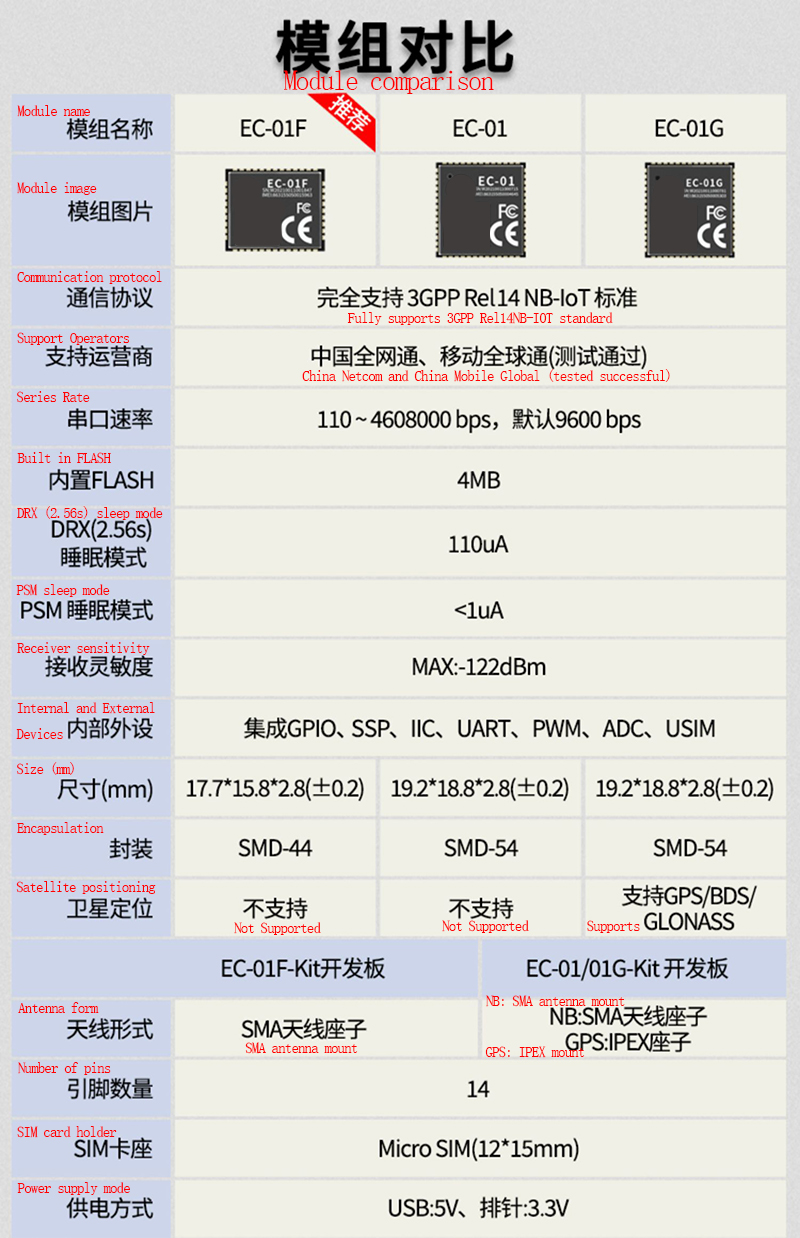

Product Comparison

Product Descriptions

EC-01 is an NB module. The main chip scheme used in the NB section is EC616S. This chip features a highly integrated NB IoT SoC, supports ultra-low power consumption, and fully supports the 3GPP Rel14NB IoT standard, making it a cost-effective NB IoT chip.

The EC-01 module inherits the RF transceiver, PA， RF filters, antenna switches, and power management; This module has excellent communication performance and stable performance in various wireless environments; Excellent performance in various modes (PSM, DRX, eDRX, connected state); In the unique MCU mode, it can provide lower operating current and shorter wake-up time.

EC-01 comes with AT firmware at the factory, supports TCP/MQTT/HTTP (S) protocol, and supports operators China Netcom and Mobile Global Communications (tested and approved); The power consumption of DRX (2.56S) sleep mode is 120 μ A, while PSM sleep mode is only 4HA. It can support a wide range of voltage supply from 2.2V to 4.5V (with 3.3V to 4.5V being the default supply range, and 2.2V supply needs to be customized) and supports multiple frequency bands including Band3/5/8.

NB IoT is an emerging IoT technology that has attracted much attention due to its low power consumption, stable connection, low cost, and excellent architecture optimization. With the maturity of NB IoT technology, it can be widely applied in fields such as animal husbandry, remote meter reading, manhole cover monitoring, smart homes, street light monitoring, and fire protection.

Product Specifications

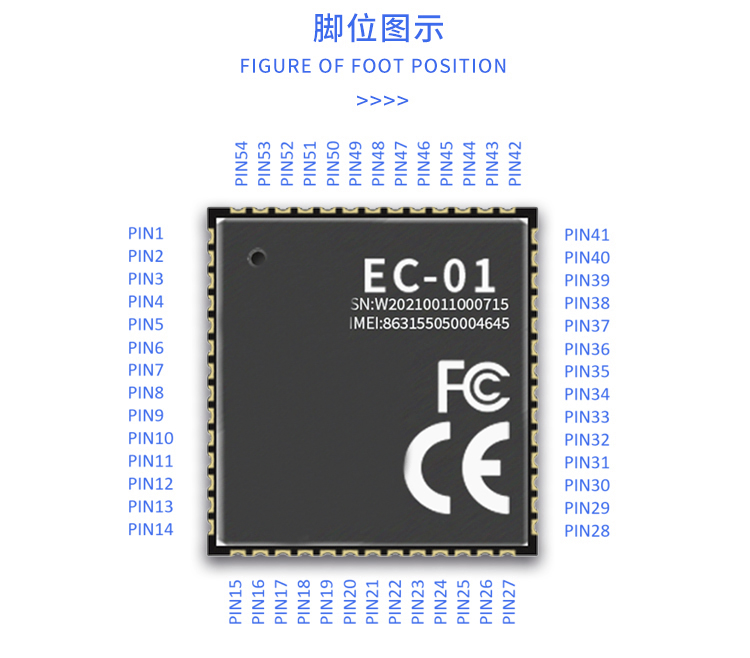

Product Pin Description

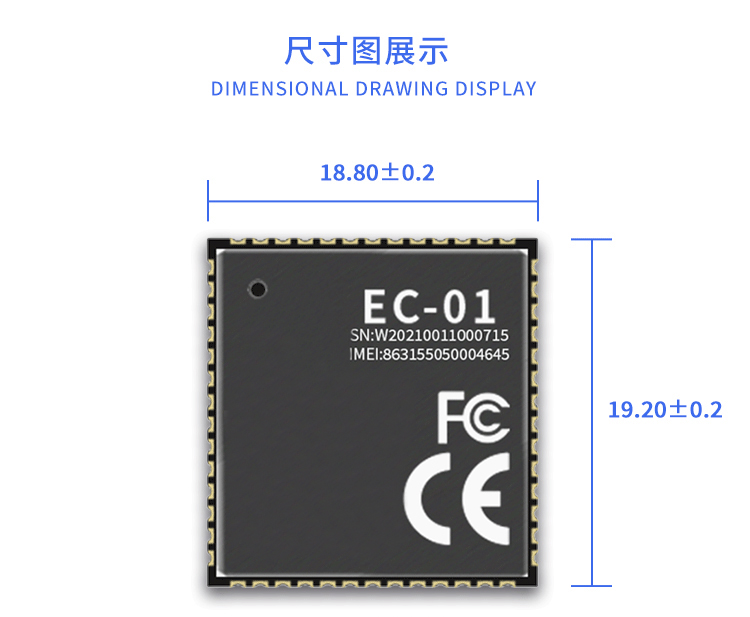

Product Size

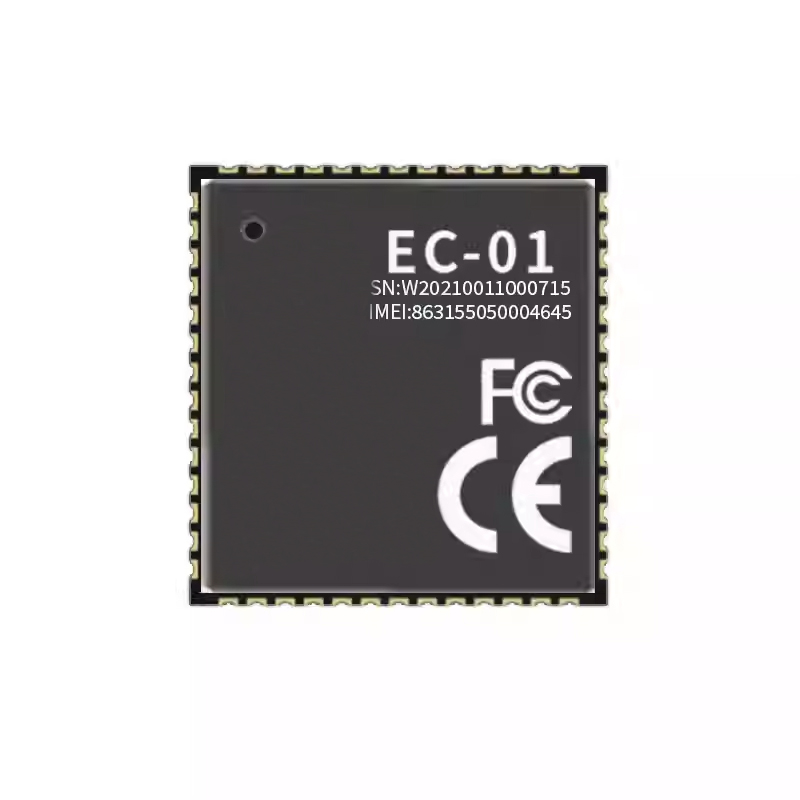

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
