Product Descriptions

EC-01F Kit is an NB IoT development board. The main chip scheme used in the NB-IOT part is EC616S, which has a highly integrated NB IoT SoC development board and supports ultra-low power consumption. It fully supports the 3GPP Rel14NB-I0T standard and is a cost-effective NB IoT chip.

The EC-01F module integrates a radio frequency transceiver, PA， RF filter antenna switch and power management; Excellent and stable communication performance in various wireless environments; Excellent power consumption performance in various modes (PSM, DRX, eDRX, connected state); In the unique MCU mode, it can provide lower operating current and shorter wake-up time.

EC-01F comes with AT firmware at the factory, supports TCP/MQTT/HTTP (S) protocol, and supports China Netcom and Mobile Global Communication (tested and approved); The power consumption of DRX (2.56s) sleep mode is only 120UA, and PSM sleep mode is only 4uA; it can support a wide range of voltage supply from 2.2V to 4.5V (with 2.2V power supply customized), and supports multiple frequency bands including Band3/5/8.

NB IoT is an emerging IoT technology that has attracted much attention due to its low power consumption, stable connection, low cost, and excellent architecture optimization. With the increasing maturity of NB IoT technology, it can be widely applied in fields such as animal husbandry, remote meter reading, manhole cover monitoring, smart homes, street light monitoring, and fire prevention.

Product Specifications

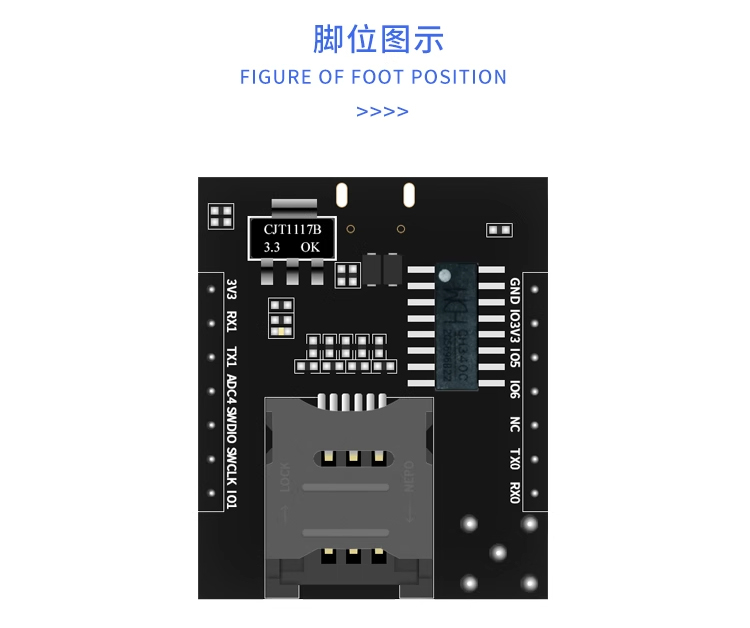

Product Pin Description

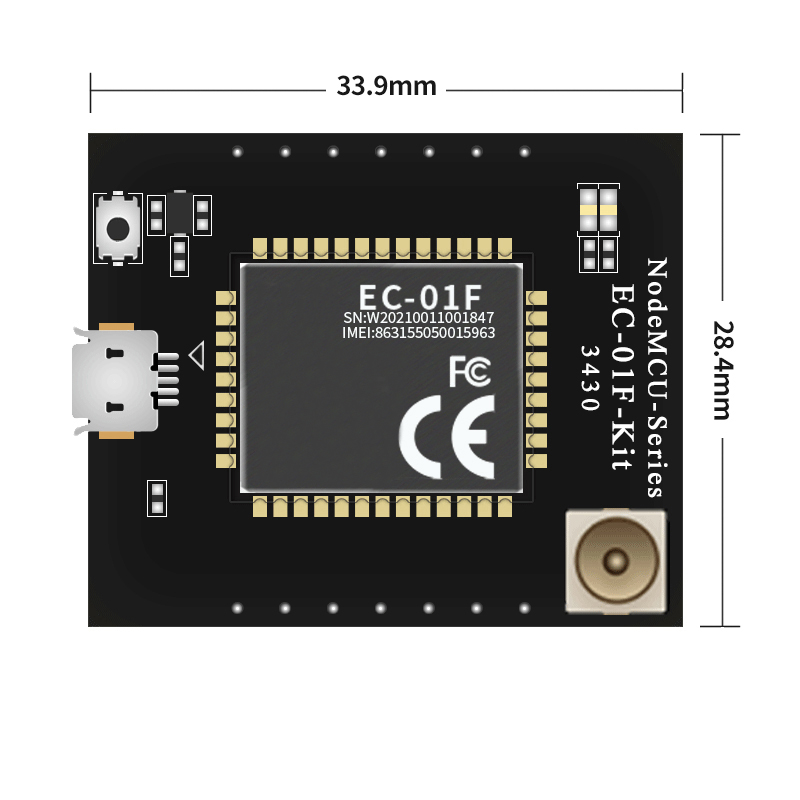

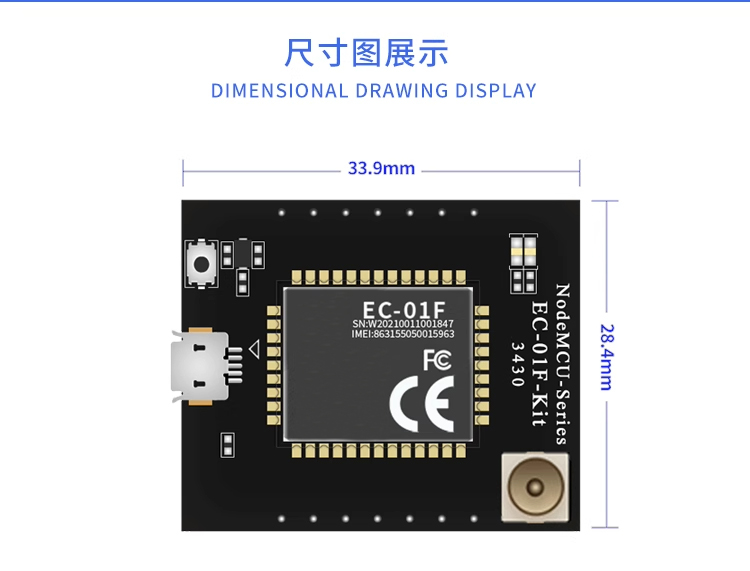

Product Size

Product Show
