Product Descriptions

EC-01 Kit is a development board designed for EC-01 module, which is shared with EC-01G-Kit. The development board integrates CH340C serial chip and SIM card holder, and has LED network status light and power indicator light on board, making it convenient for developers to use.

The EC-01 module integrates a radio frequency transceiver, PA， RF filters, antenna switches, and power management; Excellent and stable communication performance in various wireless environments; Excellent power consumption performance in various modes (PSM, DRX, eDRX, connected state); In the unique MCU mode, it can provide lower operating current and shorter wake-up time.

EC-01 comes with AT firmware at the factory, supports TCP/MQTT/HTTP (S) protocol, and supports China Netcom and Mobile Global Communication (tested and approved); The power consumption of DRX (2.56s) sleep mode is only 120UA, and PSM sleep mode is only 4uA; it can support a wide range of voltage supply from 2.2V to 4.5V (with 2.2V power supply customized), and supports multiple frequency bands including Band3/5/8.

NB IoT is an emerging IoT technology that has attracted much attention due to its low power consumption, stable connection, low cost, and excellent architecture optimization. As NB IoT technology becomes more mature, it can be widely applied in fields such as animal husbandry, remote meter reading, manhole cover monitoring, smart homes, street light monitoring, and fire prevention.

Product Specifications

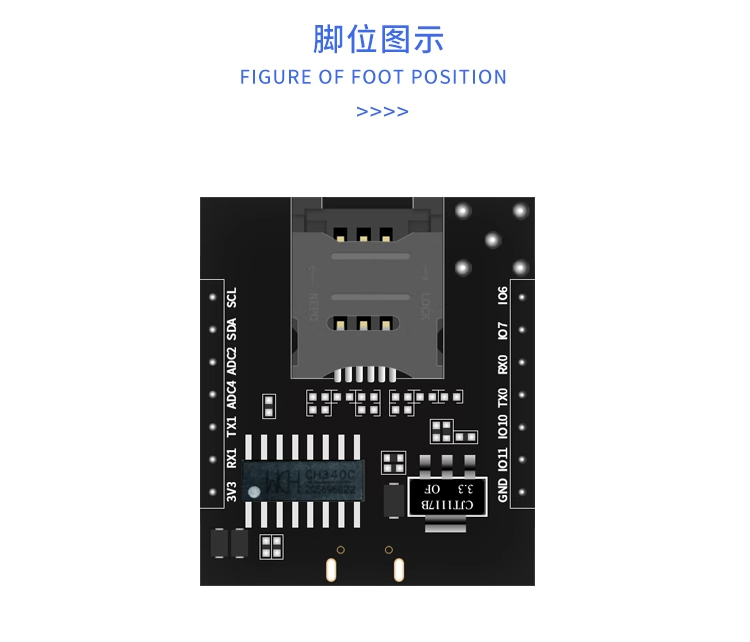

Product Pin Description

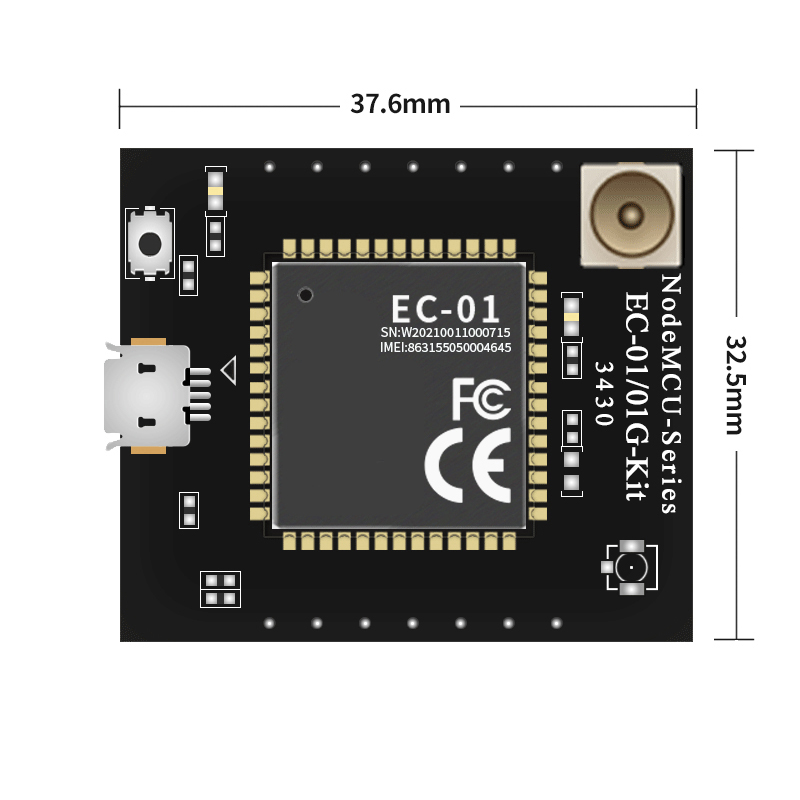

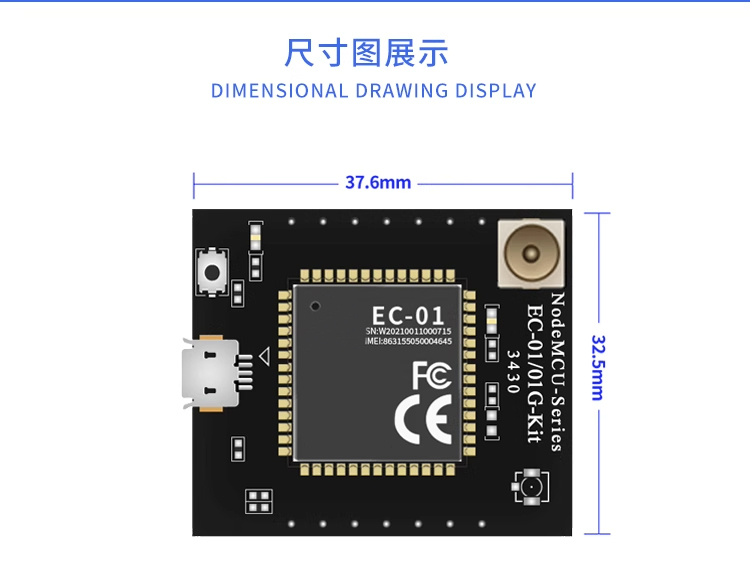

Product Size

Product Show
