Product Descriptions

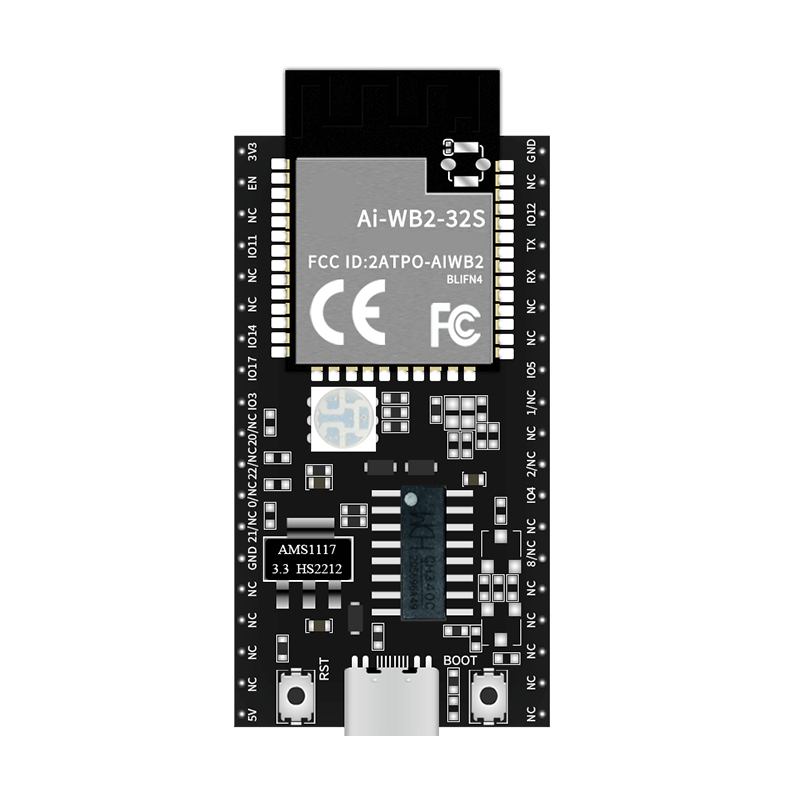

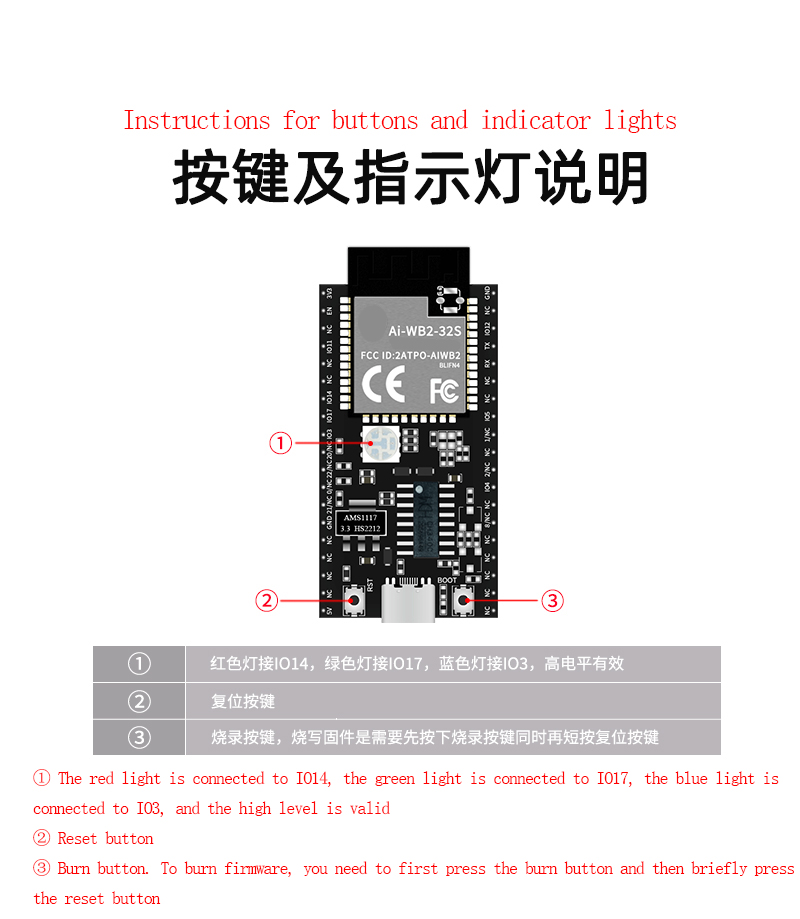

Ai-WB2-32S Kit is a development board designed for the Ai-WB2-32S module. Ai-WB2-32S is a Wi Fi&BT module equipped with BL602 chip as the core processor, supporting Wi Fi 802.11b/g/n protocol and BLE5.0 protocol. The BL602 chip is equipped with a low-power 32-bit RISCPU, 276KBRAM, and a variety of peripheral interfaces including SDIO, SPI, UART, I2C, IR remote, PWM, ADC, DAC, PIR, and GPIO.
Product Specifications
| 模组型号 Module model | Ai-WB2-32S-Kit |
| 模组封装 Module packaging | DIP-38 |
| 尺寸(mm) Size(mm) | 55.05*25.40(±0.2)MM |
| 天线形式 Antenna form | 板载PCB天线 Onboard PCB antenna |
| 频谱范围 Spectrum range | 2400-2483.5MHz |
| 工作环境 Work environment | -40℃~85 ℃ |
| 存储环境 Storage environment | -40℃~125°C,<90%RH |
| 供电范围 Power supply range | 供电电压3.3V OR 5V，供电电流≥500mA Supply voltage 3.3V OR 5V,supply current≥500mA |
| 支持接口 Support interfaces | UART/GPIO/ADC/PWM/I2C/SPI |
| IO口数量 Number of IO ports | 15个 Default 15 |
| 串口速率 Series Rate | 默认115200bps Default 115200bps |
| 安全性 Safety | WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3 |
| Flash | 默认4MByte Default 4MByte |

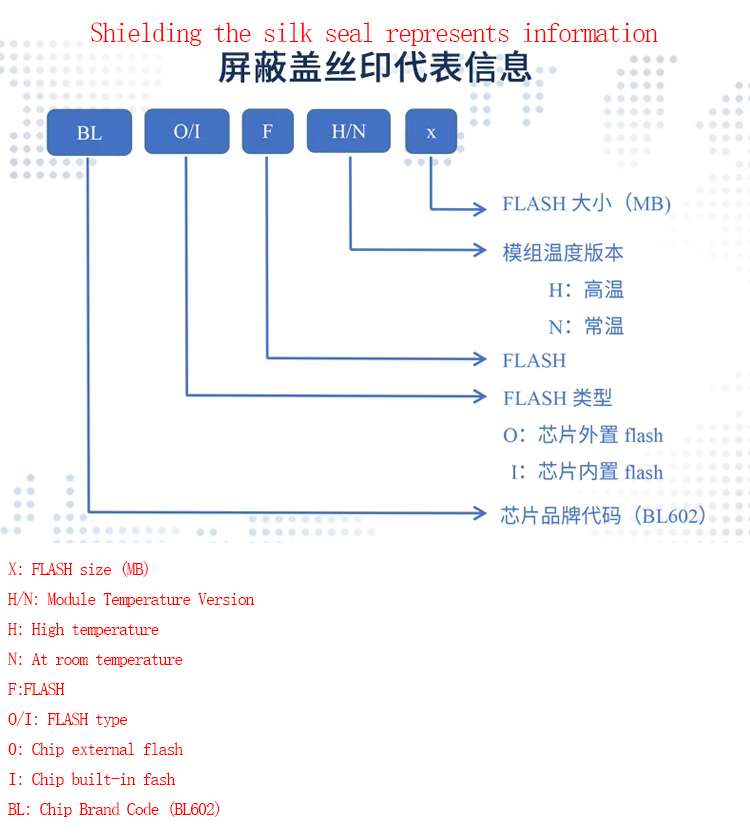

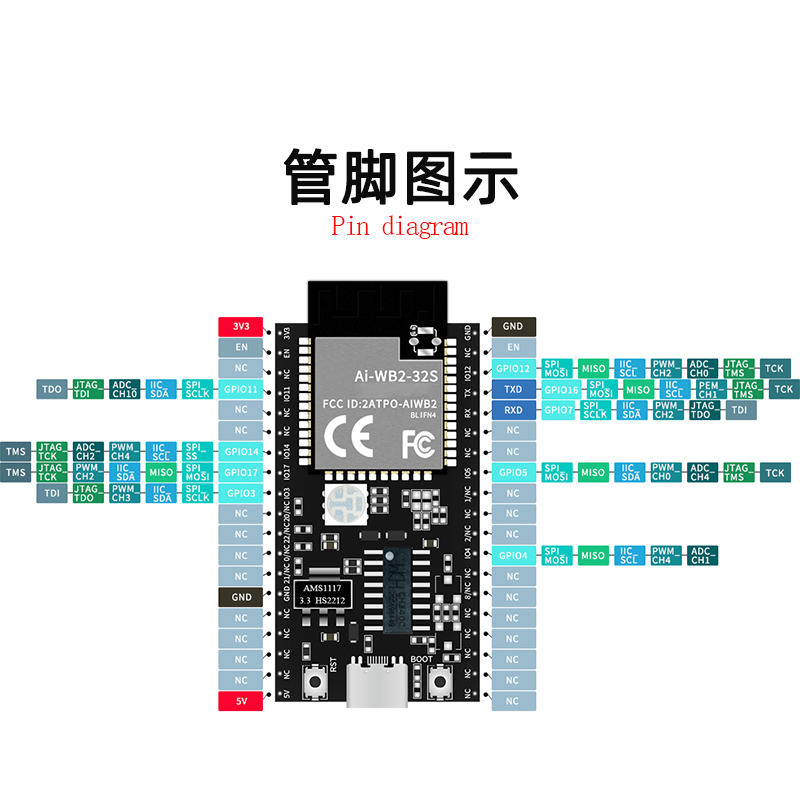

Product Pin Description
| 脚序 Foot sequence | 名称 Name | 功能说明 Function Description |
| 1 | 3V3 | 3.3V 供电;外部供电电源输出电流建议在 500mA 以上 3.3V power supply; It is recommended that the output current of the external power supply be above 500mA |
| 2 | EN | 默认作为芯片使能，高电平有效 Default as chip enable, high level effective |
| 3 | NC | NC |
| 4 | IO11 | GPIO11/SPI_SCLK/IIC_SDA/ADC_CHIO/JTAG_TDI/TDO |
| 5 | NC | NC |
| 6 | 空脚 | NC |
| 7 | IO14 | GPIO14/SPI_SS/IIC_SCL/PWM_CH4/ADC_CH2/JTAG_TCK/TMS |
| 8 | IO17 | GPIO17/SPI_MOSI/MISO/IIC_SDA/PWM_CH2/JTAG_TCK/TMS |
| 9 | IO3 | GPIO3/SPI_SCLK/IIC_SDA/PWM_CH3/JTAG_TDO/TDI |
| 10 | IO20/NC | 默认 NC，不可使用 Default NC, not available for use |
| 11 | IO22/NC | 默认 NC，不可使用 Default NC, not available for use |
| 12 | IO0/NC | 默认 NC，不可使用 Default NC, not available for use |
| 13 | IO21/NC | 默认 NC，不可使用 Default NC, not available for use |
| 14 | GND | 接地 |
| 15 | NC | NC |
| 16 | NC | NC |
| 17 | NC | NC |
| 18 | NC | NC |
| 19 | 5V | 5V供电;外部供电电源输出电流建议在 500mA 以上 5V power supply; It is recommended that the output current of the external power supply be above 500mA |
| 20 | NC | NC |
| 21 | NC | NC |
| 22 | NC | NC |
| 23 | NC | NC |
| 24 | NC | NC |
| 25 | IO8/NC | 默认 NC，不可使用 Default NC, not available for use |
| 26 | NC | NC |
| 27 | IO4 | GPIO4/SPI_MOSI/MISO/IIC_SCL/PWM_CH4/ADC_CH1 |
| 28 | IO2/NC | 默认 NC，不可使用 Default NC, not available for use |
| 29 | NC | NC |
| 30 | IO1/NC | 默认 NC，不可使用 Default NC, not available for use |
| 31 | IO5 | GPIOS/SPI_MOSI/MISO/IIC_SDA/PWM_CH0/ADC_CH4/JTAG_TMS/ |
| 32 | NC | NC |
| 33 | NC | NC |
| 34 | RX | RXD/GPIO7/SPI_SCLK/IIC_SDA/PWM_CH2/JTAG_TDO/TDI |
| 35 | TX | TXD/GPIO16/SPI_MOSI/MISO/IIC_SCL/PWM_CH1/JTAG_TMS/TCK |
| 36 | IO12 | GPIO12/SPI MOSI/MISO/IIC SCL/PWM CH2/ADC CH0/JTAG TMS |
| 37 | NC | NC |
| 38 | GND | GND |

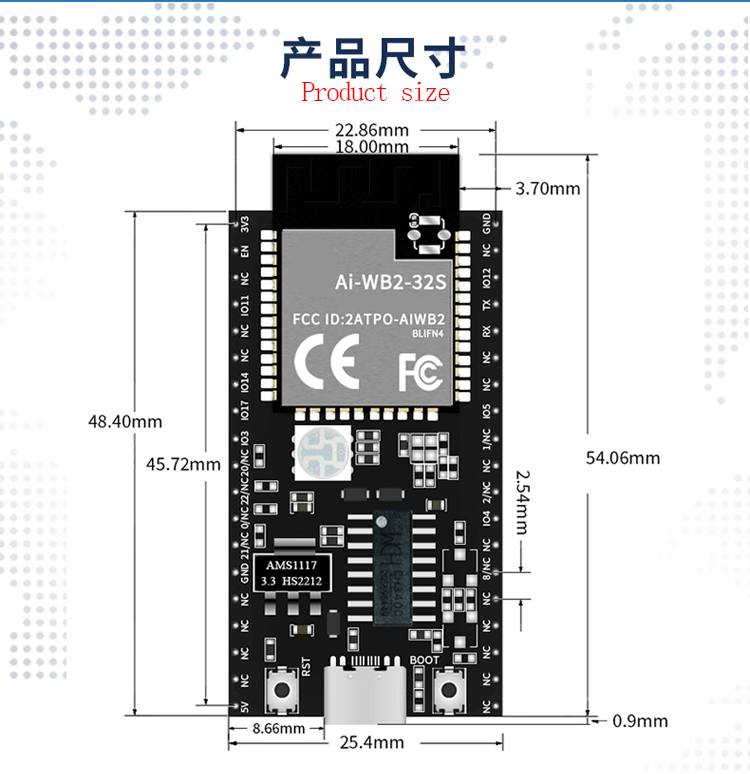

Product Size
Product Performance
Wi Fi RF Performance Table
| 描述 Describe | 典型值 Typical values | 单位 Unit | ||
| 频谱范围 Spectrum range | 2400~2483.5 | MHz | ||
| 输出功率 Output power | ||||
| 模式 Mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 单位 Unit |
| 11n 模式下HT20，PA输出功率为 | - | 16 | - | dBm |
| 11g 模式下，PA输出功率为 | - | 17 | - | dBm |
| 11b 模式下，PA输出功率为 | - | 19 | - | dBm |
| 接收灵敏度 Receiver sensitivity | ||||
| 模式 Mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 单位 Unit |
| 11b,1 Mbps | - | -98 | - | dBm |
| 11b, 11 Mbps | - | -90 | - | dBm |
| 11g, 6 Mbps | - | -93 | - | dBm |
| 1lg,54 Mbps | - | -76 | - | dBm |
| 11n,HT20(MCS7) | - | -73 | - | dBm |
BLE RF Performance Table
| 描述 Describe | 典型值 Typical values | 单位 Unit | ||
| 频谱范围 Spectrum range | 2400~2483.5MHz | MHz | ||
| 输出功率 Output power | ||||
| 速率模式 Rate mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 单位 Unit |
| 1Mbps | - | 9 | 15 | dBm |
| 接收灵敏度 Receiver sensitivity | ||||
| 速率模式 Rate mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 单位 Unit |
| 1Mbps sensitivity @ 30.8% PER | - | -96 | - | dBm |
The following power consumption data is based on a 3.3V power supply, an ambient temperature of 25 ° C, and measured using an internal voltage regulator.
·All measurements were completed at the antenna interface with a filter in place.
·All emission data is measured based on a 100% duty cycle in continuous emission mode.
| 模式 Mode | 最小值 Minimum value | 平均值 Average value | 最大值 Maximum value | 单位 Unit |
| 发射(Transmit)802.1lb，11Mbps，POUT=+21dBm | - | 260 | - | mA |
| 发射(Transmit)802.11g，54Mbps，POUT=+18dBm | - | 245 | - | mA |
| 发射(Transmit)802.11n，MCS7，POUT=+17dBm | - | 230 | - | mA |
| 接收(Receive)802.11b | - | 65 | - | mA |
| 接收(Receive)802.11g | - | 65 | - | mA |
| 接收(Receive)802.11n | - | 65 | - | mA |
| Deep-Sleep | - | 12 | - | μA |
Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
