Product Details
|
Description PI5V330S is a true bidirectional Quad 2-channel multiplexer/demultiplexer recommended for both RGB and composite video switching applications. The video switch can be driven from a current output RAMDAC or voltage output composite video source.
• High-performance solution to switch between video sources • Wide bandwidth: 570 MHz (typical) • Low On-Resistance: 5Ω (typical) • Low crosstalk at 10 MHz: –80dB • Ultra-low quiescent power (0.1µA typical) • Single supply operation: +5.0V • Fast switching: 10ns • ESD > 5KV HBM, 10KV I/O to GND • Packaging (Pb-free & Green Available): – 16-pin 150-mil wide plastic SOIC (W) – 16-pin 150-mil wide plastic QSOP (Q) |
Product Description
| Type | Description |

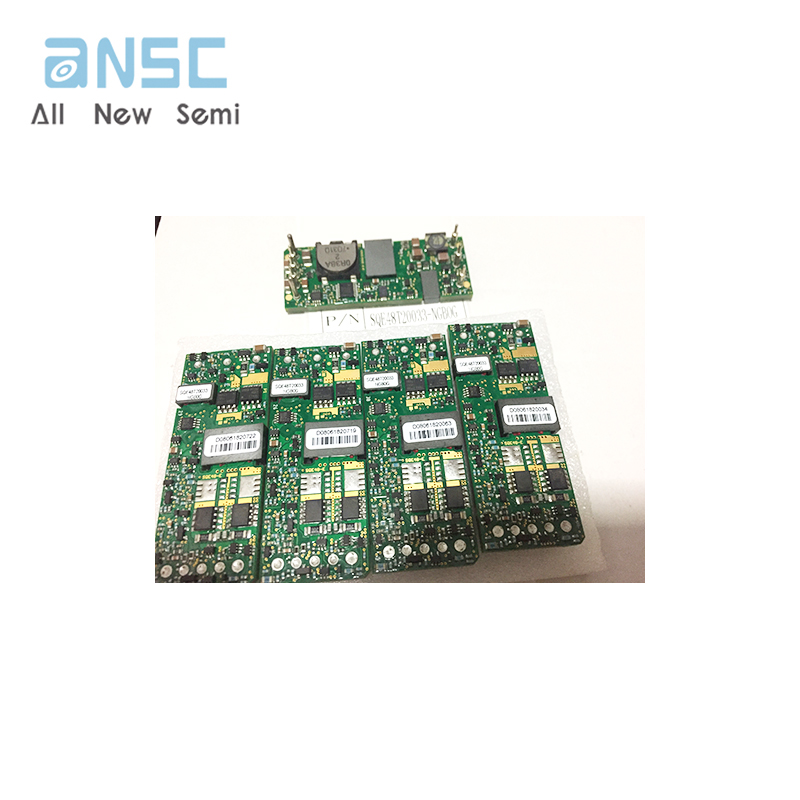

| ANSC PART# | ANSC- SQE48T20033-NGB0G |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | / |
| Series |
SemiQ™ SQE48T |
| Packaging | Bulk |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 66 W |
| Voltage - Isolation | 2 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 92% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.41" H (58.4mm x 22.9mm x 10.4mm) |
| Control Features | Enable, Active Low |
| Base Product Number | SQE48T20033 |
