Product Details
|
The PTH04040 is a next generation series of non-isolated dc-dc converters offering some of the most advanced POL features available in the industry. The primary new feature provides for sequencing between multiple modules, a function, which is becoming a necessity for powering advanced silicon including DSP’s, FPGA’s and ASIC’s requiring controlled power-up and power-down Other industry leading features include margin up/down controls and efficiencies up to 96%. The PTH04040 has an input voltage of 2.95 Vdc to 5.5 Vdc and offers a wide 0.8 Vdc to 2.5 Vdc output voltage range with up to 60 A output current, which allows for maximum design flexibility and a pathway for future upgrades. • 60 A output current (7) • 3.3/5 V input voltage (2.95 Vdc to 5.5 Vdc) • Wide-output voltage adjust (0.8 Vdc to 2.5 Vdc) • Auto-track™ sequencing* • Margin up/down controls • Efficiencies up 93% • Output ON/OFF inhibit • Differential remote sense • Programmable input Under-Voltage Lockout (UVLO) • Point-of-Load-Alliance (POLA) compatible • Available RoHS compliant |
Product Description
| Type | Description |
| ANSC PART# | ANSC - PTH04070WAH |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Original |
| Series | PTH04070W |
| Packaging | Tray |
| Part Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.9 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 3A |
| Applications | ITE (Commercial) |
| Features | UVLO |
| Operating Temperature |
-40°C ~ 85°C |
| Efficiency | 92% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) |
| Base Product Number | PTH04070 |

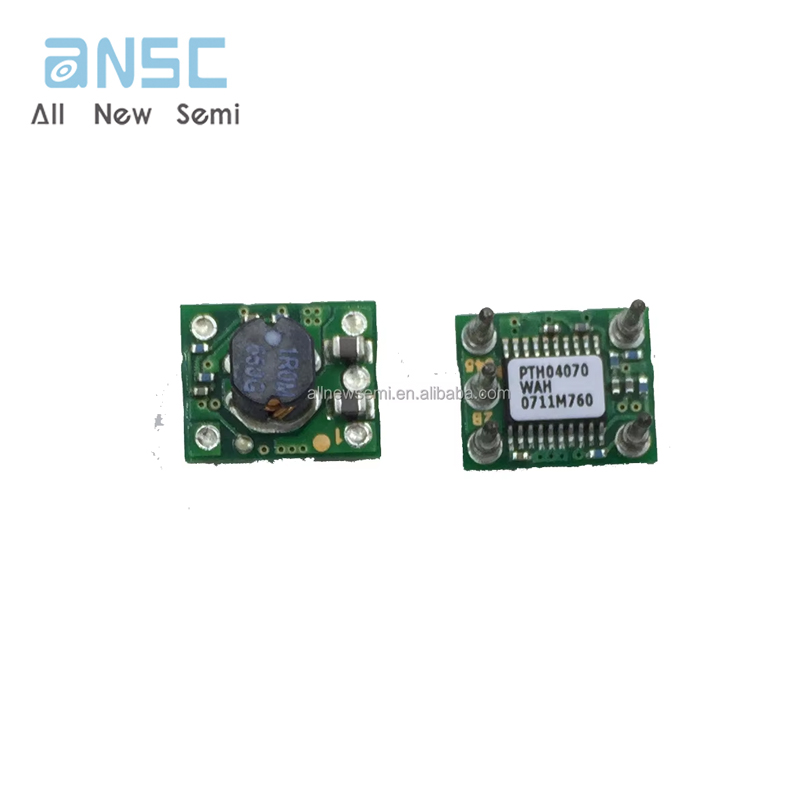

Actual image of the product
