Product Description
The TPS82085SILT is a non-isolated, positive output, adjustable DC-DCconverter module, part of the MicroSip? series. This surface-mount module is designed to provide a high-efficiency, low-noise power supply solution for various applications, including ITE (Commercial) environments.
Product Features
Adjustable output voltage from 800mV to 6V
High efficiency of 95%
Pulse Width Modulation (PWM) control technique
Current/voltage-mode control
Synchronous rectifier for improved efficiency
Operating temperature range of -40°C to 125°C
Low quiescent current of 17μA
Lead-free and RoHS3 compliant
Product Applications
Primary applications: ITE (Commercial) environments, such as data centers,
telecommunications, and industrial control systems
Secondary applications: medical devices, automotive systems, and consumer electronics
Product Description
| Type | Description |
| ANSC PART# | ANSC- TPS82085SILT |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Original |
| Series | MicroSip™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 6V |
| Voltage - Output 1 | 0.8 ~ 6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Efficiency | 95% |
| Mounting Type | Surface Mount |
| Package / Case | 8-LDFN Exposed Pad |
| Size / Dimension | 0.12" L x 0.11" W x 0.05" H (3.0mm x 2.8mm x 1.3mm) |
| Supplier Device Package | 8-uSIP (3x2.8) |
| Control Features | - |
| Approval Agency | - |
| Base Product Number | TPS82085 |

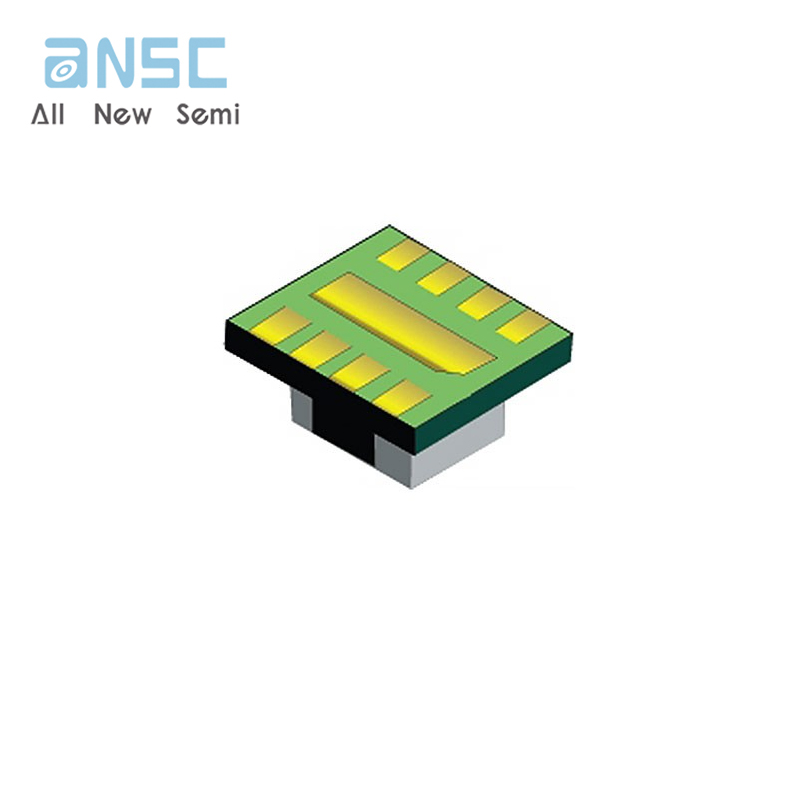

Actual image of the product

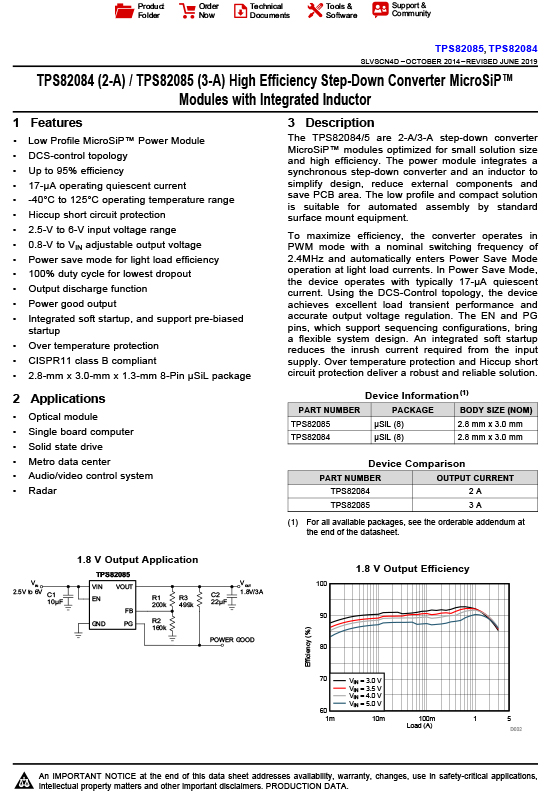

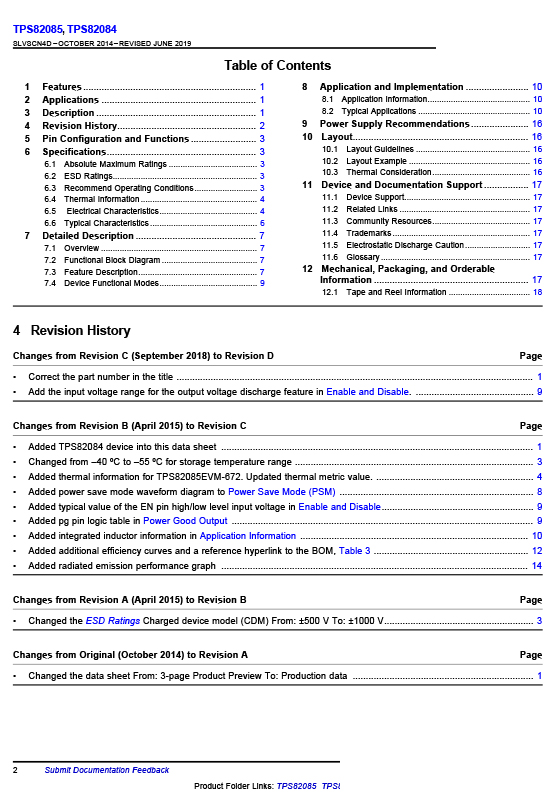

Product datasheet
For more information, please download
