Product Descriptions

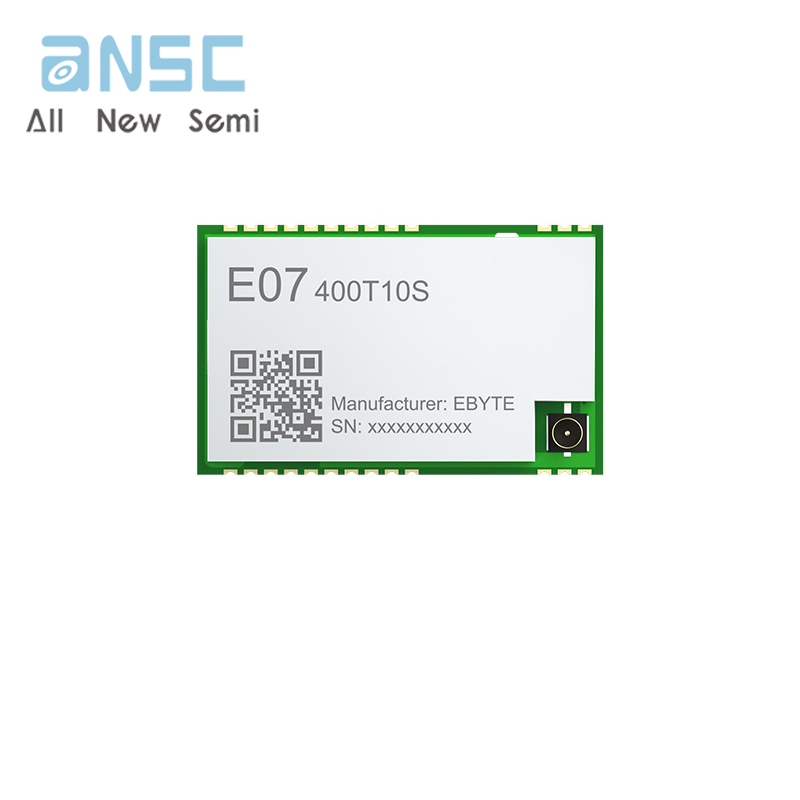

E07-400T10s is a 410-450MHz SMT wireless module independently developed based on MSP430FR2433 and CC1101 produced by Texas Instruments (TI), which supports secondary development.

Since the very mature MSP430FR2433 and CC1101 are adopted as the core of the module, its stability is well received by users, and there is no need to worry about compatibility. This module is mainly aimed at intelligent home, industry, scientific research and medical treatment and short-range wireless communication equipment. It can provide extensive hardware support for packet processing, data buffering, burst transmission, received signal strength indication (RSSI), idle channel evaluation (CCA), link quality indication, and wireless wake-up (WOR). Industrial grade high-precision 26MHz crystal oscillator is used to ensure reliable and stable wireless communication quality.

Product Features

 Under ideal conditions, the communication distance can reach 1500m;

 The maximum transmission power is 10mW, and the software is multi-level adjustable;

 Support license free ISM 433MHz band;

 Support data transmission rate of 0.6kbps ~ 500kbps;

 Support multiple modulation modes (OOK, ASK, GFSK, 2-FSK, 4-FSK and MSK);

 Independent 64 byte RX FIFO and TX FIFO;

 Support 2.5-5.5v power supply, and power supply greater than 5V can ensure the best performance;

 Industrial standard design, supporting long-term use at - 40 ~ 85 ℃;

 IPEX interface, which can easily connect external antenna;

 Support RSSI (received signal strength indication) and LQI (link quality indication);

 Connect with MCU through 4-wire SPI interface, and provide 2 universal digital output pins with settable functions.

Product Applications

 Smart home and industrial sensors;

 Wireless alarm safety system;

 Building automation solutions;

 Wireless industrial remote controller;

 Healthcare products;

 Advanced meter reading architecture (AMI);

 Application in automobile industry

Product Specifications
