Product Descriptions

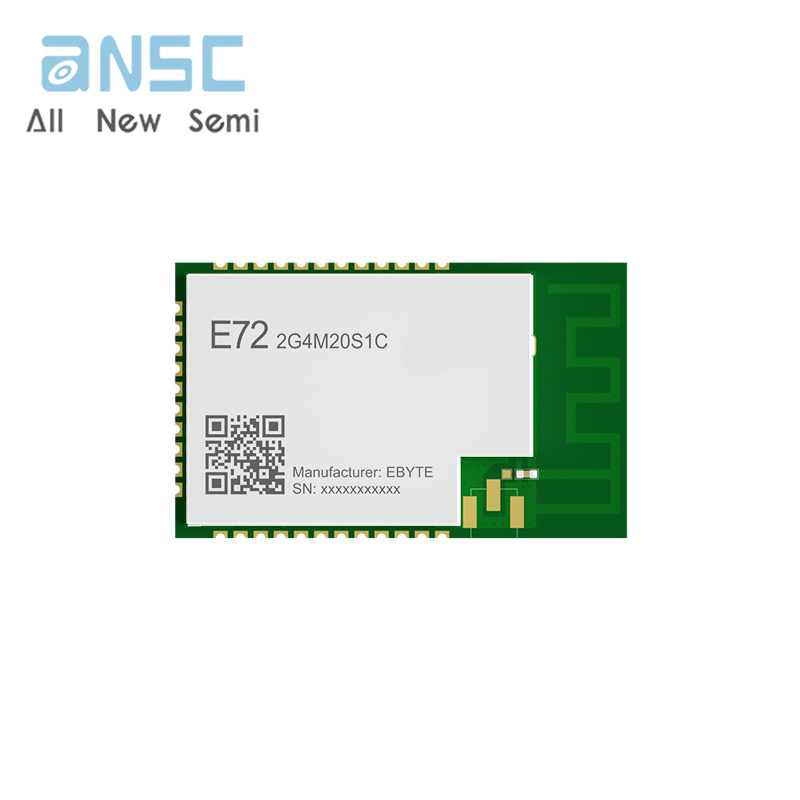

E72-2G4M20S1C is a multi-protocol 2.4GHz wireless chip on chip system module independently developed based on CC2674P10 produced by TI, with a transmission power of 20dBm. It integrates an ARM microcontroller and high-performance wireless transceiver internally, and uses an industrial grade 48MHz high-precision low-temperature drift crystal oscillator.

The module leads out all IO ports of the microcontroller, and the chip comes with a powerful 48 MHz Arm ® Cortex ®- M33 processor, internal integrated power amplifier, powerful peripherals, and up to 26 GPIOs allow for multi-dimensional development. CC2674P has great potential to become the preferred wireless microcontroller for future smart furniture, IoT transformation, and industrial automation.

As this module is a pure hardware SoC module, it requires users to program it before use.

Product Features

 Built-in high-performance low-power Arm ® Cortex ® - M33 processor with a clock speed of up to 48MHz;

 Rich resources, 1024KB FLASH, 256KB RAM;

 Support 1.9-3.8V power supply, with power supply greater than 3.3V ensuring optimal performance;

 Transmitting power of 20dBm;

 Under ideal conditions, the communication distance can reach 620m;

 The module includes a 48M high-speed crystal oscillator/32.768k low-speed crystal oscillator;

 Industrial grade standard design, supporting long-term use at -40~+85 ℃;

 2-pin cJTAG and JTAG debugging

 Wireless protocol: Thread, Zigbee ®， Bluetooth ® 5.3 Low Energy,

IEEE 802.15.4, 6LoWPAN, proprietary systems,

SimpleLink ™ TI 15.4-Stack (2.4 GHz),

Dynamic Multiprotocol Manager (DMM) driver

 Receiving sensitivity: -105 dBm for 802.15.4 (2.4 GHz), -104 dBm for Bluetooth 125-kbps (LE Coded PHY)

Product Applications

 Building automation

Building Security System - Motion Detectors, Electronic Intelligent Door Locks, Door and Window Sensors, Garage Door Systems, Gateways

HVAC - Thermostat, Wireless Environment, Sensors, HVAC System Controller, Gateway

Fire Safety System - Smoke and Temperature Detectors, Fire Alarm Control Panel (FACP)

Video surveillance - IP network camera

Elevators and escalators - elevator main, elevator and escalator control panel;

 Grid infrastructure

Smart electricity meters - water meters, gas meters, electricity meters, and heat cost allocators

Grid communication - wireless communication. Remote sensor application

Other alternative energy sources - energy collection

 Industrial transportation - asset tracking

 Factory automation and control

 Medical equipment

 Electronic Point of Sale (EPOS) - Electronic Shelves

 Label (ESL)

Product Specifications
